Switch Composition

Push Button

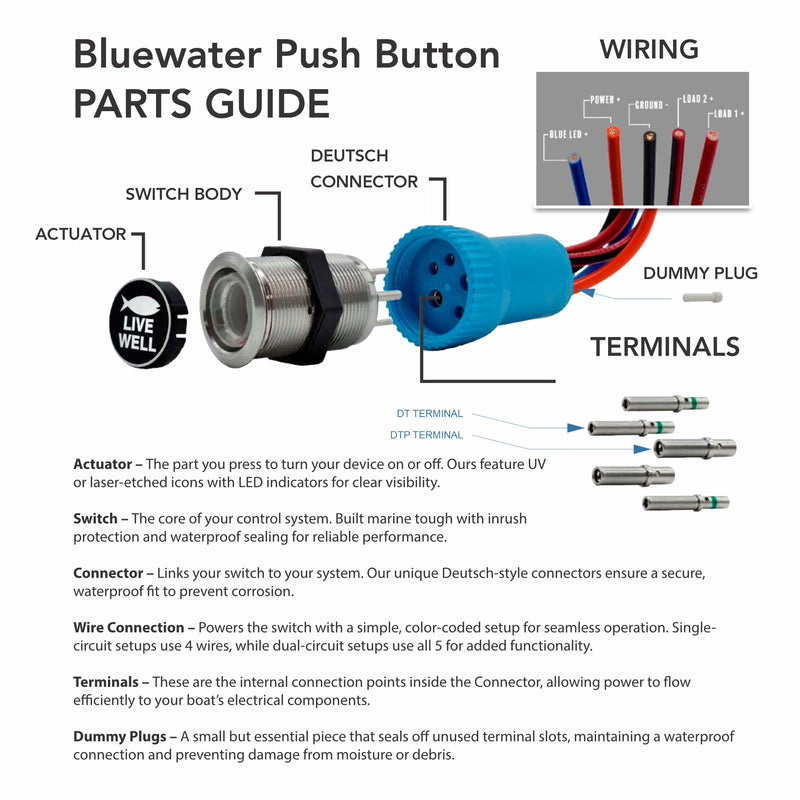

All Bluewater 19mm and 22mm switches use the same wiring diagram. Just the switch body and the connectors are different.
Switches & Parts
Pacer Orange 18 AWG UL Marine Wire 35 WUL18OR35

Orange Wire (Input)

Connect to a protected (+) 12-volt source. You can use a fuse or breaker box, or connect directly to a thermal breaker.
Pacer Red 18 AWG UL Marine Wire 35 WUL18RD35

Red Wire (Output)

Connect this wire to the desired accessory (load up to 20 amps): lights, pumps, etc.
Pacer Black 18 AWG UL Marine Wire 35 WUL18BK35

Black Wire (Ground)

Connect to a negative (-) source. You can use a distribution block or bus bar. NOTE: Without this wire connected, the switch won’t operate correctly.
Pacer Blue 12 AWG Primary Wire 25 WUL12BL25

Blue Wire (Illumination)

Connect this wire to the panel lights or anchor lights. When this wire receives power, the ring of the switch illuminates blue until the switch is pressed.

The Most Common Switches You’ll Use on a Boat

Rear view of the connector (back of the switch). See wiring diagram for switches with two functions.

Don't need the full switch?

Get just the parts you need to finish your project!

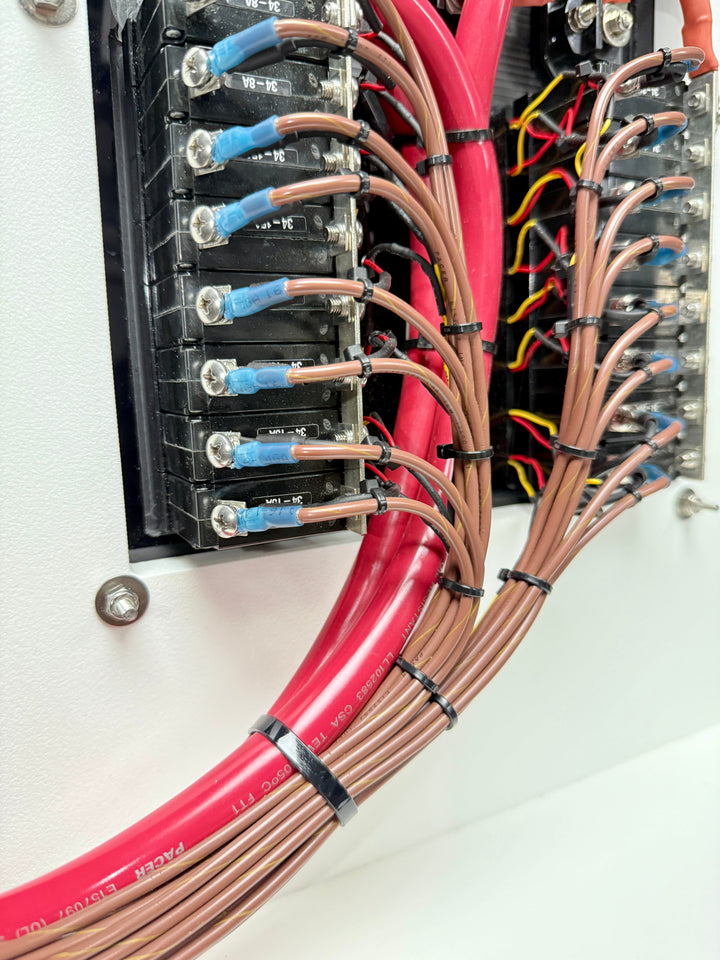

The Perfect guide

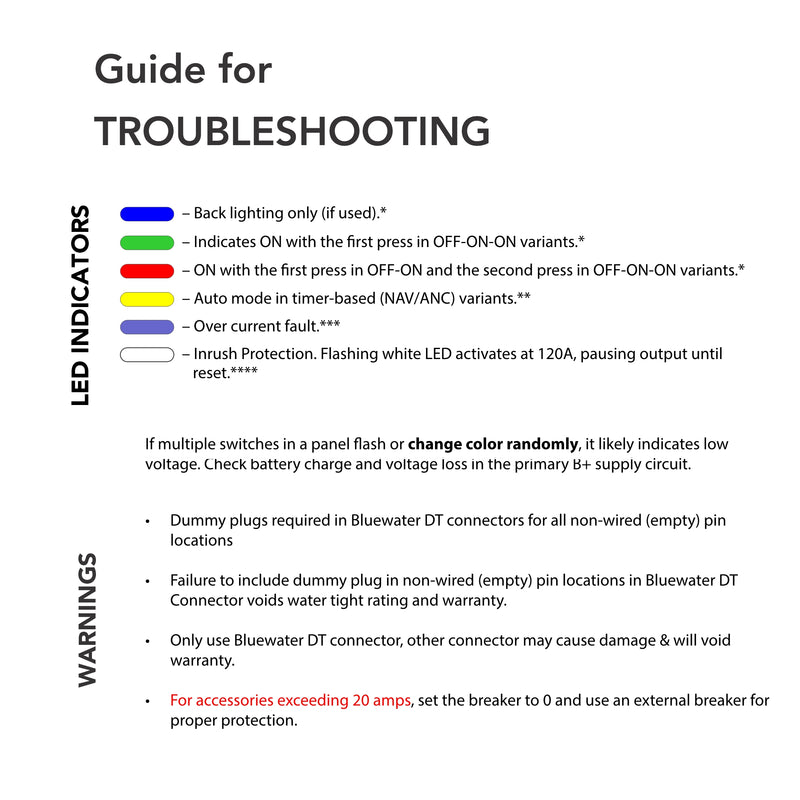

Troubleshooting

IMPORTANT SAFETY NOTICE


The following information is critical for understanding switch operation and what is happening in the electrical system. Before inspecting, testing, or modifying any wiring, always follow proper safety procedures in accordance with ABYC standards. De-energize circuits when possible, verify the absence of voltage with appropriate test equipment, and use properly rated tools and personal protective equipment (PPE) to protect yourself and the vessel. Failure to follow these practices may result in damage, injury, or fire.

If you still have questions about this product, you can chat with us via WhatApp.

Chat with Us

Using a voltmeter will be helpful.

Technical Note – Diagnostic Testing Power-probe style testers may not provide an accurate ground reference at the switch harness, which can lead to misinterpreting circuit behavior and delaying proper troubleshooting. For accurate diagnosis, ALWAYS VERIFY BOTH POWER AND GROUND AT THE SWITCH PLUG USING A PROPERLY RATED VOLTMETER (DMM) IN ACCORDANCE WITH ABYC ELECTRICAL PRACTICES.

Use the right part for your application

Bluewater 22mm Push Button Switch Off/On

Off/On Switch

Reliable Power Handling Rated for 20 amps on a single channel Rated for 10 amps per channel in dual-channel use. Impact resistant and designed for long-lasting performance. Full Switch Kit Included (36" Wire leads)

All Push Buttons
