Tinned Wire vs Bare Copper Wire on Boats

What Marine Grade Wire Actually Means

Marine grade wire is not just a nicer-looking version of automotive wire. It usually means three things working together: tinned conductors, fine stranding, and insulation rated for the environment.

• Tinned conductors.
  Every strand should be coated, not just the outside of the bundle. When you strip real marine wire, the conductor should look silver, not orange-pink.
• Fine stranding.
  Marine wire uses many small strands instead of a few thick ones. This helps the conductor survive vibration, flexing, and movement without breaking.
• Rated insulation.
  The jacket must tolerate oil, moisture, abrasion, heat, and engine-room temperatures. A common marine cable marking is UL 1426 / BC-5W2, with ratings such as 105°C dry and 75°C wet, depending on the cable spec.
• Correct application.
  The wire still has to be sized for the load, circuit length, acceptable voltage drop, and protection device. Tinned wire does not fix an undersized circuit.

Strip household wire and you usually see stiff bare copper. Strip automotive primary wire and you may see fewer, thicker strands. Strip true marine cable and you should see fine, flexible, silver-colored strands. That silver color is tin.

Why Salt Air Destroys Bare Copper

Oxidation and the Green Death

Copper is an excellent conductor. Copper corrosion products are not. When bare copper is exposed to salt air, moisture, oxygen, and chlorides, it begins to oxidize and form green corrosion. That corrosion increases resistance inside the circuit.

Higher resistance creates voltage drop. Voltage drop creates poor equipment performance. In some cases, heat builds at a poor connection, which accelerates the failure. This is why a chartplotter may reboot when a pump starts, why lights dim under load, or why a switch panel behaves unpredictably even when the battery tests fine.

Saltwater environments are aggressive because chloride contamination speeds corrosion. Add heat behind a console, vibration from the hull, and moisture from washdowns or condensation, and bare copper becomes a weak point in the system.

Capillary Wicking and How Corrosion Travels

Most boat owners assume that if the wire end is sealed, the rest of the cable is safe. That is not always true.

The tiny spaces between copper strands can pull moisture inside the insulation by capillary action. Once saltwater enters at a terminal, splice, nick, or damaged jacket, it can travel inches—or sometimes farther—under insulation that still looks intact.

That is what makes marine wiring problems so difficult to diagnose. The visible terminal may look acceptable, but the conductor inside the jacket may already be compromised. You can clean the connection, replace the fuse, and tighten the terminal, but the circuit still fails because the corrosion has moved upstream.

Tinned wire helps because each strand has a barrier between the copper and the environment. It does not make poor terminations acceptable, but it gives the conductor far better long-term protection.

Tinned Wire vs Bare Copper Side by Side

The extra cost of tinned wire is small compared with the labor required to troubleshoot and replace failed wiring later. On a boat, the wire is often the cheapest part of the system and the hardest part to reach after installation.

The Termination Paradox and Why Tinned Copper Crimps Better

Most guides say tinned wire resists corrosion. That is true, but it is not the whole story. The termination is where the system usually wins or loses.

A proper marine crimp is not just “squeezing a terminal.” It is a controlled mechanical connection. The right terminal, correct wire size, correct stripping length, correct die, and correct crimp pressure all matter. When done properly, the terminal barrel compresses around the conductor and creates a gas-tight connection that resists oxygen, moisture, and vibration.

Tin helps because it is softer than bare copper oxide layers. Under the right crimp pressure, the tinned strands deform and fill small voids between the conductor and the terminal barrel. That helps create a tighter connection.

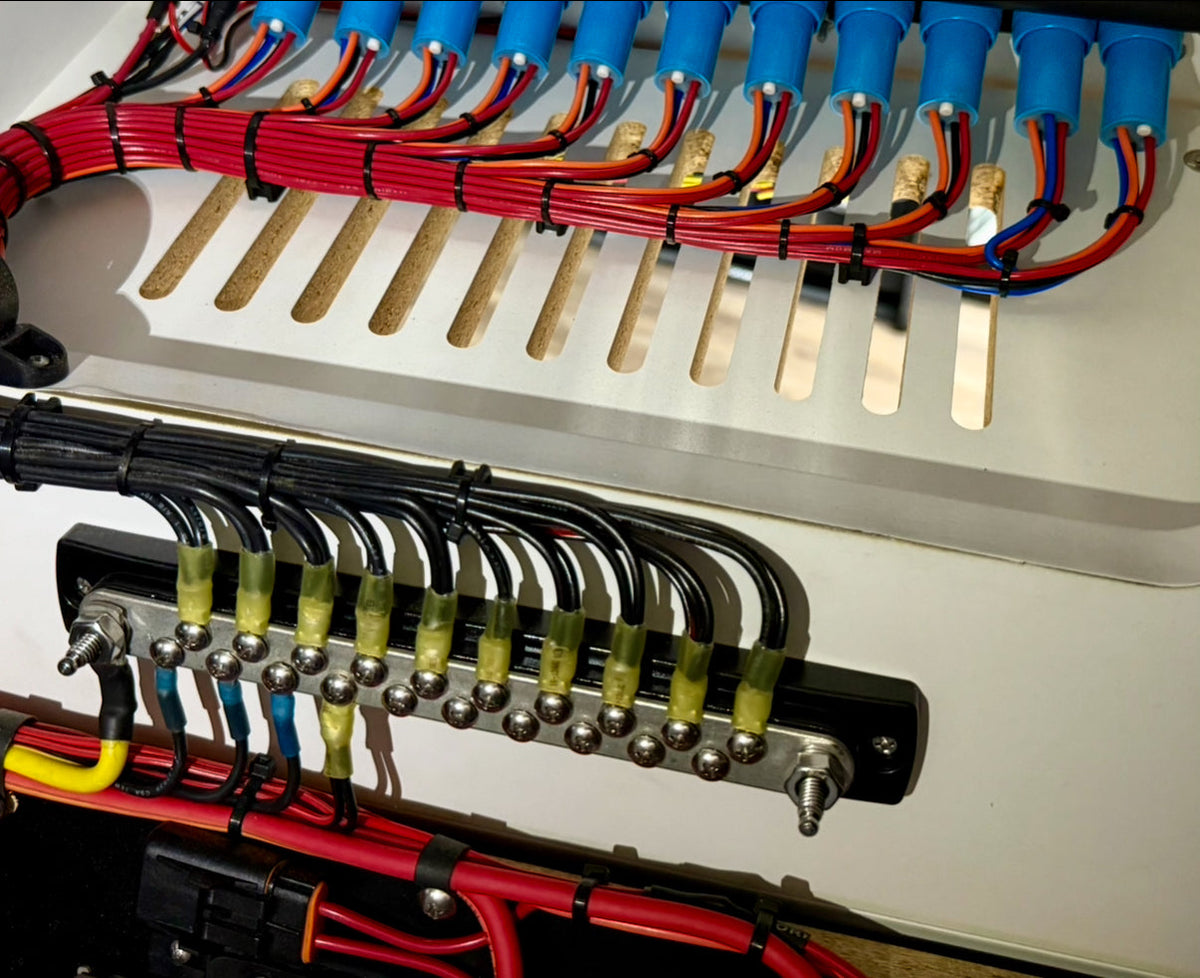

This is why high-quality marine harnesses use calibrated crimping tools, proper dies, adhesive-lined heat shrink, strain relief, and consistent process control. A beautiful dash panel can still fail if the harness behind it is built with the wrong wire or poor terminations.

For serviceable connections, sealed connectors such as Deutsch DT-style connectors can be a strong option when correctly specified. Many Deutsch DT configurations are designed for harsh environments and may offer IP67, IP68, or IP6K9K protection depending on the exact connector, seal, and rear protection used.

What ABYC E-11 Says About Marine Wire

ABYC E-11 is one of the key references for boat electrical systems. It covers important safety practices for DC and AC wiring, conductor sizing, overcurrent protection, support, routing, and installation.

One important point: ABYC guidance is a minimum safety framework, not the highest possible build standard. A wire can meet a minimum requirement and still not be the best choice for a long-term saltwater installation.

ABYC does not universally require tinned conductors in every application, but in real marine service, tinned copper is the professional choice for reliability. It gives better corrosion resistance and helps protect the investment in electronics, switch panels, dash panels, and control systems.

The Stranding Requirement Most Guides Skip

Stranding matters as much as tinning. A stiff wire made from a few large strands does not belong in a vibrating marine environment, even if the insulation looks acceptable.

Marine conductors are expected to use flexible stranding suitable for boat use. Fine stranding allows the wire to flex instead of cracking where it passes through a bulkhead, turns behind the console, enters a switch panel, or sits near an engine.

Tinning is the corrosion answer. Fine stranding is the vibration answer. Proper insulation is the heat and moisture answer. A true marine cable needs all three.

How to Tell If Your Boat Wire Is Tinned

1. Strip a short length.
   Silver-colored strands usually indicate tinned copper. Orange or pink copper usually indicates bare copper.
2. Check the cut end, not only the surface.
   Look at the cross-section of the conductor. The individual strands should be tinned, not just the outside of the bundle.
3. Flex it.
   Marine cable should feel more flexible than household wire or standard automotive wire of the same gauge because it uses finer stranding.
4. Read the jacket print.
   Look for markings such as UL 1426, BC-5W2, boat cable, tinned copper, voltage rating, and temperature rating.
5. Check temperature and wet rating.
   Many quality marine cables are marked for 105°C dry and 75°C wet, depending on the product specification. This matters in engine spaces and behind enclosed consoles.
6. Inspect old terminations.
   Green powder near a terminal, blackened strands, cracked insulation, or stiff wire under the jacket are signs that the harness deserves closer inspection.

Why Tin Works So Well in Marine Connections

Tin is not a better conductor than copper, and that is not why it is used. Copper still carries the current. The tin plating is extremely thin, so the current only passes through a very short layer of tin before reaching the copper conductor underneath.

The real advantage is what happens at the connection. Tin naturally forms a thin oxide layer, but that layer is brittle. When a properly sized terminal is crimped with the correct tool, the pressure cracks and displaces the tin oxide. The softer tin underneath deforms, fills microscopic gaps, and helps create a tight, gas-resistant connection between the conductor and the terminal barrel.

That is why tinned copper performs so well in marine wiring. It protects the copper from salt, moisture, and oxygen, while also helping the crimped connection stay tighter and more stable under vibration. On a boat, that combination matters more than the tiny difference in conductivity between tin and bare copper.

The Cost of Failure Over Five Years

Imagine saving a few hundred dollars by wiring a 25-foot center console with bare copper or low-grade wire. At first, everything works. The lights come on, the pumps run, the chartplotter powers up, and the switch panel looks fine.

A few seasons later, the problems start. A pump runs slowly. The MFD reboots when another load turns on. A switch works only when pushed a certain way. A breaker trips, but the circuit does not show an obvious short. The issue is not one failed device. It is corrosion, voltage drop, and poor terminations spread across the harness.

Now the repair is expensive. A marine technician has to remove panels, trace circuits, test voltage under load, inspect terminations, and replace wiring that may be hidden behind the console or under deck panels. The labor quickly costs more than the wire you saved money on.

Good marine wiring is not expensive compared with the cost of finding and fixing failures later. Tinned copper, sealed terminals, correct circuit protection, and clean harness routing are cheaper over the life of the boat.

Where Tinned Wire Matters Most on a Modern Boat

Every circuit benefits from tinned marine wire, but some areas punish poor wiring faster than others.

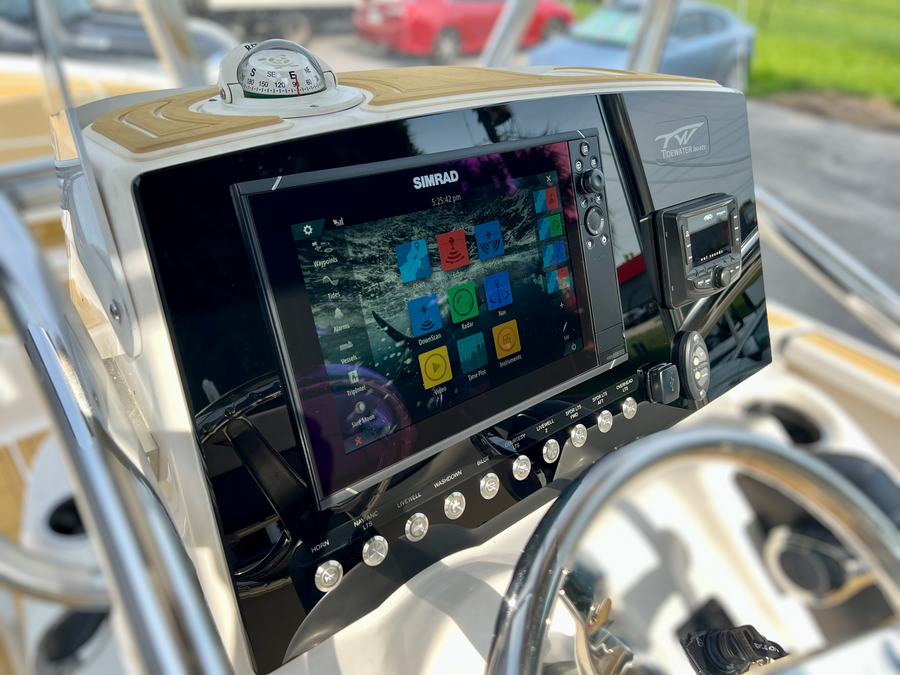

• Dash and helm.
  The helm has electronics, switches, gauges, USB chargers, lighting controls, audio controls, and navigation equipment all sharing limited space. Moisture and condensation behind the console make this area especially vulnerable.
• Switch panels.
  Every rocker switch, actuator, breaker, and terminal is a potential failure point. A professional switch panel should use tinned wire, correct terminals, proper strain relief, and clean labeling.
• Bilge and engine bay.
  These areas combine moisture, heat, vibration, oil exposure, and limited access. Bare copper and unsealed connections fail quickly here.
• Electronics and NMEA networks.
  Networked equipment depends on stable voltage and clean connections. A voltage drop problem can look like a software or electronics issue when the real cause is wiring.
• Removable panels and service points.
  When a panel may need to be removed for service, sealed multi-pin connectors such as Deutsch-style connectors can make the system cleaner and easier to maintain, as long as they are correctly rated and installed.

Pair tinned conductors with adhesive-lined heat-shrink terminals, sealed connectors where appropriate, correct fuse or breaker protection, and proper wire support. That is what separates a one-season installation from a long-term marine system.

Coast Guard and ABYC-Style Installation Considerations

Marine wiring is not only about choosing tinned copper. The installation also has to consider ignition protection, overcurrent protection, battery security, conductor support, abrasion protection, and proper routing. A good harness uses the right wire, but it also protects that wire from heat, vibration, chafe, fuel spaces, and unprotected overloads.
