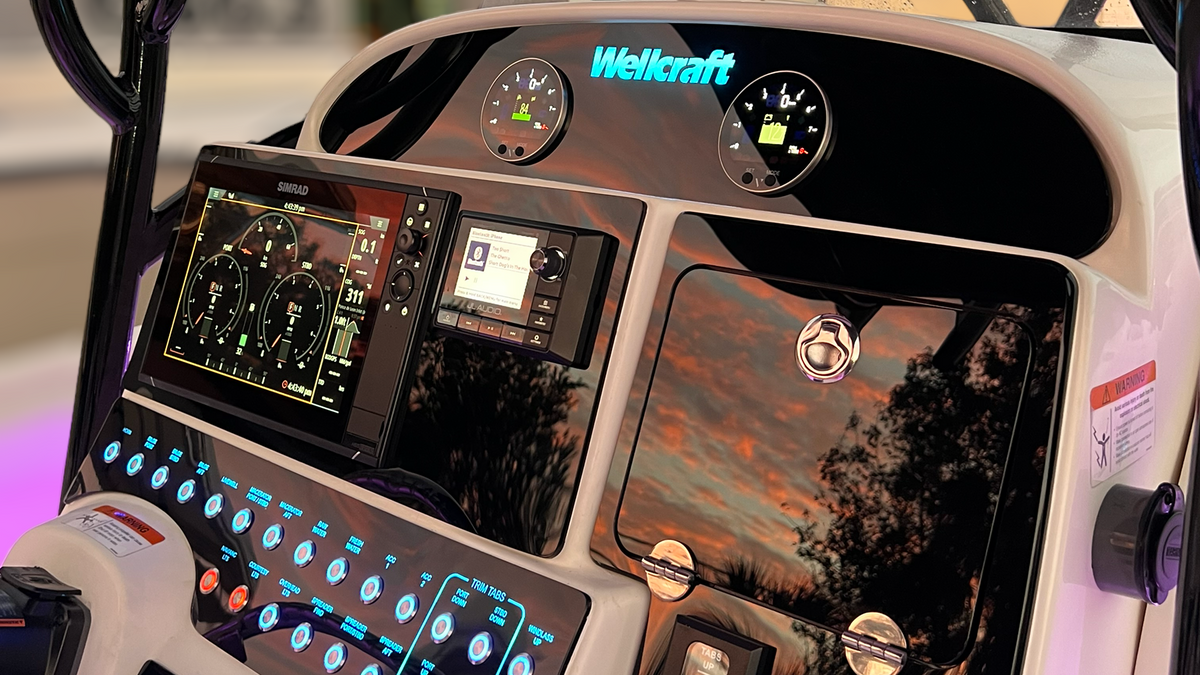

How to Choose a Boat Instrument Panel

Why Factory Instrument Panels Fail

Stock panels are usually built to meet a production cost target, not to support every way the boat may be used after purchase. Once a boat leaves the factory, its helm often evolves in different directions. Some owners focus on entertainment, with louder audio systems, lighting, and sandbar-ready accessories. Others focus on fishing and navigation, adding electronics, sonar, gauges, and instruments the factory layout was never designed to carry.

• No room left for upgrades. Every gauge or electronic component you add requires space the original panel may not have. Each new opening also removes structure from a panel that was never designed for that load.
• Faded or missing labels. Printed legends often break down under UV exposure. On an instrument panel, this matters because a gauge without a clear label can become a number without context.
• Mismatched finishes. When a helm is rebuilt piece by piece over several years, the result often looks like an assembly of replacement parts instead of a unified dash. Mismatched bezels, switch styles, and panel finishes are immediately noticeable.
• Corrosion around cutouts. Openings that were not properly sealed allow moisture behind the panel. Gauges are especially sensitive to this because failure often starts gradually, showing up as inaccurate or unstable readings before the instrument stops working completely.

Standard Marine Gauge Sizes

Marine gauges are built to a small set of common diameters, which is good news. It means most panels are made from a handful of repeated openings rather than from custom dimensions.

Two things are worth watching closely. The nominal size refers to the mounting hole, not the bezel, and the bezel is always larger. Also, 2-inch and 2 1/16-inch gauges are both commonly described as 52 mm, even though they are not identical. Always confirm the actual cutout dimension from the gauge manufacturer rather than relying on the label.

If you are reusing existing gauges, measure the mounting hole in the old panel rather than the gauge face. That measurement is the one that must be reproduced.

Check the Depth Before You Check Anything Else

A gauge that fits the opening perfectly can still be impossible to install. Most marine gauges need between two and three inches of clearance behind the panel for the body, the terminals, and the wiring loom that has to bend away from them.

Before finalizing any layout, remove the old panel and inspect what lives behind it. Wiring runs, steering hardware, structural stringers, and the back of the console itself can all limit where an opening can go. Measure the available depth at each proposed position rather than at a single point, because consoles are rarely flat behind the panel.

This is the single most common reason a well-measured instrument panel cannot be installed as designed. The face was right. The space behind it was never checked.

Blank Switch Panels Versus Fully Custom Dashes

A blank switch panel solves a switch layout problem; a fully custom dash solves the entire helm layout.

What to Check Before You Buy

• Marine-rated plastic substrate. Cast acrylic and other marine-grade plastics resist UV exposure, moisture, heat, and saltwater conditions better than general-purpose plastics. Learn more in our guide to boat dash panel material.
• Precision-cut openings. Loose tolerances leave gaps around the bezels. On gauges, that creates both a water path and a cosmetic issue you cannot correct after the fact.
• Enough thickness for the span. The panel must support the weight of every gauge without flexing underway. Wide panels with several large openings need more thickness than narrow panels with smaller gauges.
• Etched legends and backlighting. Etched text is cut into the material rather than applied to it, so there is nothing to peel. If you run at night, confirm backlighting compatibility before you order, since opaque substrates cannot carry it at all. Both topics are covered in depth in our switch panel spec guide, and the same rules apply to instrument panels.
• A finish that matches your gauges. Bezel finishes vary by gauge brand and generation. If you are mixing old and new instruments, compare them side by side before choosing a panel finish.

Fitting the Panel

1. Template before you cut. Capture the dash shape using cardboard or clear plastic film. Trace the existing panel with a permanent marker, then cut away the excess material to create a clean physical template. This template helps our project managers move faster during the design process and reduces the risk of shape, curve, or alignment errors. Review every gauge, switch, actuator, display, and fastener position before the panel is cut. A layout can look correct on screen but still create issues if a bezel overlaps another component, a switch sits too close to an edge, or a display does not have enough clearance behind the dash. Confirm the function of every opening and make sure the layout matches how the helm will actually be used underway.
2. Dry fit everything. Before final mounting, test-fit every gauge, switch, actuator, display, and accessory in the panel. Each bezel should sit flat against the face of the panel without bridging an undersized opening or covering an oversized one. This is the best time to catch fitment issues, because adjustments are much easier before the panel is fully wired, sealed, and mounted.
3. Check clearance behind the dash. A component can fit perfectly from the front and still fail from the back. Gauges, displays, switches, harnesses, and connectors all need depth and room for wiring to bend naturally. Check for steering hardware, console structure, existing wiring runs, and anything else that could interfere before final installation.
4. Seal every cutout. Use marine sealant (3M 4200 or 5200, depending on the application) around openings where needed, especially in areas exposed to water spray, washdowns, or moisture. Precision-cut openings reduce visible gaps, but sealant helps prevent water from getting behind the panel and reaching the instruments, switches, or wiring. Most new marine electronics include their own sealing gasket, so you usually do not need to apply sealant behind a tach gauge, instrument, or MFD. The sealant is typically applied between the panel and the console to help keep water from getting behind the dash.
5. Label and photograph. Label wiring as you go, and take clear photos of the back of the panel before final mounting. A clean reference photo can save hours later if you need to troubleshoot, replace a gauge, add an accessory, or service a circuit. What feels obvious during installation is easy to forget months later.

What to Send When You Request a Quote

A complete first message helps us move from a general estimate to a real quote much faster. The more accurate information you send upfront, the easier it is for our project managers to confirm fit, review the layout, and avoid unnecessary back-and-forth.

Please include:

• Customer first name, last name, and email address. This allows us to identify your request, contact you with questions, and send updates or quote details to the right person.
• Boat make, model, and year. This helps us identify the hull, console style, and whether we already have a similar dash pattern on file.
• Clear helm photos. Send photos straight on, from the side, and from a wider angle with the panel in place. Photos help us understand the dash shape, surrounding console, fastener locations, gauges, switches, and available space.
• Existing panel measurements or a physical template. Provide overall width, height, corner radius if possible, and key reference points. If the shape is irregular, a cardboard or clear plastic film template with a ruler in frame is extremely helpful.
• A complete equipment list. Include every gauge, switch, actuator, display, MFD, radio, or accessory going into the new layout. Also mention any future upgrades you want the panel to allow for.
• Brand, model, and cutout dimensions. For each gauge or display, send the manufacturer, exact model, and required cutout size. Nominal sizes are useful, but the manufacturer’s cutout specification is what matters for production.
• Available depth behind the panel. Measure the shallowest point behind the dash, not just the deepest area. Gauge bodies, MFD backs, connectors, harnesses, and steering hardware all need clearance.
• Preferred finish and mounting style. Let us know your preferred material finish, backlighting needs, visible fasteners, hidden studs, or any special installation preference.

If you are not sure about a dimension, say so instead of guessing. An approximate number labeled as approximate is useful. An approximate number labeled as exact can cost a panel.
