How to Choose the Right Boat Dash Panel Material

Start With a Failure Audit

Before choosing a new dash panel material, look closely at how the current panel failed. The failure mode tells you what the replacement panel actually needs to solve.

• Fine cracks around screws or cutouts.
  This usually points to stress, age, overtightened fasteners, harsh cleaners, or a material that was not ideal for the load.
• Warping or bowing through the middle.
  The panel may be too thin, mounted too tightly, or made from a material that expanded in heat with nowhere to move.
• Flex when you press a switch.
  The panel may not be thick enough for its span, or too many openings may have removed the structure that kept it rigid.
• Labels peeling, fading, or disappearing.
  This is usually a labeling problem, not a panel problem. Vinyl labels and printed markings often fail under UV, salt, cleaning, and daily use.
• Water intrusion around openings.
  Poorly fitted cutouts, missing gaskets, or improper sealing can allow moisture behind the dash, affecting gauges, switches, connectors, and wiring.

Two panels can fail for completely different reasons. Diagnosing yours first helps prevent repeating the same mistake in a better-looking material.

Marine Plastic Dash Panel Materials Compared

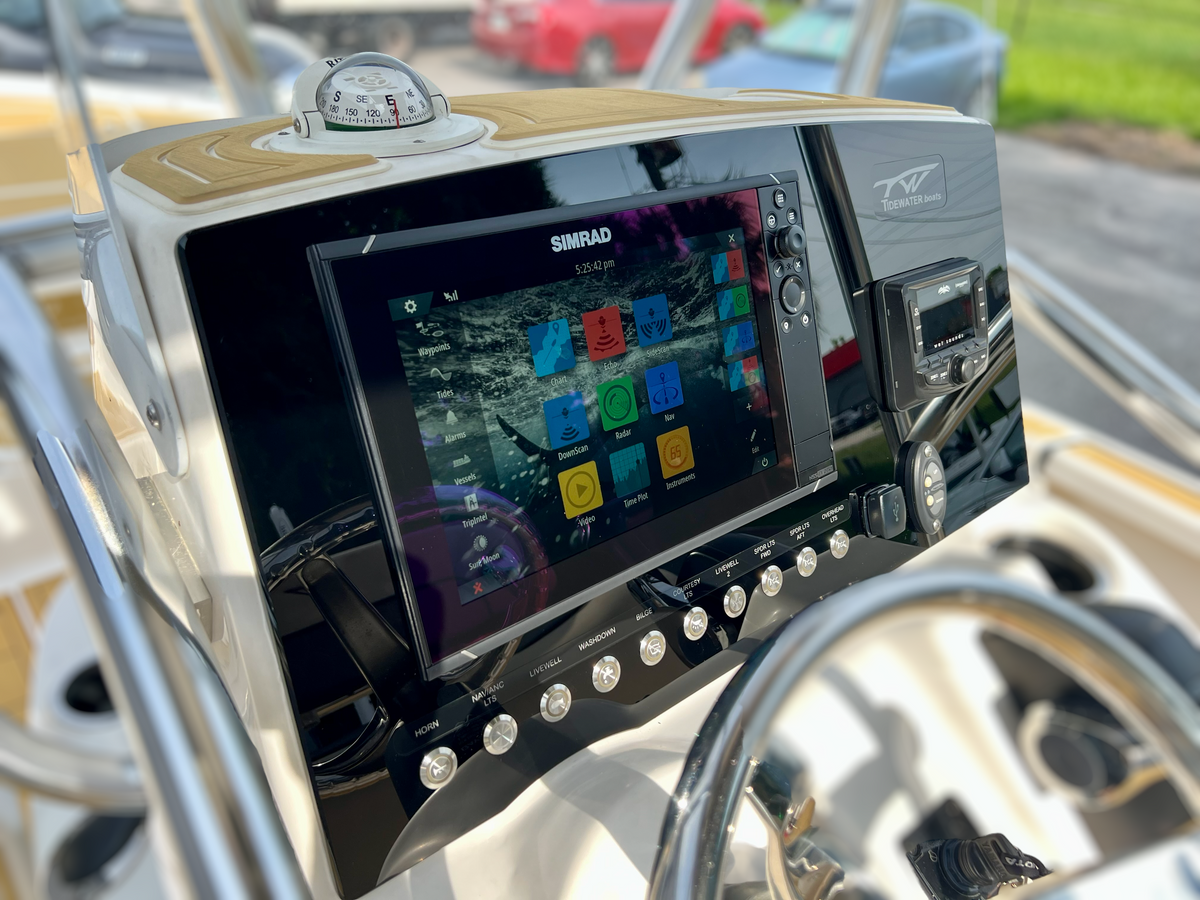

Cast Acrylic, the Premium Dash Panel Choice

Cast acrylic is the best choice when the goal is a clean, modern helm with a premium finish. It machines cleanly, supports precise CNC-cut openings, and works especially well for custom dash panels, instrument layouts, switch integration, laser-etched legends, and backlighting options.

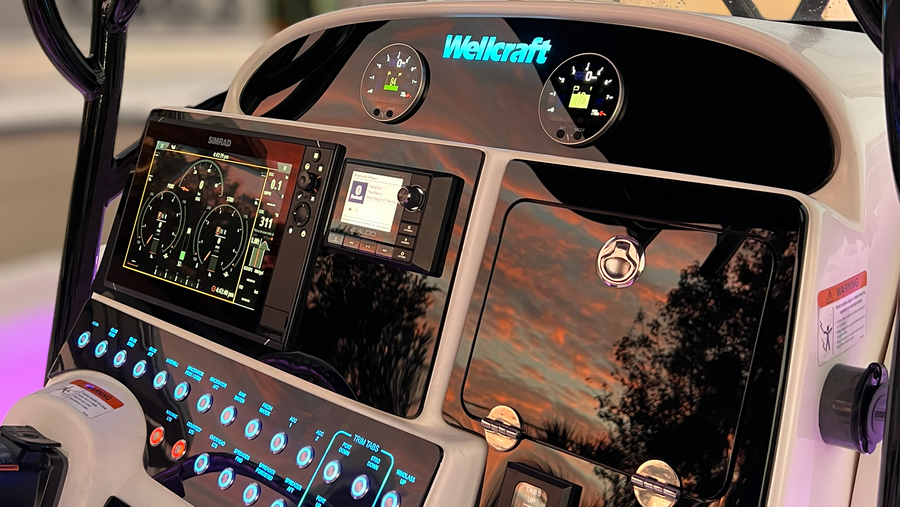

For many refits, cast acrylic gives an older boat the updated helm appearance owners are looking for when they install new MFDs, gauges, switches, audio controls, and accessories. It can create the clean “glass cockpit” look often seen on newer boats without replacing the entire console.

Cast acrylic also performs well in marine environments when it is selected, cut, mounted, and maintained correctly. It resists moisture, supports clean edge finishing, and allows for crisp detailing that looks integrated into the panel rather than added later.

The main rule is cleaning. Avoid ammonia-based glass cleaners, harsh solvents, and abrasive products. These can damage the surface or contribute to crazing over time. Mild soap and water should be the standard cleaning method, and anyone maintaining the boat should know that rule.

HDPE, the Utility Plastic Choice

HDPE-style marine plastic is a practical option when impact resistance and low maintenance matter more than a high-end visual finish. It is commonly used in the marine industry because it resists moisture, handles abuse well, and does not require painting, coating, or sealing.

This material makes sense for workboat applications, utility panels, storage areas, simple switch panels, and locations where function matters more than a premium dash appearance. It hides wear better than glossy materials and is forgiving in tough environments.

The tradeoff is movement. HDPE expands and contracts more than cast acrylic, especially in heat. A wide panel can grow noticeably on a hot deck or under direct sun. If it is mounted with tight screw holes and no room to move, that expansion can cause bowing or stress over time.

HDPE does not usually fail because it is weak. It fails when it is treated like a material that does not move. If HDPE is used, the mounting method has to allow for expansion.

General-Purpose Plastics Are Not the Same Thing

Not every plastic sheet belongs on a boat dash. General-purpose plastics may be cheaper, but they are not always designed for long-term UV exposure, marine moisture, heat cycles, vibration, or the structural demands of gauges and electronics.

A dash panel has to do more than cover a hole. It has to support equipment, hold cutouts cleanly, resist flex, maintain its finish, and keep the helm looking professional after years of use. A low-grade plastic may save money upfront but can quickly create the same problems you were trying to fix: fading, cracking, warping, weak edges, poor cut quality, and fastener stress.

For a serious helm upgrade, marine-grade plastic selection matters.

Thickness and Mounting

Material choice affects the look of the panel, but thickness and mounting determine how well it performs over time. Our available thicknesses include 1/8", 3/16", 1/4", 3/8", and 1/2", available in High Gloss and Matte Black finishes depending on the project. Thinner panels are best for smaller face-mounted layouts, while thicker panels are recommended for wider spans, heavier electronics, multiple cutouts, or clean-face designs with hidden studs. The right thickness is chosen based on the panel size, equipment load, mounting method, and how the helm will be used.

Face Mount Versus Stud Mount

A face-mounted panel uses visible fasteners through the front of the panel, making it simple, strong, and easy to service. A stud-mounted panel hides the hardware behind the dash for a cleaner, more premium look, but it requires the right material thickness, bonding area, and planning. If you want a clean face with hidden studs, that choice should be made early before the material and layout are finalized.

Thickness Depends on Span and Cutouts

Thickness should be selected based on the panel size, number of cutouts, component weight, and mounting method. A small switch panel does not need the same support as a wide dash carrying gauges, controls, and a large MFD. Every cutout removes structure, so thicker material may be needed to reduce flex, support the layout, and keep the panel stable underway.

The Expansion Rule for HDPE

If you choose HDPE-style marine plastic, the mounting holes should allow the material to move. The panel should not be locked down so tightly that expansion has nowhere to go.

In practical terms, that means using oversized mounting holes where appropriate, allowing fasteners to hold the panel without trapping it, and avoiding installation methods that force the material to stay fixed across a wide span. The goal is to let the panel expand and contract without bowing.

This one detail is the difference between an HDPE panel that stays flat and one that starts to move in its first hot season.

Measure and Template Before You Order

Most panels that arrive wrong were measured wrong, not cut wrong. Spend the time here before production.

1. Remove or expose the old panel.
   Do not rely only on visible dimensions if trim, bezels, or fasteners are hiding the true shape.
2. Create a physical template.
   Use cardboard or clear plastic film to capture the dash shape. Trace the existing panel with a permanent marker, then cut away the excess material. A physical template catches curves and asymmetry that a list of dimensions can miss.
3. Use manufacturer cutout dimensions.
   Work from the official cutout specs for each gauge, MFD, switch, or accessory. Do not measure only the bezel. The bezel and cutout are not the same number.
4. Check clearance behind the dash.
   Displays, gauges, switches, connectors, harnesses, steering hardware, and console structure can all limit where components can go.
5. Photograph everything.
   Send straight-on photos, side photos, and wider helm photos. A photo with a ruler or tape measure in frame can help confirm scale and reduce assumptions.

If your boat is not already on file, a physical template, accurate measurements, and clear photos help our project managers move faster through the design process. When needed, an on-site 2D or 3D scan may be used to capture the dash shape more accurately.

Before anything goes to production, you will receive a formal 2D drawing for review and approval.

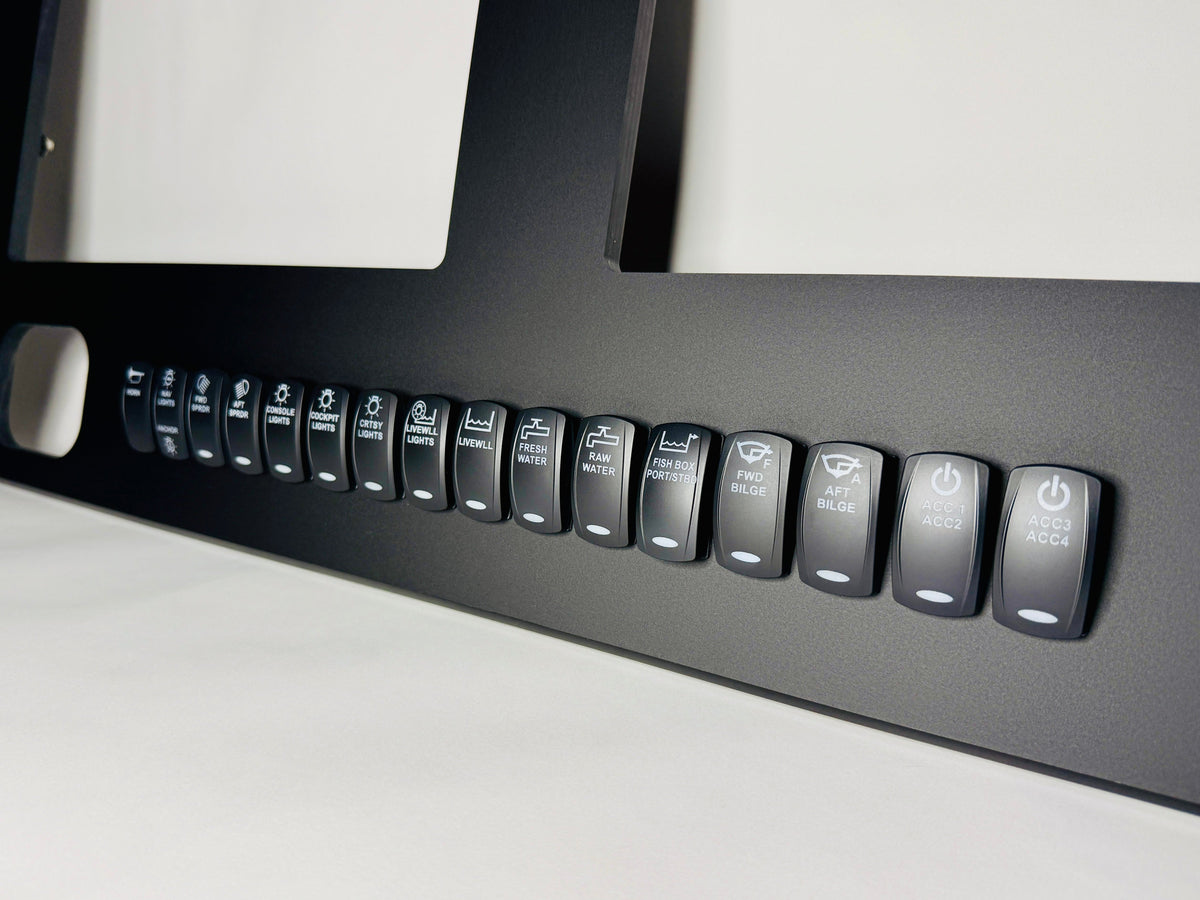

Why Laser-Etched Labels Outlast Printed Labels

Switch and dash labeling is often the part of a helm upgrade owners think about last and regret first. Printed markings, vinyl labels, and stickers may look fine at installation, but they are exposed to sun, salt, cleaning, moisture, and repeated touch.

Over time, printed or applied labels can fade, peel, crack, or wear away. Once that happens, the panel may still function, but the helm looks tired and operation becomes less intuitive.

Laser etching solves that problem by marking the material itself instead of applying ink or vinyl on top of it. On compatible acrylic materials, laser-etched legends stay sharp, clean, and professional for years. There is nothing to peel because the marking is integrated into the panel.

If a premium dash finish matters, the labeling method matters as much as the material.
