Bluewater 22mm Resettable Push Button Switch Off/(On) Momentary Switch

Rugged 22mm resettable push button switch built for marine and industrial use. Constructed from 316 stainless steel with a seamless IP69K housing, it withstands high-pressure washdowns, salt exposure, and vibration up to 20g.

Key Specs:

• Integrated resettable breaker (7 selectable trip ratings)

• Max Load: 20A DC @ 12–24 VDC

• Illumination: Dual “DayBright” LEDs (blue/red) — daylight visible with blue ring backlight when off

• Protection: Output backfeed blocking + moisture weep holes

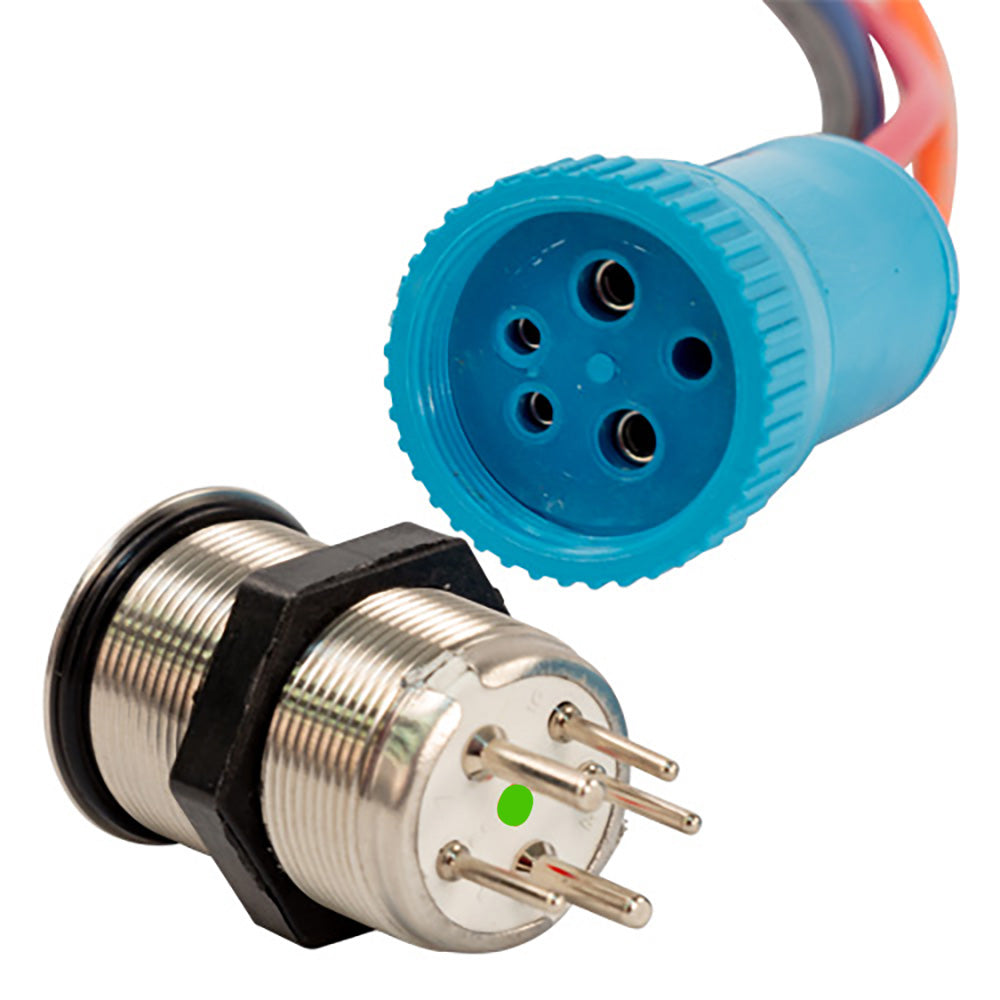

• Connection: Quick-connect plug for fast hot-swap installation

• Operating Temp: −40 °C to +85 °C

Notes:

1. DayBright LEDs are brighter than standard models — mixing may cause brightness variance.

2. Dual-output versions maintain full trip rating per channel.

Compact, serviceable, and built for reliability — the Bluewater 22mm Resettable switch delivers clear visibility, integrated circuit protection, and proven performance in harsh environments.

Features:

• 36" Wire Leads (Harness Length)

Specifications:

• Function: Off / (On) (Momentary Switch)
• Off/On: Blue/Red
• Dot Color: Green
• Switch Rating: 15A /12 – 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Switch Wiring

• Orange – Positive Input 15A Max Fuse Protection
• Red – Positive Output 15A Max
• Black – Negative
• Blue – Backlight (Blue Color)

Installation

Drill a 22mm hole into any material up to 6mm thick. Connect the 2 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.
