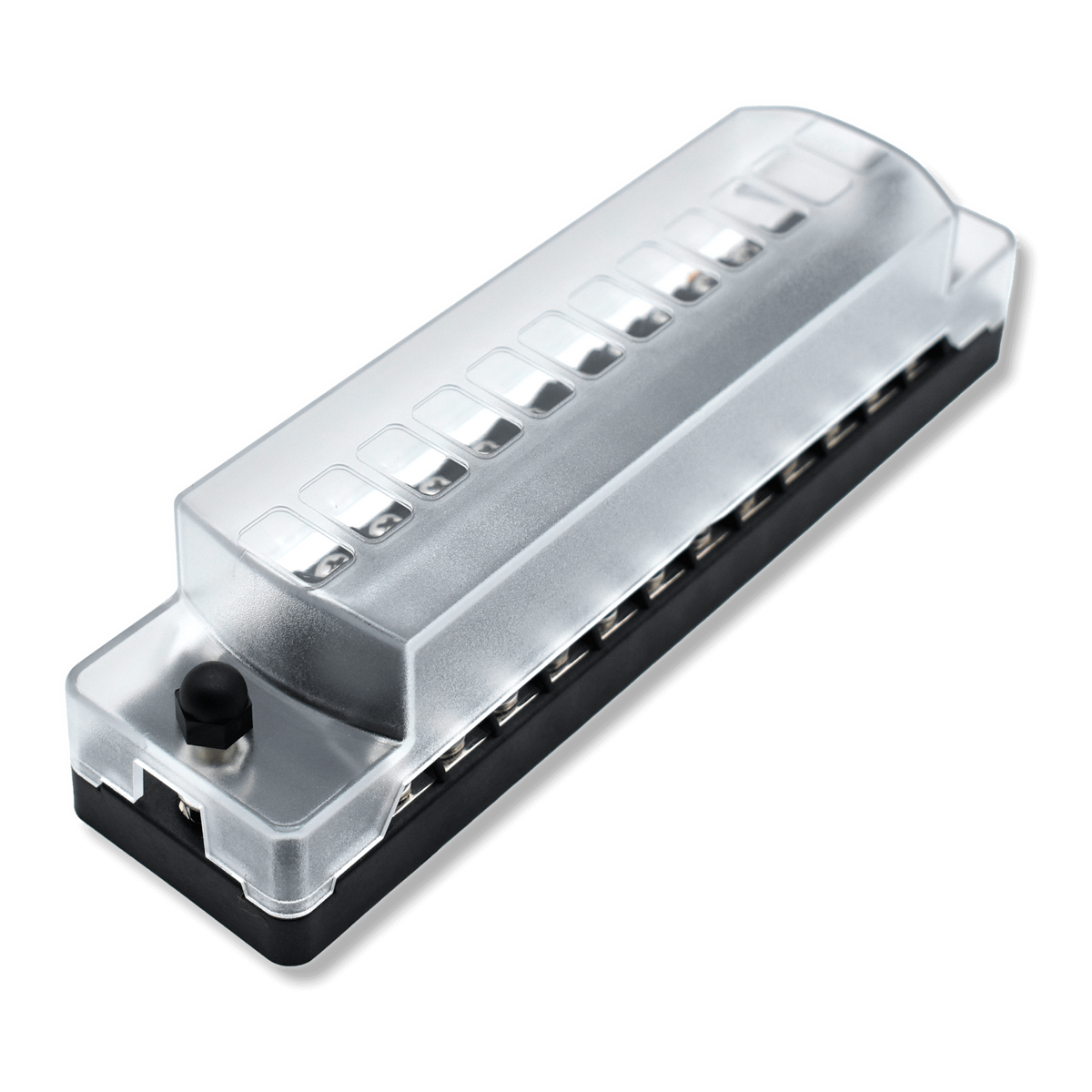

Bluewater 12-position ATC fuse block with ground bar and translucent protective cover

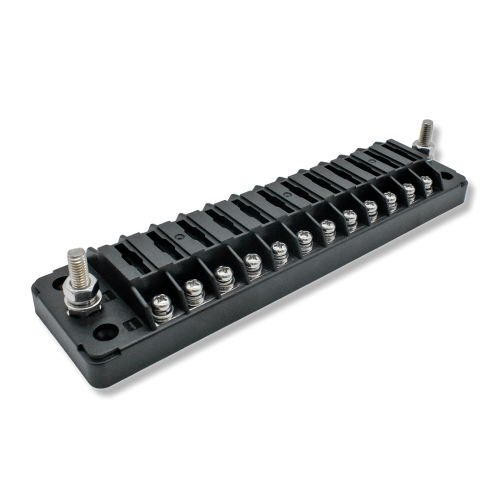

Bluewater 12-position ATC fuse block, angled view showing 12 terminal screws, two studs and mounting holes.

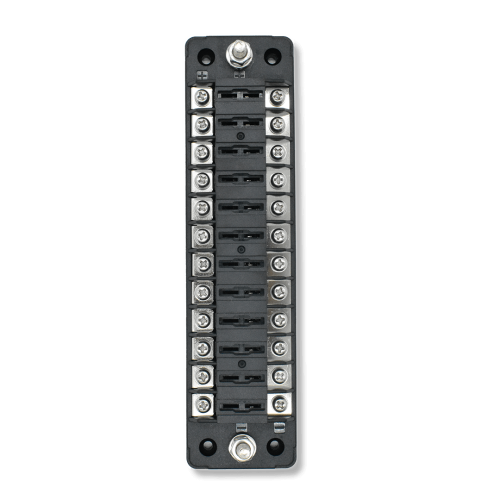

Front view of 12-position ATC fuse block showing screw terminals, fuse slots and power/ground studs

1 / 3

Bluewater 12 Position ATC Fuse Block w/ Ground Bar

Regular price: $37.99
Sale price: $37.99
Regular price: ~~$44.99~~

12 Position ATC Fuse Block

Product variants:

SKU: 225D-3200-1101-012

Availability

In Stock Orders by 1PM EST ship today!

Shipping calculated at checkout.

Shipping

Free ShippingOn Qualified Orders Over $150

Support

Talk to a Project Manager(407) 543-8691

60-Day Returns30 days on electronics

Secure PaymentsSafe & encrypted checkout

Tech SupportHonest Expert Advice

Description Overview, benefits and key product details. View full product details

This 12 circuit ATC - style breaker block is built for larger systems that require clean, resettable circuit protection without the hassle of fuses. It supports up to 12 circuits, each rated for 30A, with a total input capacity of 100A, making it ideal for boats, RVs, off-grid power setups and custom vehicles.

Designed to accept standard ATO or ATC resettable breakers, this panel uses M6 threaded studs for the main power input and M4 studs for the outputs, ensuring reliable, corrosion-resistant connections. Constructed from stainless steel, nickel-plated copper, and polycarbonate, it’s engineered to handle tough environments while keeping your wiring safe and organized.

The 12 circuit fuse block mounts easily with M5 connecting studs and 0.1695” holes, spaced at 3.43” high by 1.25” wide. Whether you’re expanding your system or upgrading from a traditional fuse panel, this breaker block delivers centralized, professional-grade protection in a compact, serviceable format.

Specifications:

Max Voltage: 48V DC
Input Current: 100A
Fuse Type: ATO or ATC
Input Terminal Rating: M6 Threaded Studs (100A max)
Output Terminal Rating: M4 Threaded Studs (30A max)
Material: Stainless Steel/ Nickel-plated Copper/ Polycarbonate

Installation:

M5 main connecting studs
Mounting Holes: 0.1695”
Distance Between Mounting Holes:

6.875” H / 1.25” W
