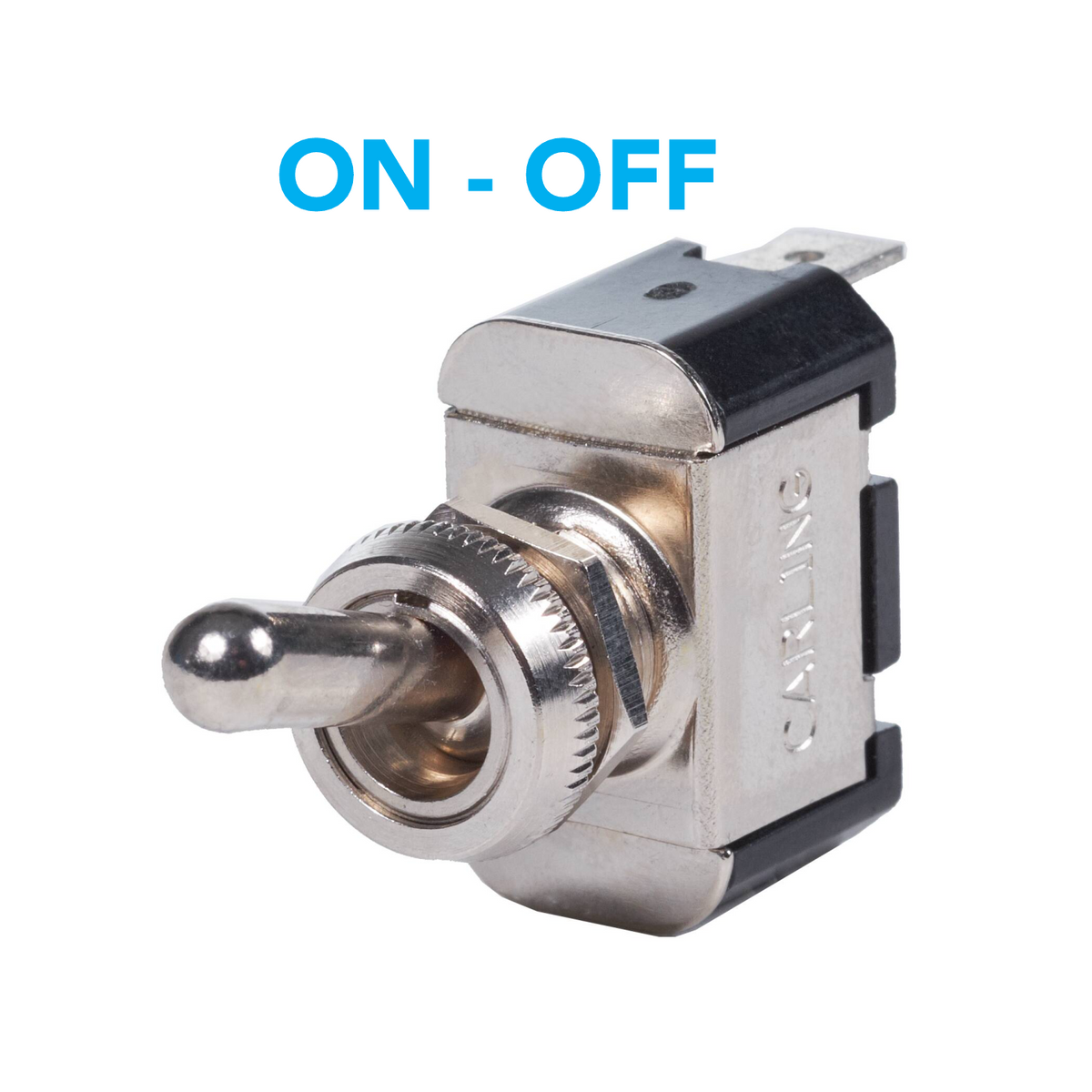

Toggle Switch SPST - ON-OFF

The Toggle Switch SPST - ON-OFF provides simple, reliable control for marine lighting and other single-circuit applications. Its maintained OFF-ON action keeps the switch in the selected position until it is manually changed.

Designed with a single pole, single throw configuration and two quick-connect terminals, this toggle switch offers straightforward installation and dependable circuit control for appropriately rated applications.

Maintained vs. Momentary Switches

• Maintained: Stays in the selected "On" or "Off" position until you flip it back.
• Momentary (indicated by parentheses like (On)): Returns to its default position via a spring as soon as you let go; used for temporary actions like horns or starter buttons.

Common Configurations

• SPST (Single Pole, Single Throw): A simple On/Off switch with two terminals.
• SPDT (Single Pole, Double Throw): A three-terminal switch that can alternate power between two different circuits or accessories.
• On/Off/On: A three-position switch often used to run a dual-speed water pump or select between two different feed sources.

Simple ON-OFF Circuit Control

The SPST configuration is suited to applications where one circuit needs straightforward ON-OFF control. With its maintained OFF-ON action, the switch remains in the selected position until manually changed.

Quick-Connect Terminals

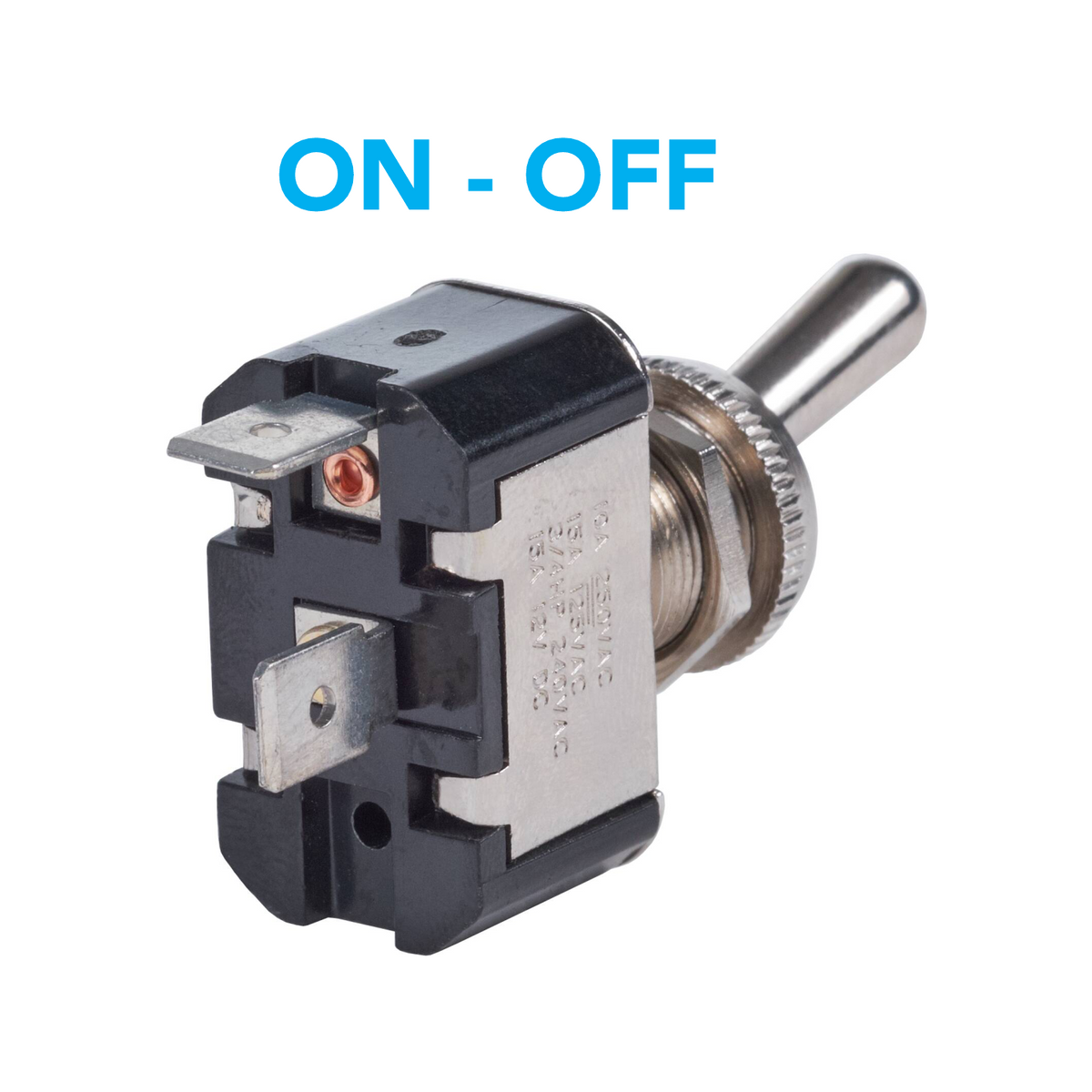

Two 0.25-inch (6.35 mm) quick-connect tabs provide a simple connection point for compatible wiring. The switch is designed for applications within its specified electrical ratings and should be used with appropriately sized fuses and wire.

Specifications

Electrical Compatibility

The switch is rated for up to 15A at 12V DC and 125V AC, and up to 10A at 250V AC. Maximum amperage ratings depend on using appropriately sized fuses and wire for the specific application.
