How to Choose a Marine Electronics Installer

There is a major difference between wiring a car audio system and engineering a marine electronics network. A 12V generalist may understand positive, negative, and basic fuse protection, but modern boats require much more than that. Today’s systems may include NMEA 2000 networks, radar, sonar, autopilot, engine gateways, battery monitoring, digital switching, VHF/AIS, Starlink, and multiple displays sharing data.

Certification from the National Marine Electronics Association (NMEA) and the American Boat and Yacht Council (ABYC) helps show that the installer works from recognized marine standards instead of habit. It also tells you they should understand the details that may not appear clearly on a quote: marine-grade tinned copper wire, correct conductor sizing, adhesive-lined heat-shrink terminals, strain relief, fuse or breaker placement, voltage drop, grounding practices, and proper network termination.

Those details are not optional on a boat. A marine electrical system must survive vibration, heat, moisture, salt, and service access limitations. Wire should be flexible, properly supported, protected from chafe, and rated for the environment. In many marine applications, quality cable will carry markings such as UL 1426, BC-5W2, or other marine cable ratings. Some marine wire is commonly rated for conditions such as 105°C dry and 75°C wet, depending on the cable specification.

Ask the installer what wire, terminals, connectors, and standards they use. If they cannot answer clearly, they may be learning on your vessel.

Anyone can power up a display while the boat sits on a trailer or at the dock. That does not prove the system is ready for real use. A multifunction display that turns on is only doing part of its job.

Real commissioning happens with the boat running. The installer should confirm that the transducer holds bottom at speed, that the radar overlay aligns correctly, that the autopilot responds properly, and that the NMEA 2000 network remains stable under vibration and electrical load. They should also check whether equipment resets when pumps, windlasses, trim tabs, lighting, or other loads operate at the same time.

This is where many installation problems appear. A weak ground, undersized conductor, poor crimp, incorrect fuse, loose backbone connection, or marginal battery can look fine at the dock and fail underway. Network errors, voltage drop, and signal loss often show up only after the boat is moving.

Ask whether on-water commissioning is included in the written proposal. If it is not in the scope, assume it will not happen.

Hardware warranties usually cover defects in the product. They do not cover damage caused by poor installation. That difference matters.

A manufacturer may deny a claim if the failure was caused by water intrusion, reverse polarity, incorrect fuse protection, low voltage, poor grounding, undersized wire, corrosion, or improper mounting. Without documentation, it can be difficult for the boat owner to prove the equipment failed on its own.

A professional installer protects you in two ways. First, the work is documented. You should know what was installed, how it was powered, what protection was used, and how the network was built. Second, a professional shop usually has a better process for warranty support, because they work with these manufacturers regularly and can explain the installation properly.

Ask what warranty the shop offers on its own workmanship, separate from the equipment warranty. Also ask whether the installation follows manufacturer instructions and marine electrical standards. The workmanship warranty should be in writing, and the scope should clearly state what is covered.

Good documentation also matters years later. If another technician services the boat, they should not have to guess where power comes from, where the network backbone runs, or which circuit feeds each device.

This is one of the most important questions, and many boat owners forget to ask it.

When you upgrade from older electronics to modern flush-mounted displays, your existing dash usually does not match the new equipment. The old cutouts may be too small, too large, poorly placed, or shaped for electronics that are no longer available. Every installer has to solve that problem, and the quality of the solution can change the entire look of the helm.

The poor solution is to enlarge openings by hand and cover gaps with thin filler plates. It may work, but it often looks improvised. Worse, poor sealing around the dash can allow moisture to reach the wiring, switches, and connectors behind the helm. That is one of the most vulnerable areas on a boat.

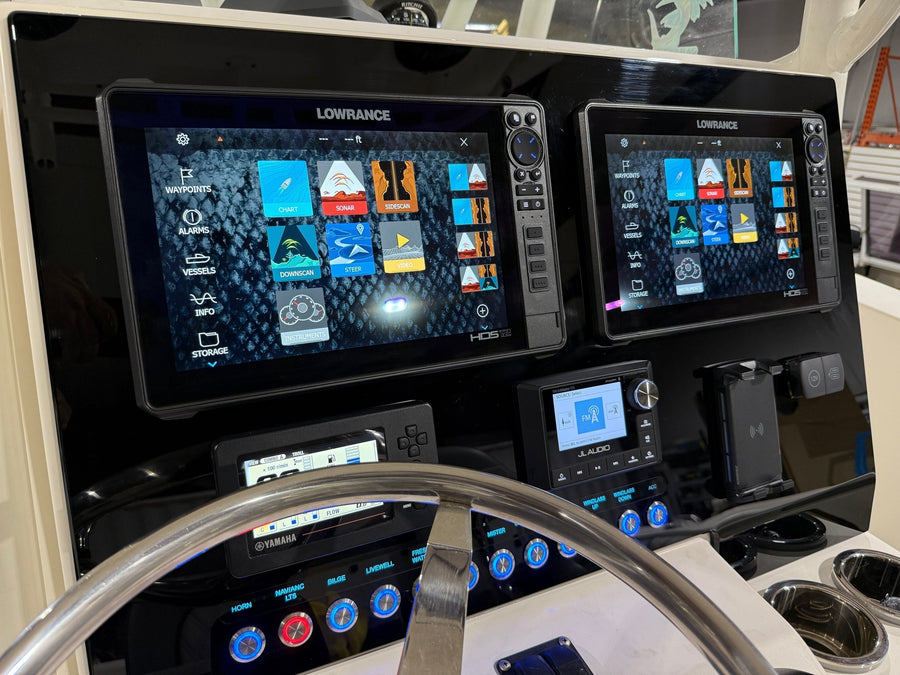

The better solution is a properly designed dash panel, cut on CNC machinery to match the new layout. A good panel should account for display cutouts, gauges, switches, fasteners, bezels, clearance behind the dash, and the way the helm will actually be used.

You do not have to accept whatever can be improvised on site. A custom boat dash panel can be built for your make, model, equipment layout, finish, and mounting style. Any competent marine installer should be able to install a properly made panel. The same applies to switch panels. A purpose-built marine switch panel is cleaner and more reliable than a row of holes drilled wherever space was available.

If you are paying for a multi-unit electronics integration, you should not have to reverse-engineer your own boat later.

A professional installation should include documentation. At a minimum, you should receive a clear record of the major devices installed, power sources, fuse or breaker locations, network layout, backbone path, drop connections, terminators, and any serviceable connectors. For larger projects, a basic wiring diagram or network map is extremely valuable.

This matters more than most owners realize. If a device fails later, documentation can save hours of diagnostic labor. If you add another display, replace a transducer, update the autopilot, or troubleshoot a network fault, the next technician can start with a map instead of guessing.

Documentation also shows how the installer thinks. A shop that documents the finished system is usually more organized during the build. They are more likely to label circuits, support harnesses, leave service loops, protect wires from abrasion, and route cables with future service in mind.

Ask this directly: “What documentation will I receive when the job is complete?”

Modern boats use more power than older electrical systems were designed to support. A boat that was fine with one small display and basic lighting may struggle after adding dual 12-inch screens, radar, sonar modules, live sonar, Starlink, upgraded audio, underwater lights, USB chargers, and digital switching.

A professional installer should not simply connect new electronics to the nearest available power source. They should look at the full electrical picture: battery capacity, alternator output, charger capacity, wire size, voltage drop, fuse or breaker protection, and how long the owner expects the system to run without the engine.

This is especially important for house loads. Electronics need stable voltage. A system that drops too low can cause screens to reboot, networks to disconnect, sonar to perform poorly, or autopilot components to behave unpredictably. These problems often get blamed on the electronics when the real issue is power management.

Ask whether the installer will calculate the expected load and discuss amp draw, amp-hour capacity, charging sources, battery condition, and whether a dedicated house bank or battery monitoring system is needed.

Mobile and dockside service can be convenient, and for some jobs it makes sense. Software updates, troubleshooting, small repairs, and simple screen replacements can often be done at the marina.

A full electronics refit is different. Running a new network backbone, building harnesses, cutting or replacing dash panels, installing transducers, routing power cables, and documenting circuits is detailed work. It often requires bench space, proper lighting, dry conditions, tooling, test equipment, and time.

In a controlled shop, technicians can build harnesses more consistently, use proper crimping tools, test assemblies, protect open wiring from weather, and avoid working around rain, heat, humidity, or dockside interruptions. For larger projects, that environment can improve both quality and efficiency.

Dockside work is not automatically bad. Many excellent installers work mobile. The key is matching the environment to the scope of the job. Ask where the work will be done, how the boat will be protected, how long the job will take, and whether the installer has the equipment needed to do clean electrical and fabrication work.

What a Professional Install Typically Costs

Labor rates vary by region, year, boat size, and project complexity, so these numbers should be treated as general orientation, not a quote. Marine electronics work can range from a simple display swap to a full networked refit with dash fabrication, new wiring, battery upgrades, and on-water commissioning.

The gap between the two hourly rates is not markup. It is the difference between someone who has read the standards and someone who has not, and it shows up three seasons later.
