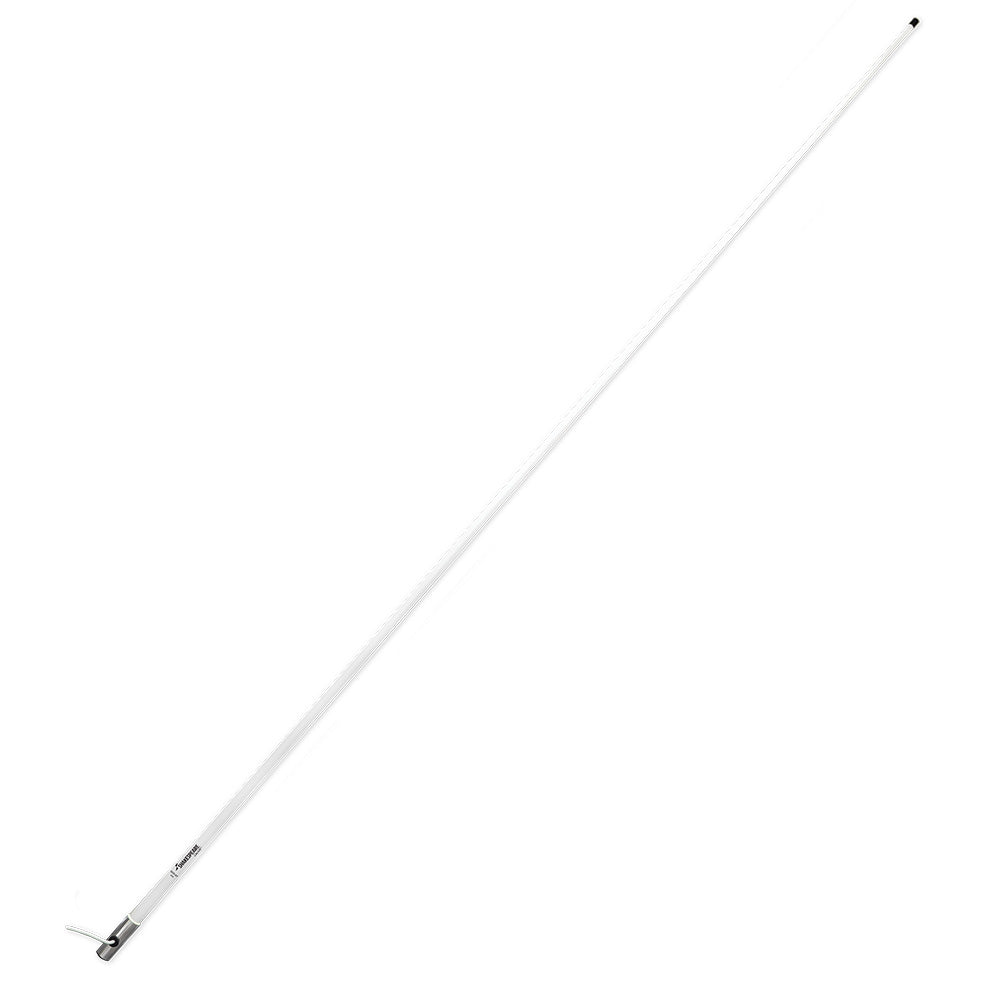

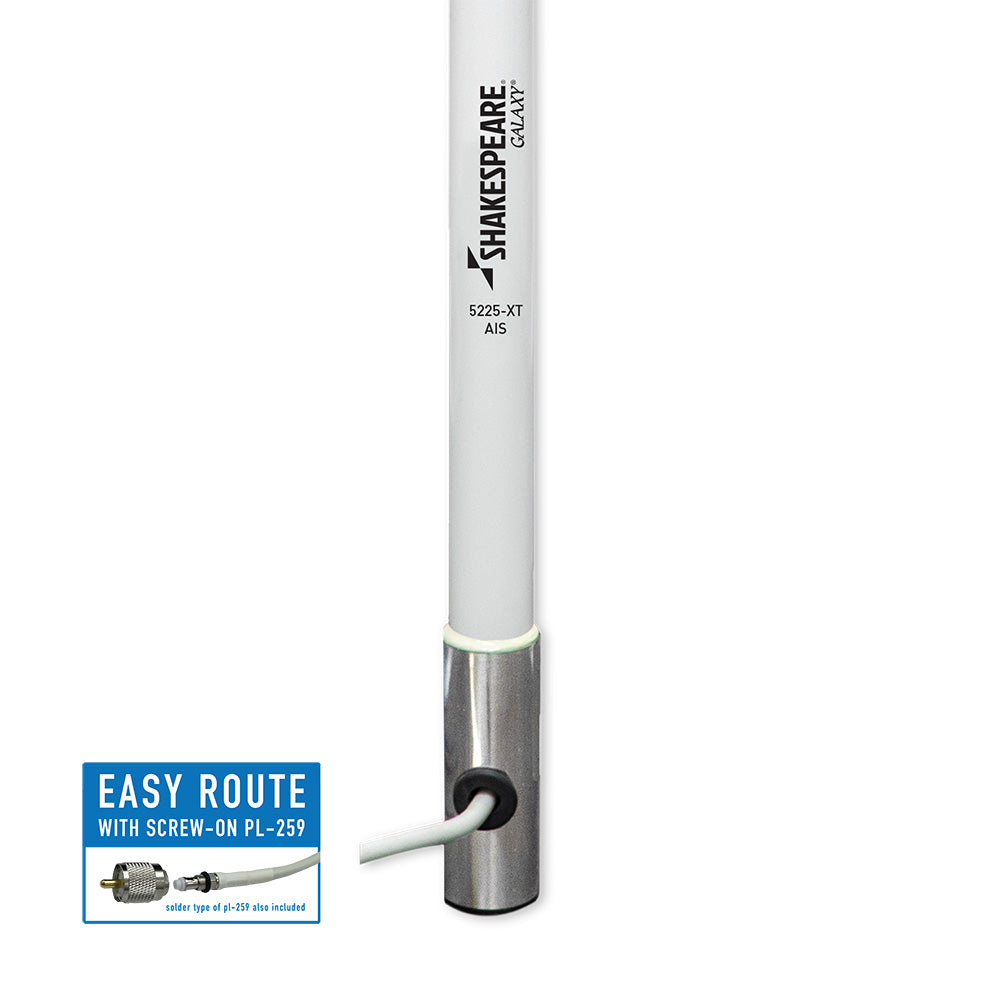

AIS 8' Galaxy AIS Antenna - 6dB Gain - Stainless Steel Ferrule

Cruise with confidence and communicate reliably over the AIS band using the Galaxy® AIS antennas. Specifically designed and tuned to work with all popular AIS transceivers.

Features:

• Reduced length version

Specifications:

• manuf part number 5225-XT-AIS
• Antenna Length: 8ft.
• Band: Broadband VHF
• Antenna Gain: 6dB
• Max. Input Power: 50 watts
• SWR: Nominally 1.5:1 at 158 MHz
• Bandwidth: 5 MHz within 2.0:1 VSWR
• Ferrule: Stainless steel
• Coax Supplied: 20ft. of RG-8/X
• Connector Supplied: PL-259, not installed
• Color/finish: Galaxy White
• Polarity: Vertical
• Impedance: 50 Ohms
• DC Ground: DC Grounded - The antenna will read shorted on continuity test
• Shakespeare Limited Warranty: 5 years
• Includes: FME Cables

Specifications:

• Antenna Band: Broadband
• Color: White
• Ferrule Type: Stainless Steel
• Length (Inches): 96"
• Box Dimensions: 2"H x 2"W x 95"L WT: 4 lbs
• UPC: 719441100940
