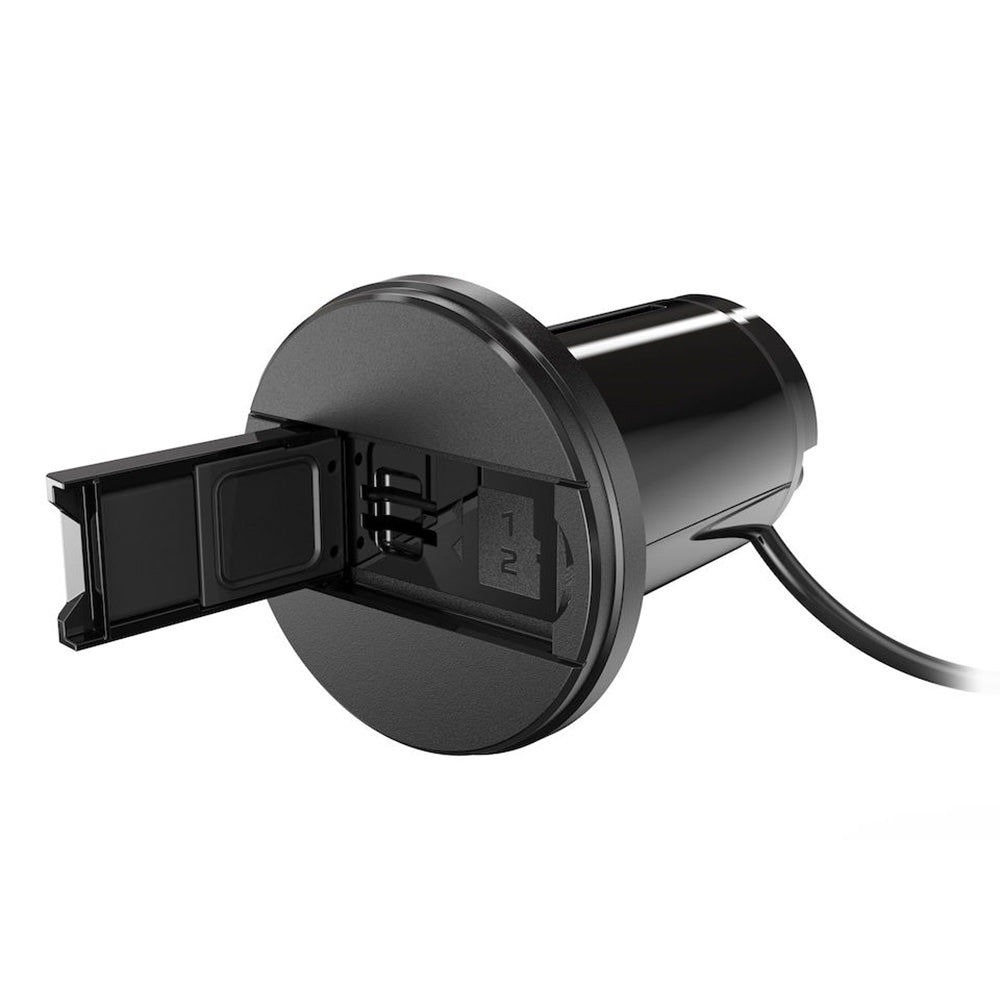

MI10 Dual Micro-SD Card Reader

The MI10 Chart Card Reader provides dual microSD card slots for use with Simrad NSO evo2 marine processors and B & G Zeus² Glass Helm CPUs. This easy-to-install, waterproof card reader can be mounted in easy reach, eliminating the need to physically access your system’s “black box” processor when installing or removing chart cards.

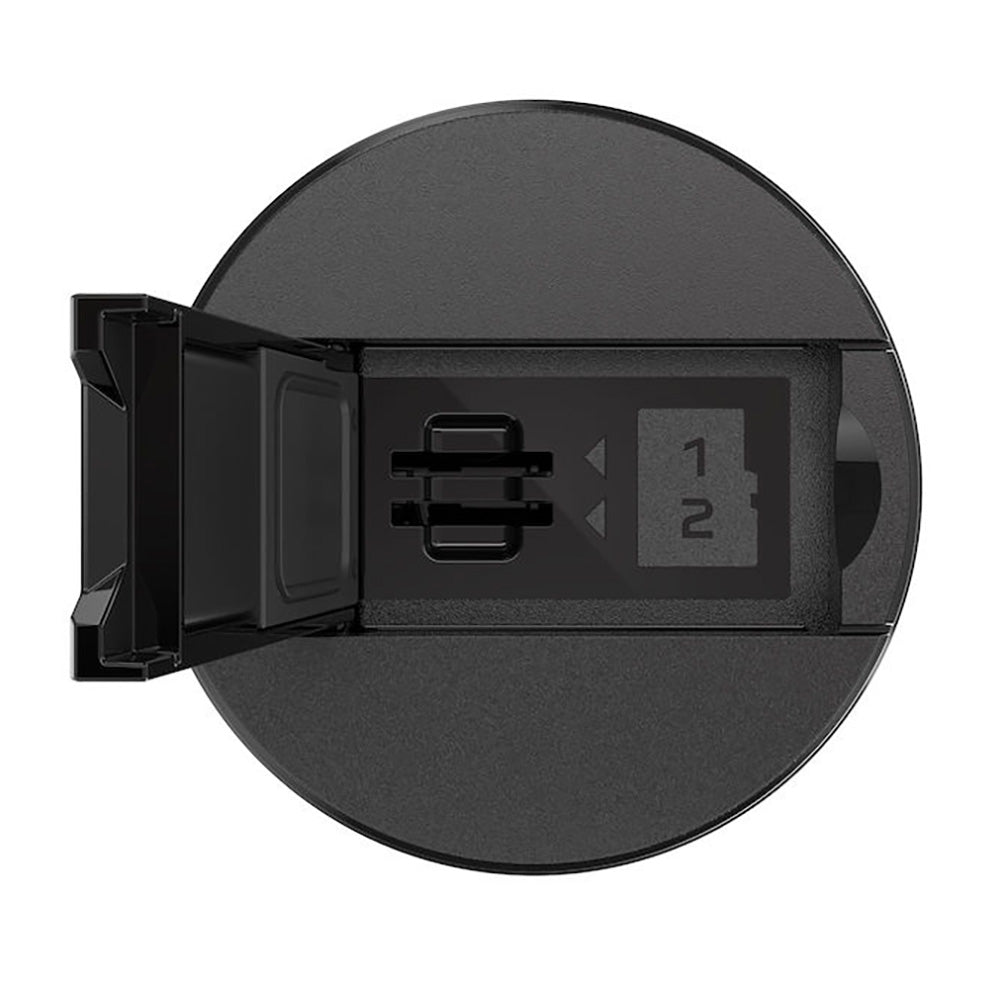

Dual card slots allow simultaneous use of two different chart cards, or the use of a secondary card for applications such as sonar logging, software updates, and backups.

This waterproof card reader can be mounted at a console or helm station within easy reach, eliminating the need to physically access your display system’s “black box” processor when inserting or removing cards.

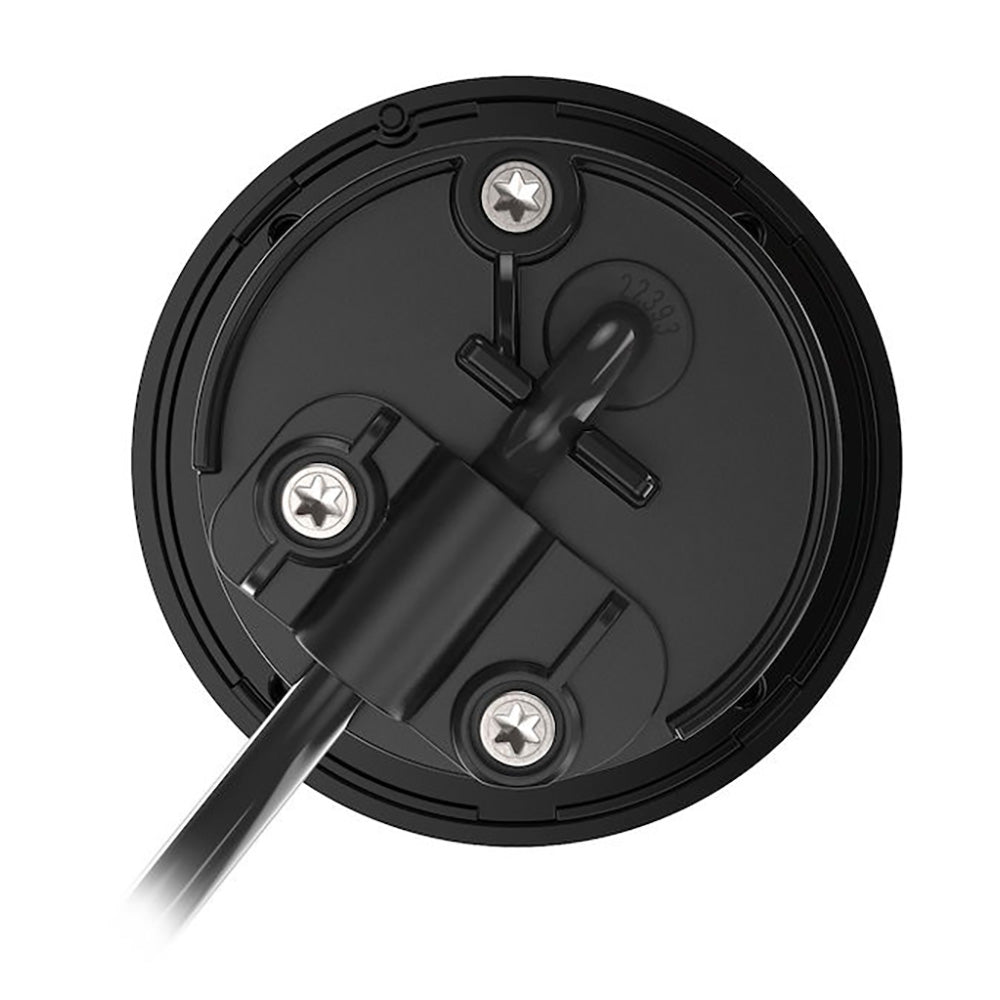

Installation and mounting are simple, requiring just a single hole-saw cut and four screws. The MI10 connects to your system via an integrated USB cable, complete with a waterproof connector.

Features:

• Easy to install
• Dual microSD card slots
• Compatible with Simrad NSO evo2 marine processors and B & G Zeus² Glass Helm CPUs
• Waterproof design
• Integrated USB cable

Specifications:

• Dimensions W x H x D: 58.6 mm x 58.6 mm x 73 mm (2.3" x 2.3" x 2.68"

Specifications:

• Type: Parts
• Box Dimensions: 3"H x 5"W x 8"L WT: 0.6 lbs
• UPC: 9420024162491
