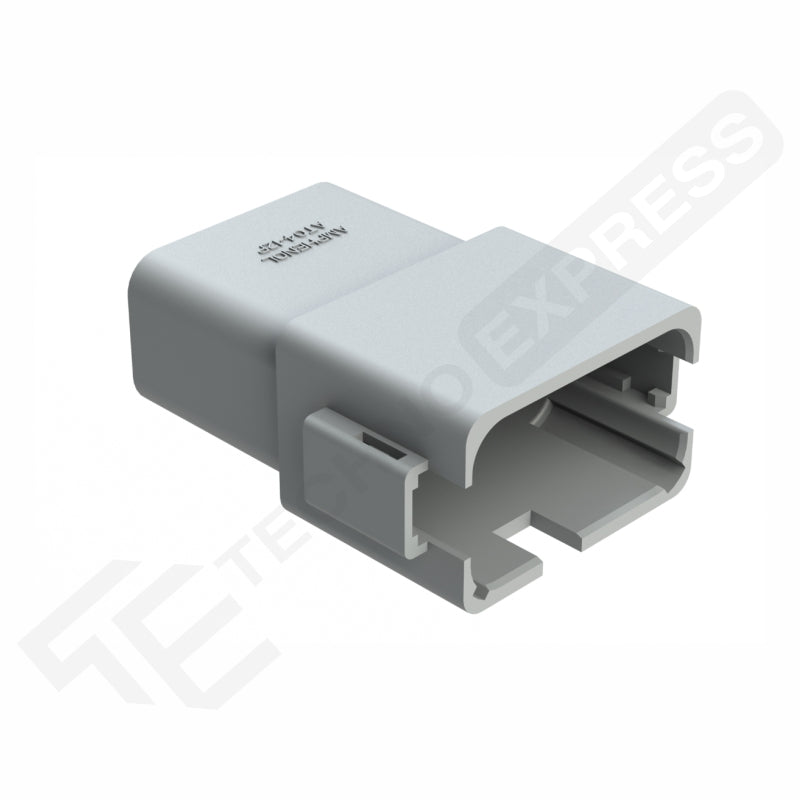

Amphenol AT04-12PA 12-way male DT series receptacle connector, molded plastic housing

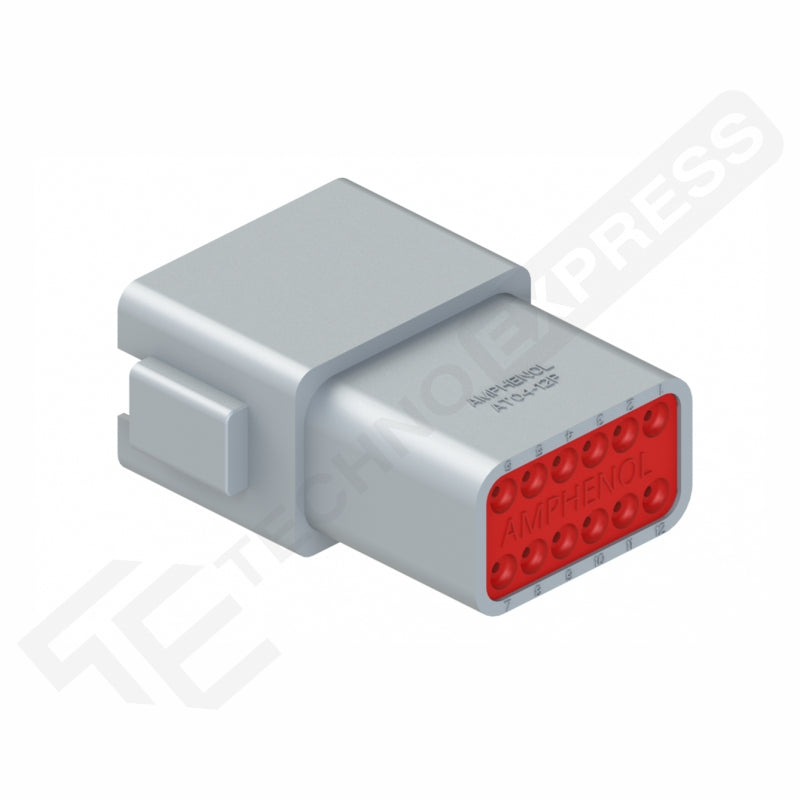

Amphenol DT 12-way male receptacle front-angled view showing red 12-pin face, numbered cavities and side latch
1 / 2
Amphenol AT04-12PA 12-way male DT series receptacle connector, molded plastic housing
Amphenol DT 12-way male receptacle front-angled view showing red 12-pin face, numbered cavities and side latch
    Amphenol AT04-12PA 12-way male DT series receptacle connector, molded plastic housing
    Amphenol DT 12-way male receptacle front-angled view showing red 12-pin face, numbered cavities and side latch
Amphenol AT04-12PA 12-way male DT series receptacle connector, molded plastic housing
Amphenol DT 12-way male receptacle front-angled view showing red 12-pin face, numbered cavities and side latch
1 / 2

AT04-12PA 12-Way Receptacle, Male

$3.99
$3.99
$4.99
In Stock
Shipping calculated at checkout.
AT04-12PA / DT04-12PA 12-Way Receptacle, Male

SKU: 225D-AT04-12PA

Availability
In Stock Orders by 1PM EST ship today!
Shipping
Free ShippingOn Qualified Orders Over $150
Support
Talk to a Project Manager(407) 543-8691
10-Day Returns*Hassle-free returns
Secure PaymentsSafe & encrypted checkout
Tech SupportHonest Expert Advice
You May Also Need
Product Information

Everything You Need to Know

Select a section to view product details, specifications, shipping information and support.

Description Overview, benefits and key product details. View full product details

The connection we recommend when failure is not an option offshore. AT04-12PA Receptacle

  • 13 Amps or Less

  • 14 Part AT Connector (12 Pins, Lock & Receptacle)

  • 14-20 AWG (2.0-0.5mm²)

  • Compatible Pin: 225D-BW-0460-215-16141

  • Contacts Included: No

 Built for harsh marine, automotive, heavy equipment, and other demanding environments, they provide reliable sealed connections that help protect against moisture, vibration, and corrosion.


SPECIFICATIONS:

  • No. of Positions: 12
  • Mating Part(s)*: 225D-AT06-12SA Plug
  • Amperage: 13A (FOR HIGHER AMP RATE USE DTP CONNECTORS)
  • Wire Range: 14-20 AWG (2.0-0.5mm²)
  • Same part as Deutsch DT04-12PA
  • Contacts Included: No
  • Contact Type (Pin/Socket): Socket
  • Gender: Male
  • Housing Material: Thermoplastic
  • Voltage Rating: 250V
  • Shape: Rectangular
  • Color: Grey
  • IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
  • Operating Temperature: -55°C to +125°C
  • Seal Material: Silicone Elastomer
  • Seal Diameter: 2.24mm (.088") - 3.68mm (.145")
  • End Cap/Rear Seal Dimensions: .088" - .145"
  • Mating Cycle Durability: >100
  • RoHS Compliant: Yes
  • Wedge Part#: AW12PA
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
  • PRODUCT DRAWING
Shipping

We ship orders via UPS, as well as other reliable carriers when
necessary. Orders are typically processed within 1–3 business days unless otherwise
stated.

For more information, check our shipping policy.

Returns

We want you to be completely satisfied with your purchase. Most unused, unopened, non-custom, and non-special-order products may be returned within 10 calendar days of delivery for a refund or store credit, less original shipping costs and any applicable return fees.

For more information, check our Refund & Return Policy

What's comes in the Box?

1 x AT04-12PA 12-Way Receptacle, Male
