BATTERY

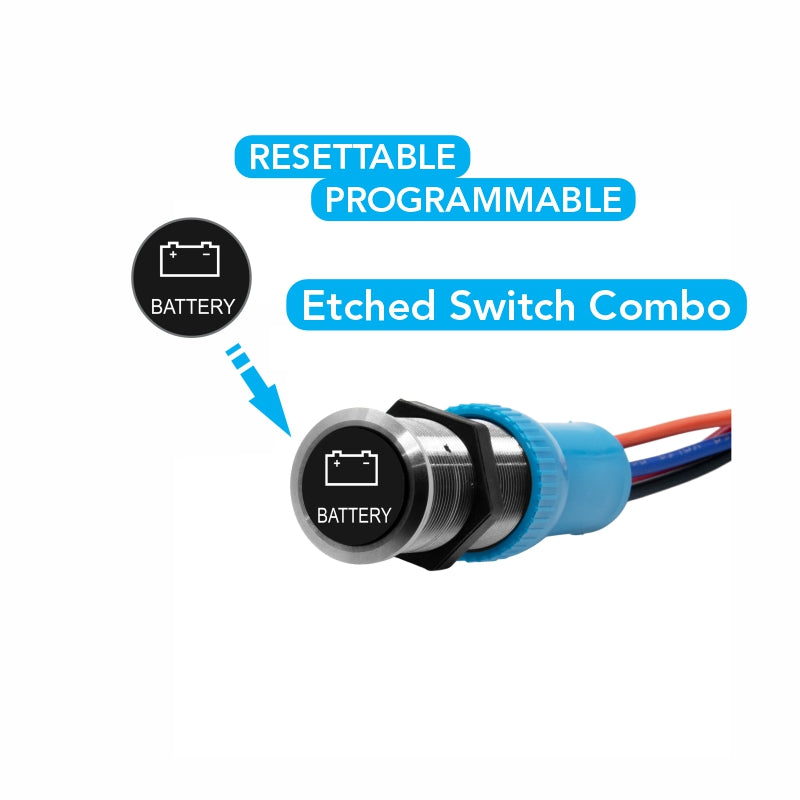

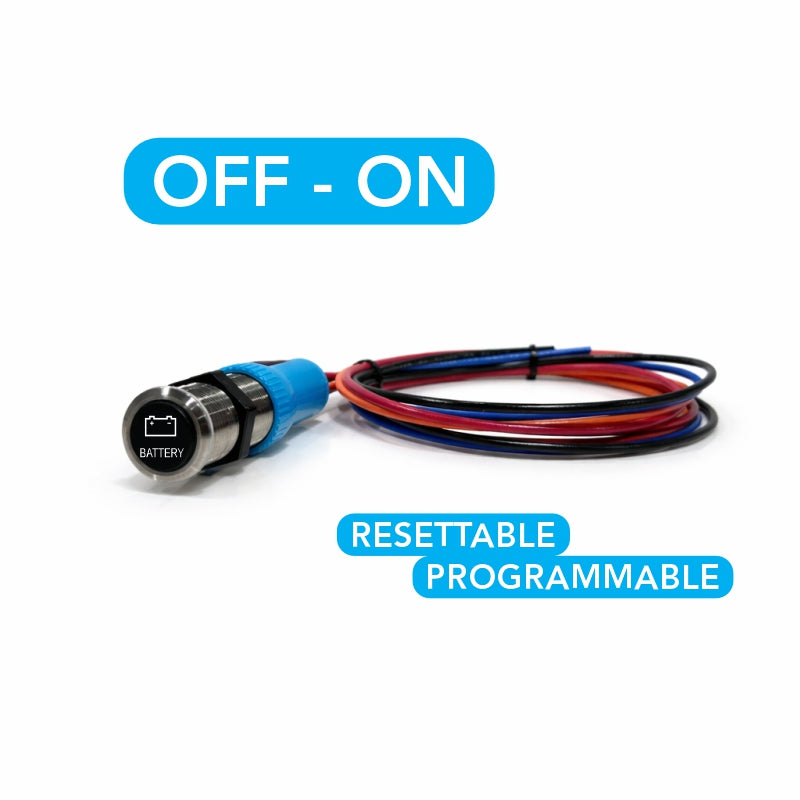

22mm Bluewater BATTERY Resettable OFF - ON Push Button Combo

In the Box:

• (1) Programmable/Resettable Switch Body 225D-BW-SB001P
• (1) 22mm 36" 4 Wire Leads Switch Plug 225D-BW-4C36
• (1) 22mm Switch Plastic Nut 225D-BW-22NUT

• (1) Custom Etched Switch Actuator Backlight Ready

Built for heavy-duty marine applications, this switch handles high surge currents with ease—perfect for pumps, motors, and other demanding onboard equipment.

8 Programmable Amp positions: 3, 5, 6, 7.5, 10, 15, 20, 0

Select the correct amp rating for the device you will connect to the switch, and we’ll program it for you before shipping. If you ever need to adjust the switch’s amp protection setting, simply call us directly and we’ll walk you through the process—no need to remove the switch from the panel. The programming takes about one minute. Easy!

Built for Harsh Marine Conditions

• Encased in corrosion-resistant SS316 stainless steel

• Rated IP69K waterproof with Bluewater’s proprietary Deutsch-style connectors

• Resistant to salt spray, heat, vibration, and shock

Easy to See and Control

• Blue LED backlighting for night visibility

• LED shifts to bright red when active—instant confirmation of pump or device status

• Fully detachable actuator for customization of style and function

Reliable Power Handling

• Rated for 20 amps on a single channel

• Rated for 10 amps per channel in dual-channel use

• Impact resistant and designed for long-lasting performance

  MORE INFORMATION ABOUT THIS SWITCH

  • Wiring Data & Troubleshooting
