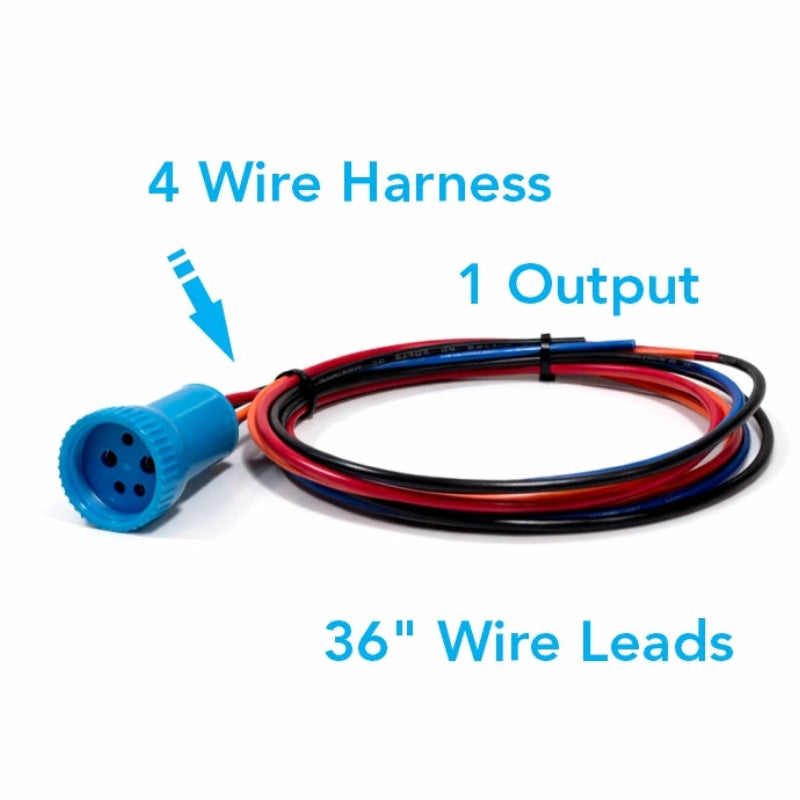

Bluewater 22mm switch plug 4-wire harness with 36-inch lead and single output

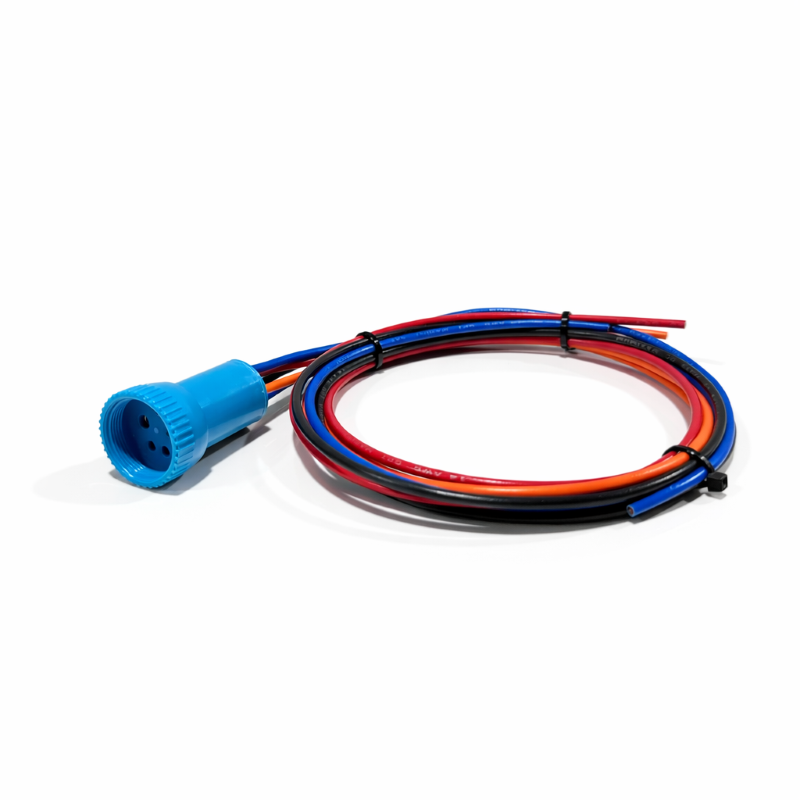

Bluewater switch plug showing front connector face and coiled four wires with exposed ends
Rear connector view of Bluewater 22mm dimmer switch body with labeled wire colors and wiring table
1 / 3
Bluewater 22mm switch plug 4-wire harness with 36-inch lead and single output
Bluewater switch plug showing front connector face and coiled four wires with exposed ends
Rear connector view of Bluewater 22mm dimmer switch body with labeled wire colors and wiring table
    Bluewater 22mm switch plug 4-wire harness with 36-inch lead and single output
    Bluewater switch plug showing front connector face and coiled four wires with exposed ends
    Rear connector view of Bluewater 22mm dimmer switch body with labeled wire colors and wiring table
Bluewater 22mm switch plug 4-wire harness with 36-inch lead and single output
Bluewater switch plug showing front connector face and coiled four wires with exposed ends
Rear connector view of Bluewater 22mm dimmer switch body with labeled wire colors and wiring table
1 / 3

Bluewater 22mm Switch Plug 4 Wires

$10.00
$10.00
$14.99
In Stock
Shipping calculated at checkout.

22mm Bluewater Switch Prewired Connector (4 Wires) 4 Wire Leads 36 Inches (3 Ft) 1 Output Wire 14 AWG (Red)...

SKU: 225D-BW-4C36

Shipping
Free shipping over $150On qualified U.S. orders
Support
Marine specialist support(407) 543-8691
30-Day ReturnsHassle-free returns
Secure PaymentsSafe & encrypted checkout
Expert SupportHere to help
You May Also Need
Product Information

Everything You Need to Know

Select a section to view product details, specifications, shipping information and support.

Description Overview, benefits and key product details. View full product details

22mm Bluewater Switch Prewired Connector (4 Wires)

  • 4 Wire Leads 36 Inches (3 Ft)
  • 1 Output Wire 14 AWG (Red)
  • Fits only 22mm Switch bodies
  • Sealed Plug
  • No Special tools are required for the installation
  • You can easily upgrade this connector to a 5 Wire configuration by removing the protection plug and inserting the 5th wire with connector. (Make sure you're using a dual output switch from Bluewater.

Wire Color Code

  • Blue: Illumination Input 16 AWG
  • Black: Ground Input 16 AWG
  • Orange: + 12 Volts Input  14 AWG
  • Red: Load 1 Output 14 AWG

 Related Parts & Accessories

  • 22mm Bluewater Switch Nut
  • 22mm Bluewater 5th Wire lead 12"
  • 22mm Bluewater Switch Bodies (Base only)
  • 22mm Bluewater Full Switch Kits
Shipping

We ship orders via UPS, as well as other reliable carriers when
necessary. Orders are typically processed within 1–3 business days unless otherwise
stated.

For more information, check our shipping policy.

Returns

We want you to be completely satisfied with your purchase. Most unused, unopened, non-custom, and non-special-order products may be returned within 10 calendar days of delivery for a refund or store credit, less original shipping costs and any applicable return fees.

For more information, check our Refund & Return Policy

What's comes in the Box?

A Bluewater 4 wire prewired connector
