Trident Marine Stainless Steel Constant Torque Clamp 5/8" Band, Hose I.D. - 2-3/4" to 3-1/4", Hose O.D. 3.25" to 4.125" [730-3000]

$17.99
$17.99
$23.84

Stainless Steel Constant Torque Clamp 5/8" Band, Hose I.D. - 2-3/4" to 3-1/4", Hose O.D. 3.25" to 4.125"Virtually all rubber...

SKU: 225D-115304

Availability
In Stock Orders by 1PM EST ship today!
Shipping calculated at checkout.
Shipping
Free ShippingOn Qualified Orders Over $150
Support
Talk to a Project Manager(407) 543-8691
60-Day Returns30 days on electronics
Secure PaymentsSafe & encrypted checkout
Tech SupportHonest Expert Advice
Description Overview, benefits and key product details. View full product details

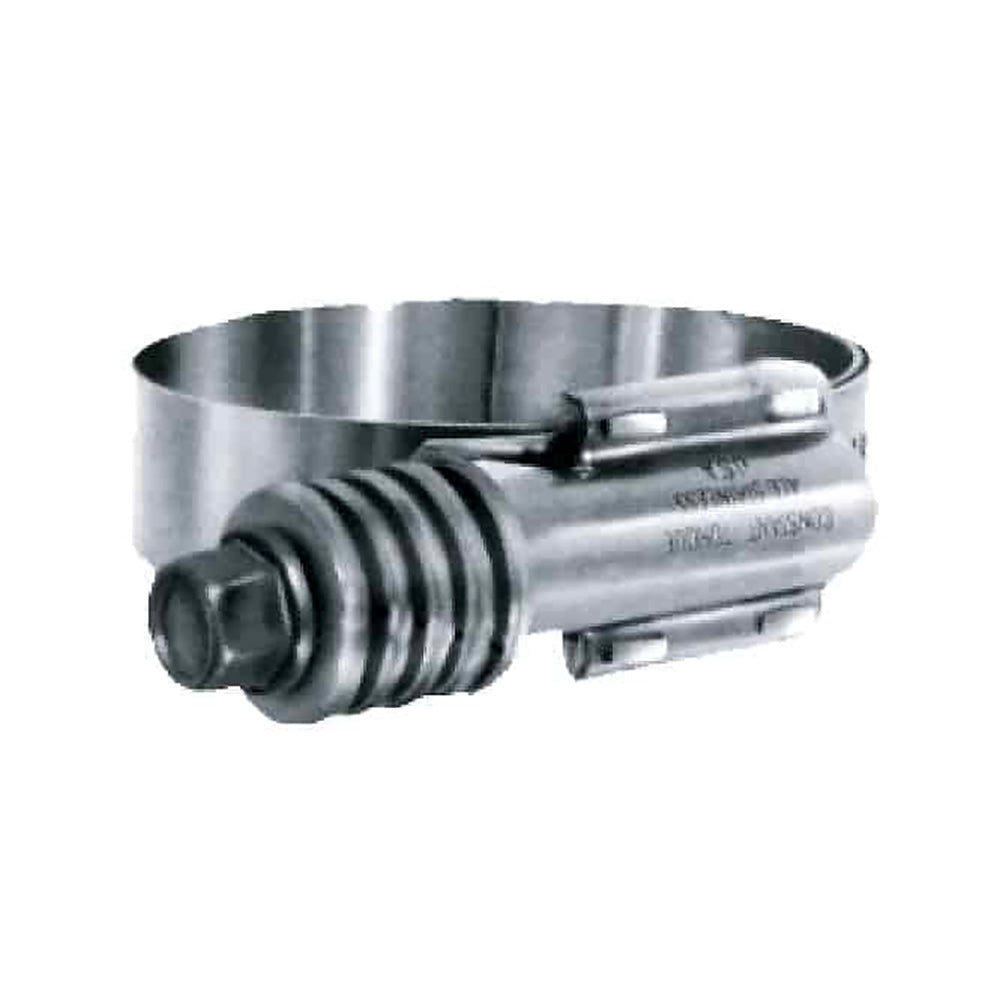

Stainless Steel Constant Torque Clamp 5/8" Band, Hose I.D. - 2-3/4" to 3-1/4", Hose O.D. 3.25" to 4.125"

Virtually all rubber hose compresses (cold flow) after installation of clamping device, resulting in an almost immediate torque loss that can exceed 80% of installation torque. Similarly, virtually all metal connections expand as a system heats up, and then contracts as the system cools. Conventional worm gear, T-bolt, and other clamps are passive, in that expansion or contraction of components cannot be compensated for with out re-tightening or loosening the clamps. This clamping system is an “active” clamping mechanism, which monitors and then compensates for the changes by actually changing diameter through a unique worm gear Belleville assembly.

Specifications:

  • Hose I.D. - 2-3/4" to 3-1/4", Hose O.D. 3.25" to 4.125"
  • Recommend max. torque - smaller id. sizes up to 730-3000 - 30 to 70 in.-lbs, larger id. sizes above 730-3000 - 50 to 120 in.-lbs

Construction:

  • Band & Housing: 304 Stainless Steel 5/8” Wide Band
  • Bellville Spring Washers & Screw: 401 Stainless Steel
Shipping

We ship orders via UPS, as well as other reliable carriers when
necessary. In Stock Orders by 1PM EST ship today!

For more information, check our shipping policy.

Returns

We want you to be completely satisfied with your purchase. Unused, uninstalled products in their original packaging may be returned within 60 calendar days of delivery for a refund or exchange (30 days for marine electronics). Customer is responsible for return shipping.

All products are covered by a 2-year warranty (marine electronics: 1 year, then the manufacturer's warranty).

For more information, check our Refund & Return Policy

What's comes in the Box?
