Product Description
Our high-amp circuit breakers deliver reliable protection for heavy-duty marine, RV, truck and bus electrical systems. Available in multiple reset styles, these breakers safeguard auxiliary and accessory circuits with confidence.
Key Features:
-
Configurations: Auto-Reset, Manual-Reset, and Switchable/Manual options
-
Amperage Range: 30A to 250A for high-demand applications
-
Voltage Compatibility: Works with 12V, 24V, 32V, and 48V DC systems
-
Durability: Rugged thermoplastic housing with nickel-plated copper components
-
Marine-Grade: Designed to resist corrosion, vibration, and harsh environments
Performance:
-
Interrupting Capacity: Up to 3,000A at 14V, 30V, and 48V DC
-
Reliable Protection: Scales performance across the 30A–300A range
-
Trusted in Demanding Applications: From trolling motors to inverters and winches
Installation Made Simple:
-
Accepts standard 1/4″ lugs for quick, secure connections
-
Flexible mounting for surface mount setups
-
Compact design makes integration easy in tight spaces
Available as:
- Auto-Reset
- Manual-Reset

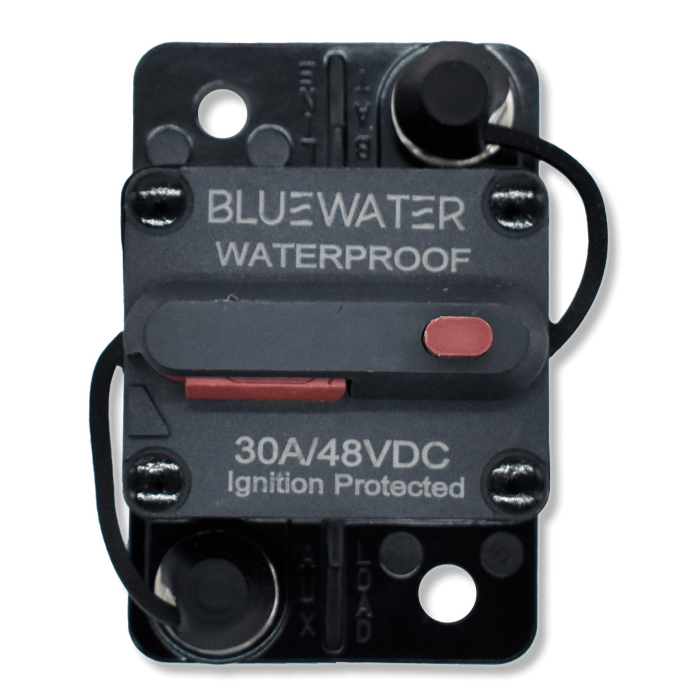

- Switchable/Manual (Pictured)
Specifications:
- Max Voltage: 32V DC; 48V DC
- Max Current: 30-250A
- Material: Thermoplastic/Nickel-Plated Copper
- Max Interrupting Capacity:
- 30-150A;3KA at 14V DC
- 30-150A;3KA at 48V DC
- 30-150A;3KA at 30V DC
- 160-250A;3KA at 14V DC
- 160-300A;3KA at 48V DC
Installation:
Use 1/4″ lugs to connect your cable to the circuit breaker
Our high-amp circuit breakers deliver reliable protection for heavy-duty marine, RV, truck and bus electrical systems. Available in multiple reset styles, these breakers safeguard auxiliary and accessory circuits with confidence.
Key Features:
-
Configurations: Auto-Reset, Manual-Reset, and Switchable/Manual options
-
Amperage Range: 30A to 250A for high-demand applications
-
Voltage Compatibility: Works with 12V, 24V, 32V, and 48V DC systems
-
Durability: Rugged thermoplastic housing with nickel-plated copper components
-
Marine-Grade: Designed to resist corrosion, vibration, and harsh environments
Performance:
-
Interrupting Capacity: Up to 3,000A at 14V, 30V, and 48V DC
-
Reliable Protection: Scales performance across the 30A–300A range
-
Trusted in Demanding Applications: From trolling motors to inverters and winches
Installation Made Simple:
-
Accepts standard 1/4″ lugs for quick, secure connections
-
Flexible mounting for surface mount setups
-
Compact design makes integration easy in tight spaces
Available as:
- Auto-Reset
- Manual-Reset
- Switchable/Manual (Pictured)
Specifications:
- Max Voltage: 32V DC; 48V DC
- Max Current: 30-250A
- Material: Thermoplastic/Nickel-Plated Copper
- Max Interrupting Capacity:
- 30-150A;3KA at 14V DC
- 30-150A;3KA at 48V DC
- 30-150A;3KA at 30V DC
- 160-250A;3KA at 14V DC
- 160-300A;3KA at 48V DC
Installation:
Use 1/4″ lugs to connect your cable to the circuit breaker
