Simrad NAC-2 Low Current Course Computer [000-13249-001]

NAC-2 Low Current Course Computer

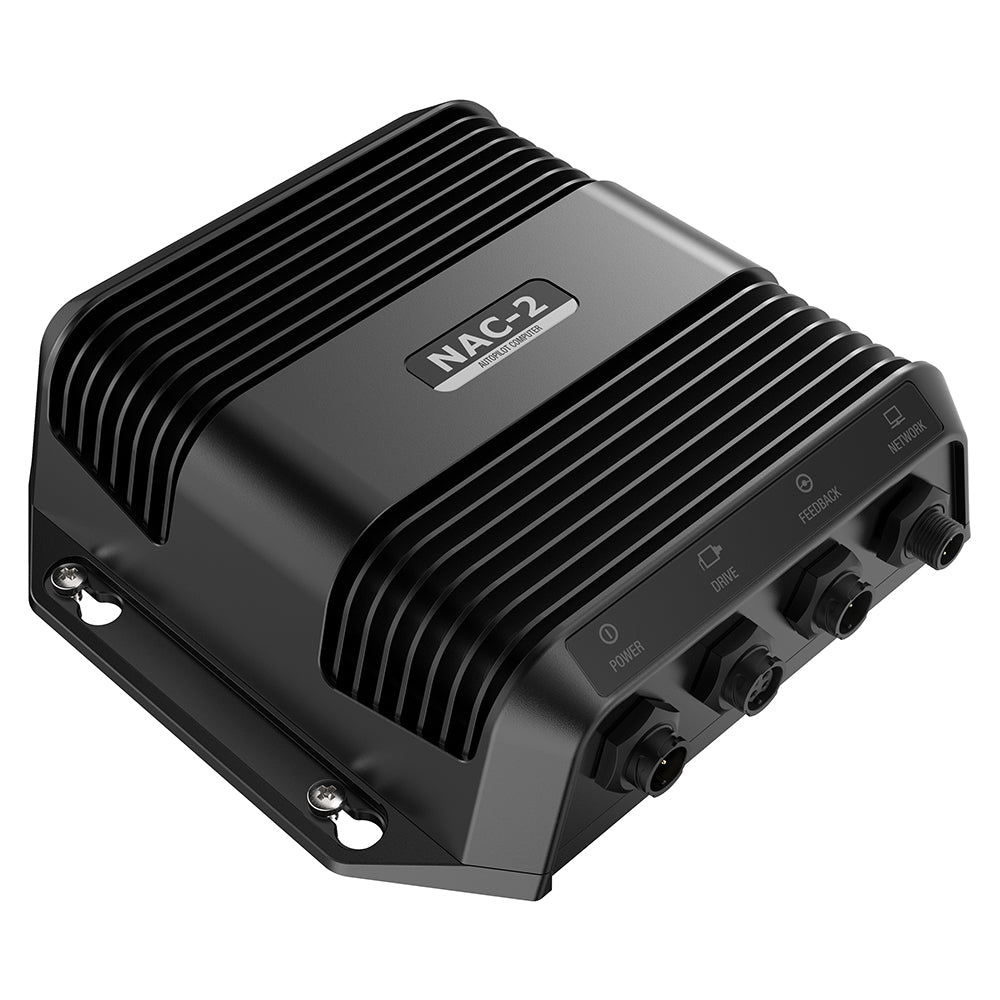

The NAC-2 Autopilot Computer is the brains behind your Simrad autopilot system. It contains the electronics needed to operate a hydraulic steering pump or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to 10M (33') in length and is suitable for low-current pumps, mechanical drive units, or solenoid valves (8 Amps continuous/16 Amps peak).

Features:

• Reliable autopilot performance based on Simrad Continuum™ steering technology

• Recommended for boats up to 10M (33') in length

• Output of 8 Amps continuous, 16 Amps peak

• Clutch output (3 Amps maximum)

• Compatible with low-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves

• Virtual rudder feedback for simplified installation aboard outboard and sterndrive (inboard/outboard) boats

• Supports Simrad RF25 rudder feedback units

• Plug-and-play connectors for easy installation

• NMEA 2000® connectivity to heading sensors, rudder feedbacks, dedicated autopilot controllers, and multifunction displays

Specifications:

• Type: Parts
• Box Dimensions: 3"H x 10"W x 13"L WT: 3.75 lbs
• UPC: 9420024154380
