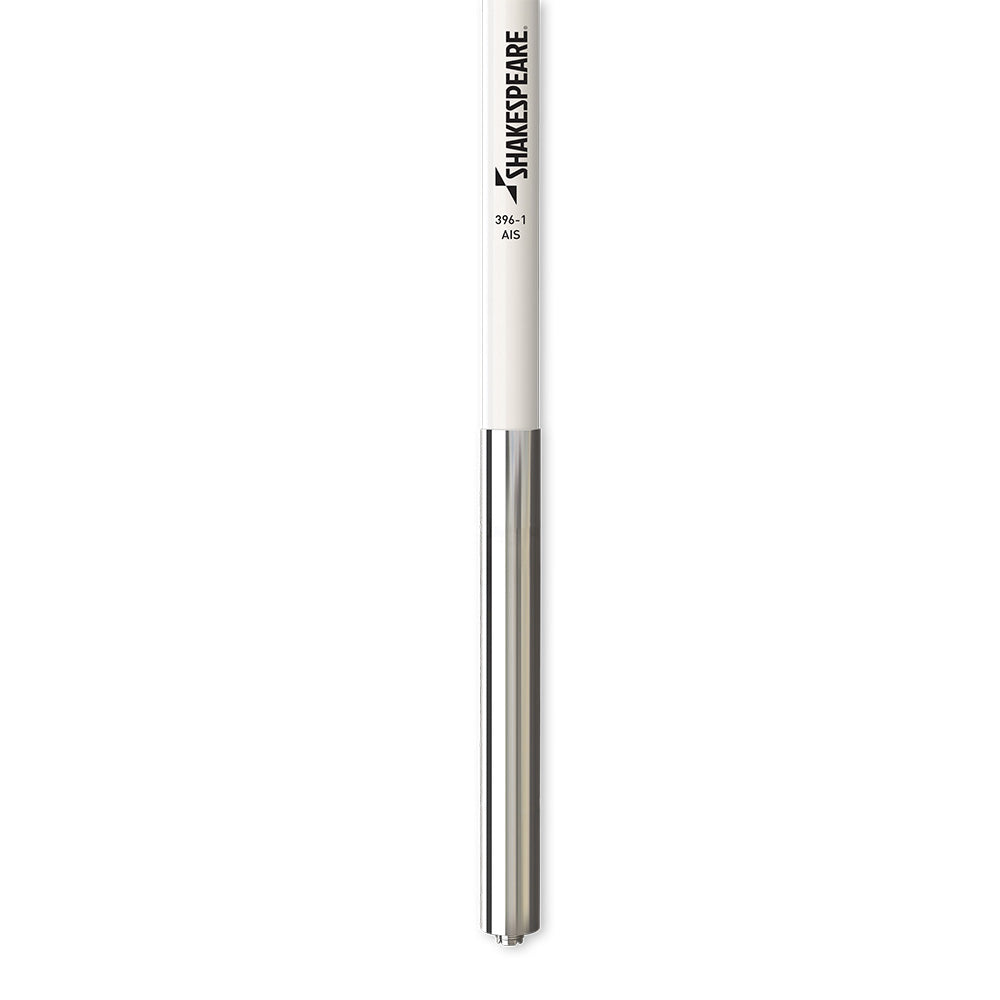

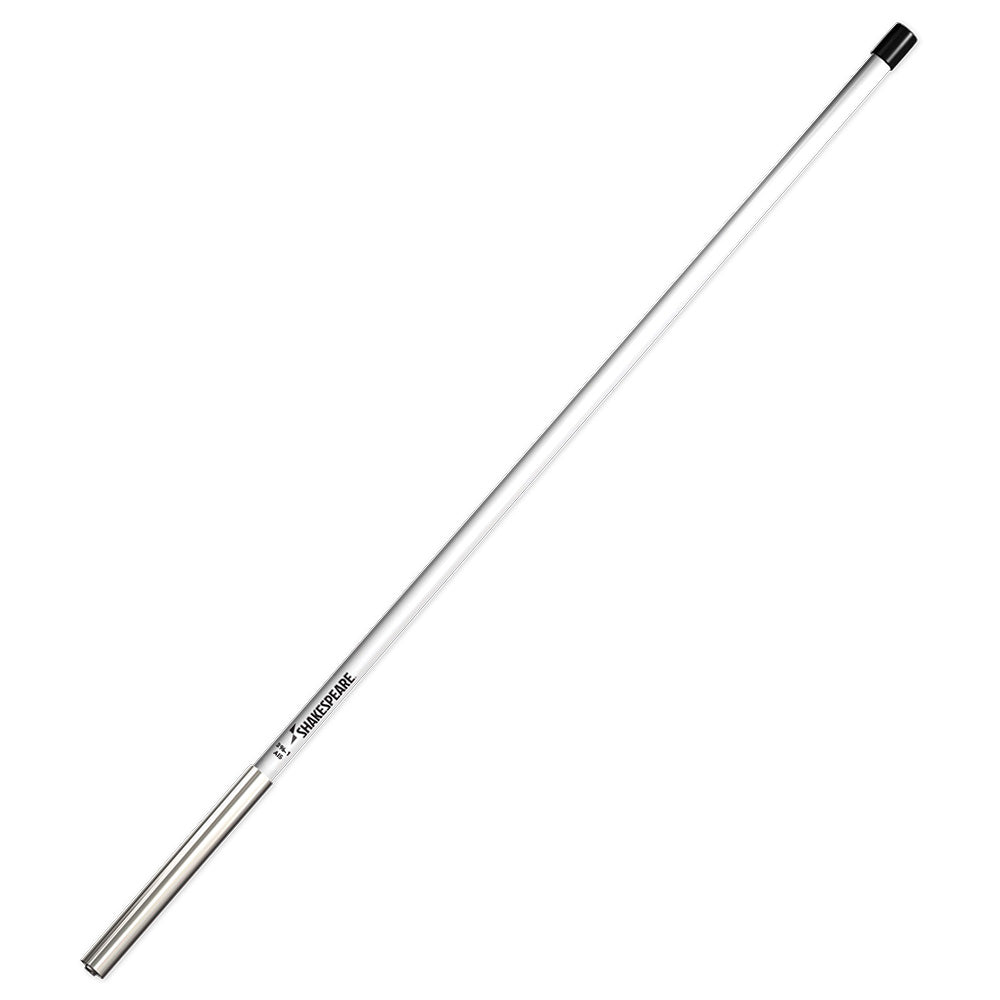

Shakespeare 396-1-AIS Broadband VHF for AIS System [396-1-AIS]

Shakespeare Style 396-1-AIS VHF Marine AIS
4' LENGTH 3dB

4' MAST MOUNT AIS ANTENNA

The 396-1-AIS has been specially designed to meet the broader bandwidth requirements of all popular AIS transceivers. Commercial-grade construction with a mast mounting sleeve.

• Brass and copper elements

• SO-239 connector at the base

• Suggested Mount: U-Bolts included. Can be strapped to a larger mast using steel banding (not supplied)

• One section

• Coax cable sold separately

• Shakespeare Limited Warranty: 2 years

• Frequency: VHF Marine Band

• Bandwidth within 2.0:1 SWR: 6.0 MHz

• SWR: 1.5:1 at 156.8 MHz

• Gain: 3dB

• Impedance (Ohms): 50

• Gain: 3dB

• Max. Input (Watts): 100

• DC Ground: no (will read open-circuit with ohmeter test)

• Termination: SO-239 at bottom of antenna

• Height (feet): 4

• Polarization: Vertical

• Radiation pattern: Omni-directional

Specifications:

• Antenna Band: VHF
• Color: White
• Construction: Fiberglass
• Length (Inches): 48"
• Box Dimensions: 3"H x 3"W x 55"L WT: 3 lbs
• UPC: 719441170585
