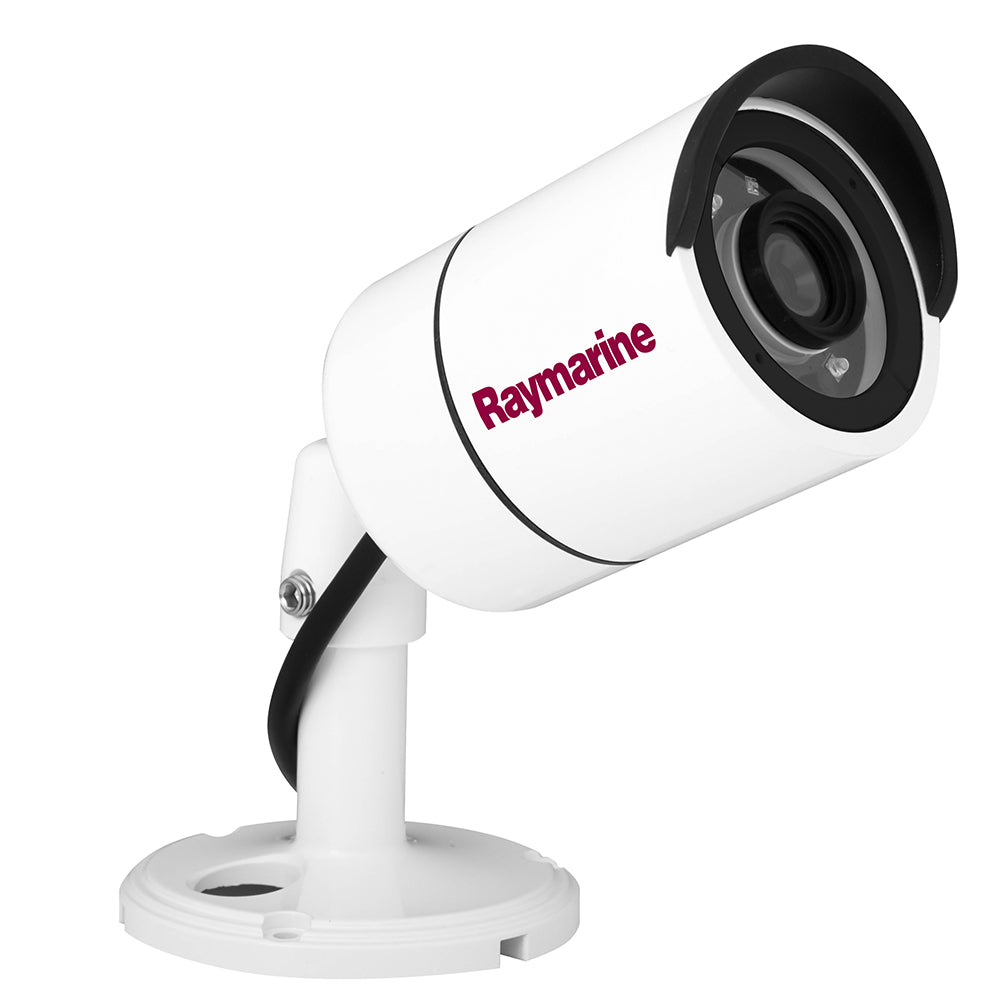

Raymarine CAM210 Day & Night IP Marine Bullet Camera [E70346]

CAM210 Day & Night IP Marine Bullet Camera

Ruggedised, High Definition, Day and Night network bullet video camera suitable for all above deck applications. Integrated sun-cover for maximum visibility and small frame size for easy installation anywhere on the boat.

• Plug and play integration with Raymarine MFD's running Lighthouse II
• Power over Ethernet (PoE) or direct 12V DC power supply

• High bright IR LEDs for operation in total darkness
• Digital Defog processing improves the captured image in poor weather conditions (such as smog, fog or smoke)

• Intelligent IR technology for clear video images at night in all conditions

Specifications:

• CPU: 32-bit ARM9 RISC CPU up to 432MHz
• Flash / SDRAM: 128MB / 128MB

• Image Sensor: 2.0 Megapixel 1/2.8" SONY progressive scan CMOS(Exmor)
• Total Pixels: 1952(H) x 1116(V) 2.18 Megapixel

• Effective Pixels: 1944(H) x 1104(V) 2.15 Megapixel
• S/N Ratio: More than 50dB

• Minimum Illumination: 0Lux (IR On)
• IR Distance: 20M

• Day & Night: ICR
• Lens: 6.0mm Megapixel Board Lens

• Field of View:
  Diagonal = 63.6° +/- 3°
  Horizontal = 53.3° +/- 3°
  Vertical = 33.1° +/- 3°
• Video Compression: H.264 High [email protected], MJPEG Image quality: 3 Steps

• Resolution: Up to 1920 x 1080 (Full HD)
• Frame Rate: H.264 Up to 30fps with 1920x1080 | MJPEG Up to 30fps with VGA resolution

• Video Streaming:
  Support multi stream with H.264, MJPEG
  Adjustable frame rate
  CVBR/CBR in H.264
• Pan / Tilt / Zoom: Digital Pan, Tilt and Zoom
• Image Setting:
  Day & Night
  Auto White Balance
  Auto Exposure
  Privacy Mask
  Effects - Color, Sharpness, Mirror / V-Flip
• Security: Password protection, User access log, HTTPS encryption
• Supported Protocol: HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP
• Intelligent Video: Motion detection up to 1920x1080 with 4x3 blocks

• Power Source: DC12V/1.5A, PoE(Power over Ethernet): 802.3af
• Power Consumption: Max. 3.3W, Max. 5.3W with IR

• Net Weight: 900g
• LED's: Power, Network Connection

• Dimensions: 83.8mm(W) x 155mm(H) x 178.1mm(D) including Bracket
• General Operation Temperature: 0°40° Celsius(32F104F)

• Storage Temperature: -10°50° Celsius(14F122F)
