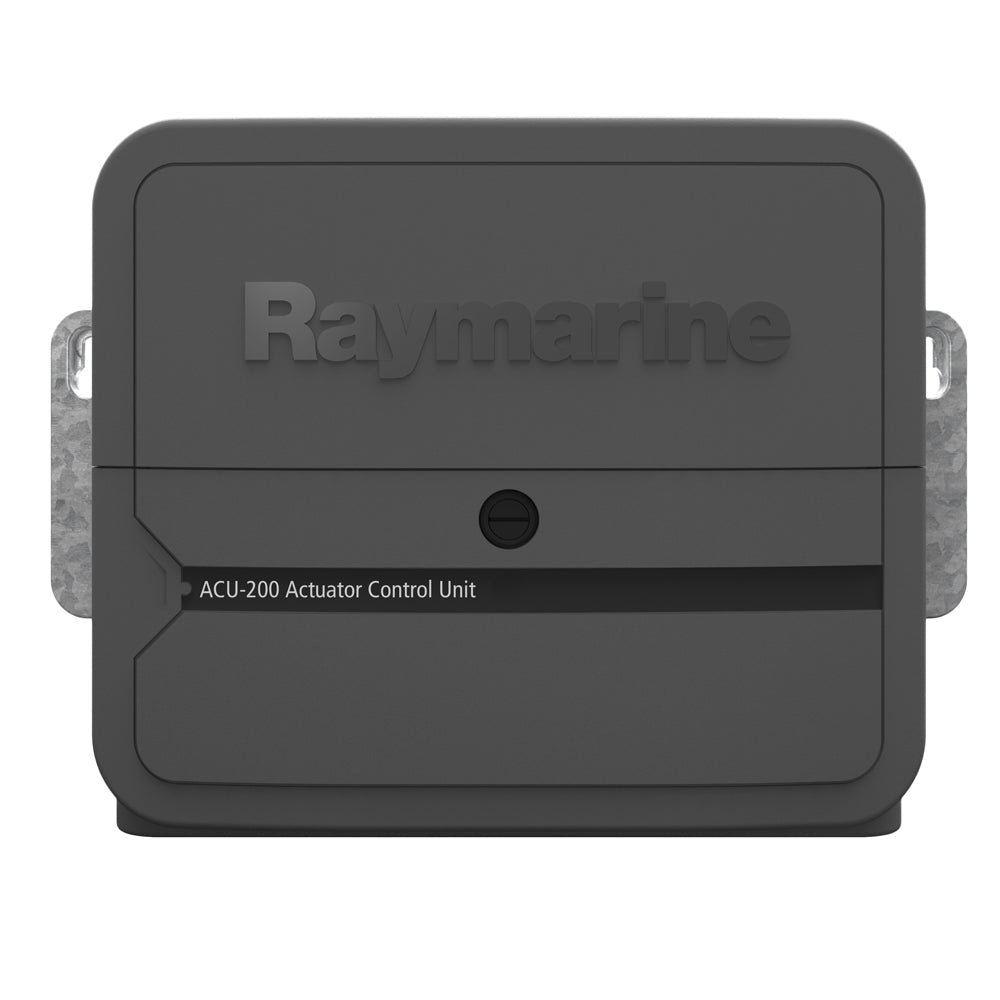

Raymarine ACU200 Acuator Control Unit Use Type 1 Hydraulic Linear Rotary Mechanical Drives E70099

Raymarine ACU-200 Acuator Control Unit - Use Type 1 Hydraulic, Linear & Rotary Mechanical Drives [E70099]

Regular price: $999.99
Sale price: $999.99
Regular price: ~~$0.00~~

In Stock

Autopilot Control Unit (ACU) The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to...

Product variants:

SKU: 225D-49109

Availability

Low Stock Orders by 1PM EST ship today!

Shipping calculated at checkout.

Shipping

Free ShippingOn Qualified Orders Over $150

Support

Talk to a Project Manager(407) 543-8691

10-Day Returns*Hassle-free returns

Secure PaymentsSafe & encrypted checkout

Tech SupportHonest Expert Advice

Description Overview, benefits and key product details. View full product details

Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalk^ng bus. Choose the ACU that fits your steering system type.

Drive Current Output
Maximum continuous 15 Amps at supply voltage
Drive Clutch Output
Up to 2.0 A continuous, selectable between 12 /24 V

Connections

Includes the M81105 Rotary Rudder Reference
Sleep switch
Power
Drive motor
Drive clutch
Ground

Nominal supply voltage
12 V or 24 V
Operating voltage range
10.8V to 31.2V dc
Power Consumption (standby) - Main Power Supply
300 mA (12/24V)
Power Consumption (standby) - SeaTalk^ng Power Supply
20 mA (12V)
SeaTalk^ng LEN (Load Equivalency Number)
1
SeaTalk^ng Power Out
3 Amp at 12V (fuse protected at 3 Amp)
Data Connections
SeaTalk^ng

Installation Environment

Operating Temperature: -20°C to +55°C (-4°F to +131°F)
Storage Temperature: -30°C to +70°C (-22°F to +158°F)
Relative Humidity: MAX 93%

Waterproof rating
Drip resistant
Dimensions (W x H x D)
285mm x 211.5mm x 64.5mm (11.2 in x 8.3 in x 2.5 in)
Weight
2.2kg (4.84lbs)

Conformance

Europe: 2004/108/EC
Australia and New Zealand: C-Tick, Compliance Level 2

Specifications:

Type: Parts
Box Dimensions: 7"H x 11"W x 17"L WT: 6.8 lbs
UPC: 723193768914
