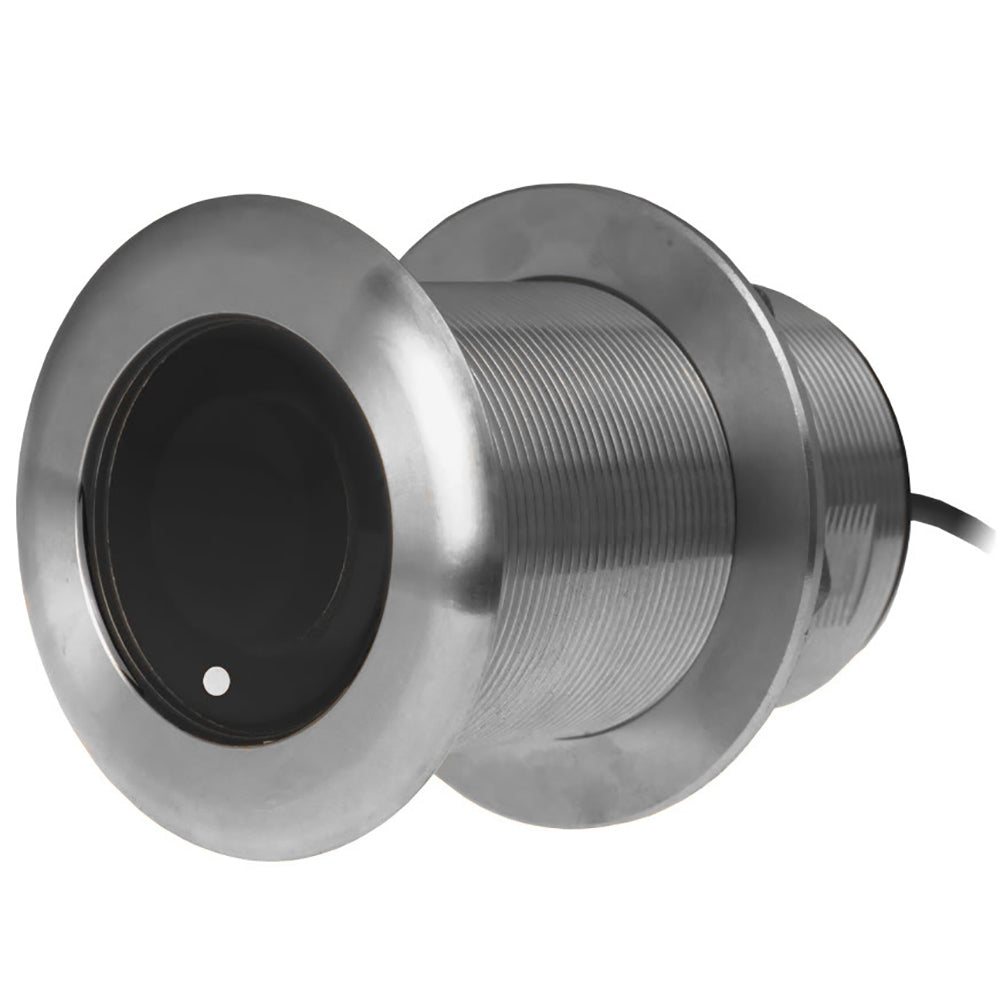

xSonic SS75H Depth/Temperature Transducer 12° - 9-Pin - 600W - 10M Cable

The SS75H is a Stainless Steel, thru-hull, tilted, high-frequency (130-210kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.

Features:

• CHIRP - CHIRP transducers enable bottom detection with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures
• Depth/Temperature - Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings
• Easy To Install
• High Frequency - CHIRP range is 130kHz-210kHz for good target detail in shallow water and excellent bottom tracking in deep water
• Highly Accurate - Provides extremely accurate data.
• 12° Tilt - The 12° tilt is ideal for boats with a 8° to 15° hull deadrise.
• Low Profile - The low profile housing minimizes drag with just 5mm extending outside of the hull.
• Plug & Play Connection - Easily connect to NSSevo3, Lowrance

Specifications:

• Frequency: High CHIRP (130-210kHz)
• Power Rating: 600W
• Speed Sensor: No
• Temperature Sensor: Yes
• Mounting Style: Bronze Thru-Hull
• Elements: 1
• Beamwidth @ -3dB: 15° to 9°

Specifications:

• Temperature: Yes
• Speed Included: No
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: High
• Cable Length (Feet): 33'
• Pins: 9
• Box Dimensions: 5"H x 8"W x 12"L WT: 6 lbs
• UPC: 9420024162675
