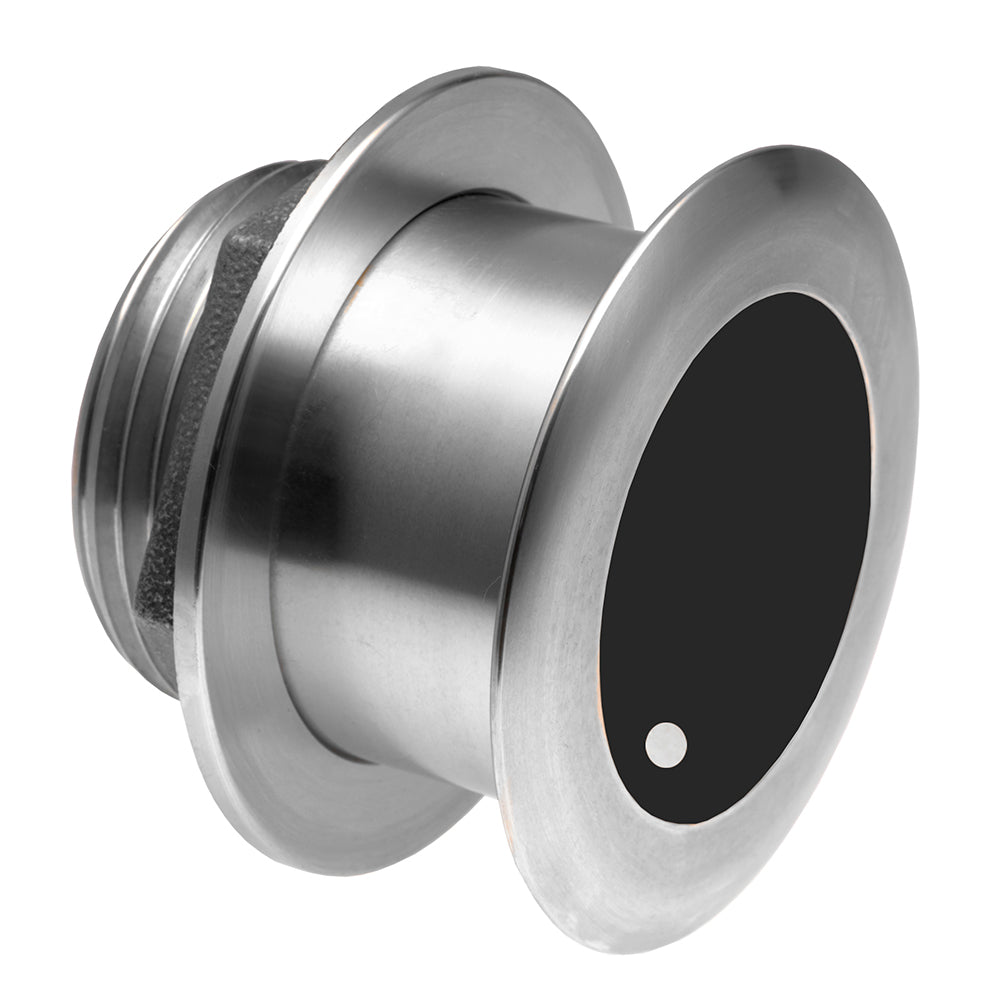

xSonic SS175H-W/12 Stainless Steel Thru-Hull Transducer - 12° - 9-Pin

The SS175H-W is a stainless steel, thru-hull CHIRP transducer, ideal for sportfishing and commercial vessels up to 8M (25') in size. This single-channel transducer offers High CHIRP combined with a wide beam for the best resolution and coverage in shallower depths.

 Features:

• 130-210 kHz High CHIRP with wide 25° beam for excellent fish targets
• Up to 310M (1000') range with High CHIRP
• 1 internal broadband ceramic
• Thru-hull with stainless steel housing
• Suitable for fiberglass and wood hulls
• Ideal for sportfishing and commercial vessels up to 8M (25')
• Recommended for use with Simrad NSSevo3 Lowrance HDS Gen3 multifunction displays

Specifications:

• Speed Included: No
• Pins: 9
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: High Wide
• Cable Length (Feet): 33'
• Temperature: Yes
• Box Dimensions: 8"H x 10"W x 12"L WT: 10 lbs
• UPC: 9420024161920
