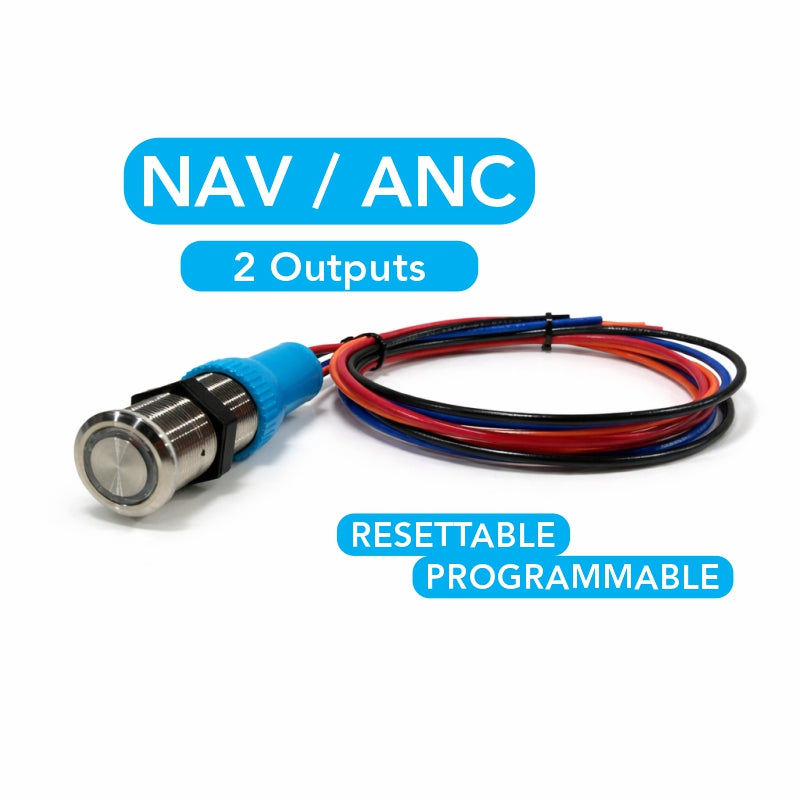

22mm Bluewater Resettable Navigation / Anchor Push Button Combo

Dual Output Switch 10 Amps Output 1 /

10 Amps Output 2

Built for heavy-duty marine applications, this switch handles high surge currents with ease—perfect for pumps, motors, and other demanding onboard equipment.

8 Programmable Amp positions: 3, 5, 6, 7.5, 10, 15, 20, 0

Select the correct amp rating for the device you will connect to the switch, and we’ll program it for you before shipping. If you ever need to adjust the switch’s amp protection setting, simply call us directly and we’ll walk you through the process—no need to remove the switch from the panel. The programming takes about one minute. Easy!

Built for Harsh Marine Conditions

• Encased in corrosion-resistant SS316 stainless steel

• Rated IP69K waterproof with Bluewater’s proprietary Deutsch-style connectors

• Resistant to salt spray, heat, vibration, and shock

Easy to See and Control

• Blue LED backlighting for night visibility

• LED shifts to bright red when active—instant confirmation of pump or device status

• Fully detachable actuator for customization of style and function

Reliable Power Handling

• Rated for 20 amps on a single channel

• Rated for 10 amps per channel in dual-channel use

• Impact resistant and designed for long-lasting performance

  MORE INFORMATION ABOUT THIS SWITCH

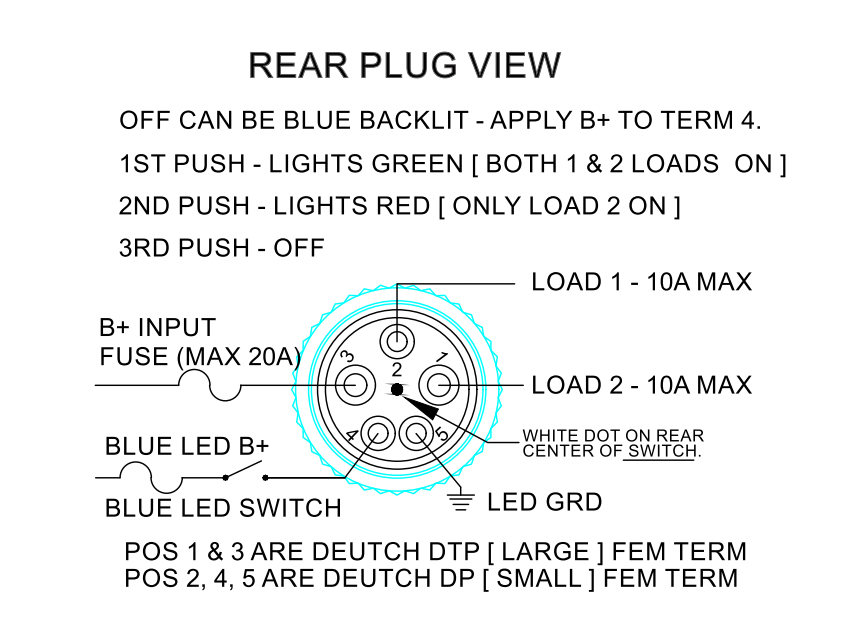

  • Wiring Data & Troubleshooting
