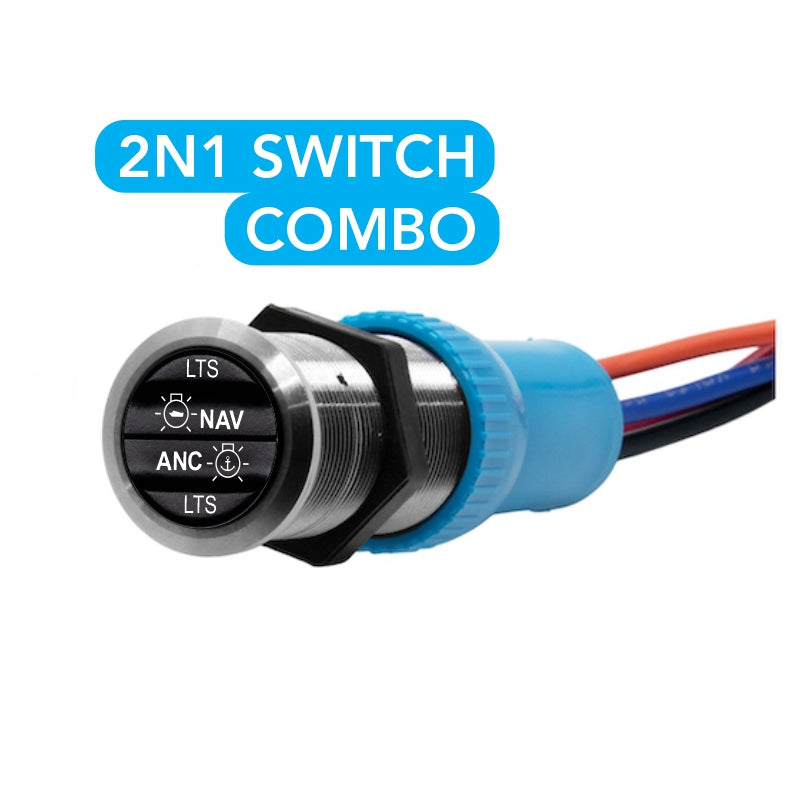

Bluewater NAV/ANC actuator switch labeled LTS, NAV and ANC for navigation/anchor lights

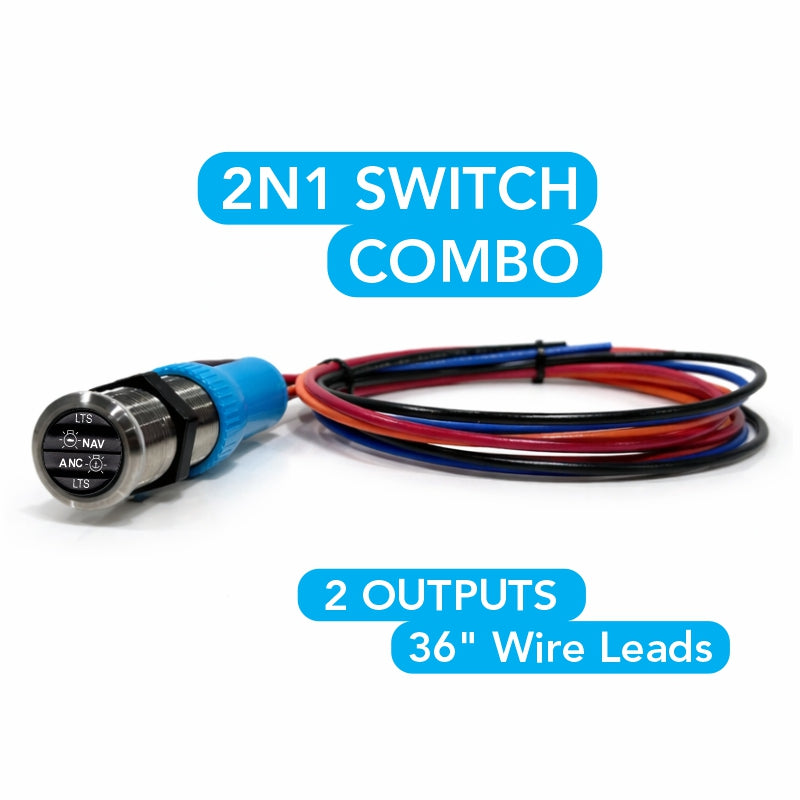

2-in-1 marine nav/anchor light switch, angled view showing metal face, blue connector and 36" wire leads.

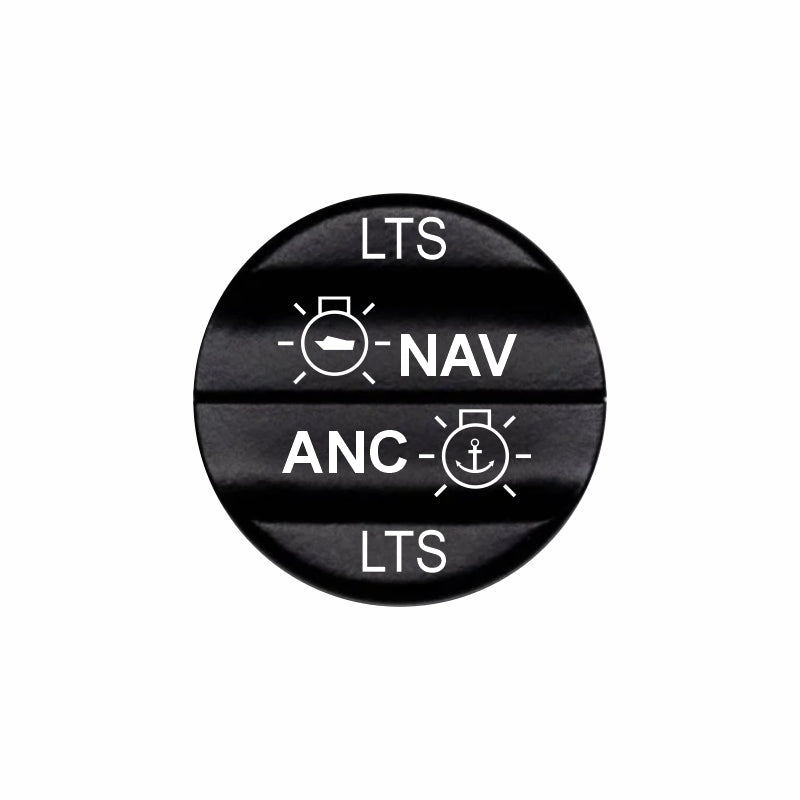

Bluewater NAV/ANC LTS laser-etched round actuator labeled NAV and ANC
1 / 3
Bluewater NAV/ANC actuator switch labeled LTS, NAV and ANC for navigation/anchor lights
2-in-1 marine nav/anchor light switch, angled view showing metal face, blue connector and 36" wire leads.
Bluewater NAV/ANC LTS laser-etched round actuator labeled NAV and ANC
    Bluewater NAV/ANC actuator switch labeled LTS, NAV and ANC for navigation/anchor lights
    2-in-1 marine nav/anchor light switch, angled view showing metal face, blue connector and 36" wire leads.
    Bluewater NAV/ANC LTS laser-etched round actuator labeled NAV and ANC
Bluewater NAV/ANC actuator switch labeled LTS, NAV and ANC for navigation/anchor lights
2-in-1 marine nav/anchor light switch, angled view showing metal face, blue connector and 36" wire leads.
Bluewater NAV/ANC LTS laser-etched round actuator labeled NAV and ANC
1 / 3

NAV/ANC LIGHTS

$79.99
$79.99
$83.99
In Stock
Shipping calculated at checkout.
22mm 2N1 Switch Combo / Double Latching Function , 316 SS Body, Two outputs (10A/Load - 20A Total)

SKU: 225M-BW2N1SC-002

Availability
In Stock Orders by 1PM EST ship today!
Shipping
Free ShippingOn Qualified Orders Over $150
Support
Talk to a Project Manager(407) 543-8691
10-Day Returns*Hassle-free returns
Secure PaymentsSafe & encrypted checkout
Tech SupportHonest Expert Advice
You May Also Need
Product Information

Everything You Need to Know

Select a section to view product details, specifications, shipping information and support.

Description Overview, benefits and key product details. View full product details

Bluewater 2N1 Full Switch Combo: Navigation / Anchor Lights v2

 Reduce Cost and Space in your switch panel

The 2N1 Switch is your all-in-one Marine Switch Solution, designed to handle high-demand systems with precision, durability, and flexible control.

Product Specifications

  • Switch Body P/N: 9059-7014
  • Outputs: 2
  • Switch Plug: 5 Wires / 36" Length
  • Actuator Type: 2N1 Compatible P/N: 225M-BW2N1C-_ _ _



Electrical Specifications

  • Illumination: Blue, Green, Red, Yellow, Purple, White LED
  • Voltage Rating: 9VDC – 24VDC
  • Current Rating: 20A at 12VDC, 80A surge for 200 ms
  • Reverse Polarity Protection: 24VDC
  • Initial Contact Resistance: ≤ 10 mΩ
  • Overload Protection: ≥120A with flashing white LED indication
  • Overload Behavior: Outputs do not function during overload
  • Reset Method: Switch is reset by pressing the button

Durability & Performance

  • Mechanical Life: 50,000 cycles
  • Electrical Life Contact: 10,000 cycles
  • Insulation Resistance: 50 MΩ maximum
  • Resistance: 1000 MΩ minimum
  • Dielectric Strength: 2,000 VAC
  • Operating / Storage Temperature: -20°C to +55°C
  • Travel: 1.50 mm
  • Moisture Protection: IP69K
  • Contact Material: Silver alloy
  • Actuation Force: 4 N
  • Panel Thickness: 1–6 mm
  • Mounting Nut Torque: 5–14 Nm

Construction Material

  • Body Material: Stainless Steel SS316
  • Lens Material: PC material rated to 105°C
  • Switch Plug & Dongle: Nylon 6 rated to 105°C

Shipping

This product qualifies for free shipping on orders over $150

We ship orders via UPS, as well as other reliable carriers when
necessary. Orders are typically processed within 1–3 business days unless otherwise
stated.

For more information, check our shipping policy.

Returns

We want you to be completely satisfied with your purchase. Most unused, unopened, non-custom, and non-special-order products may be returned within 10 calendar days of delivery for a refund or store credit, less original shipping costs and any applicable return fees.

For more information, check our Refund & Return Policy

What's comes in the Box?

2N1 Switch Body, Nut, Laser Etched Actuators (2 Pieces: A & B) & 36" 5 Wire leads Switch Plug
