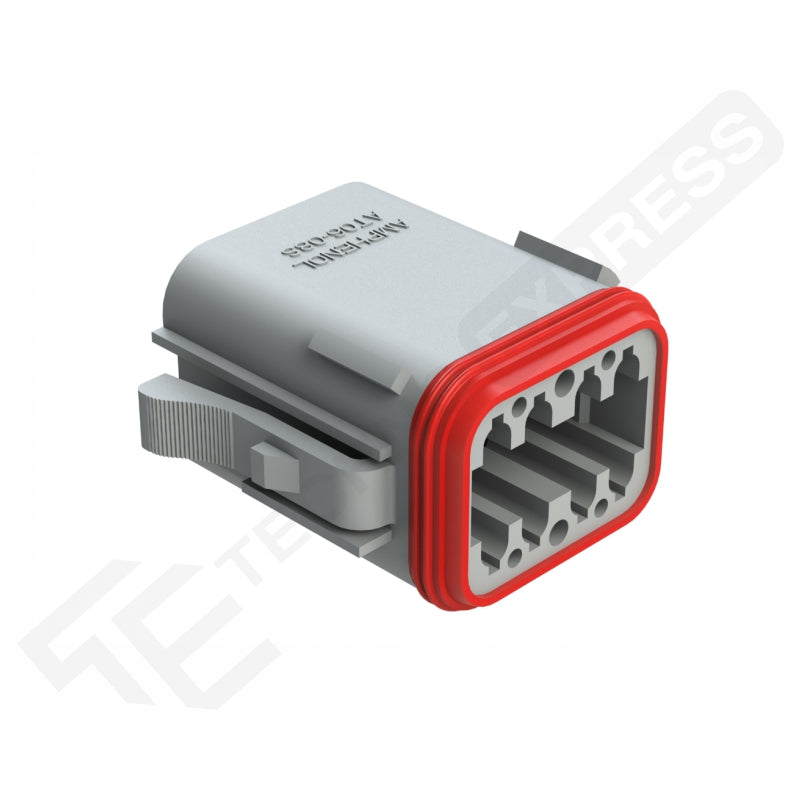

Amphenol AT06-8SA 8-way female DT plug connector with red sealing gasket

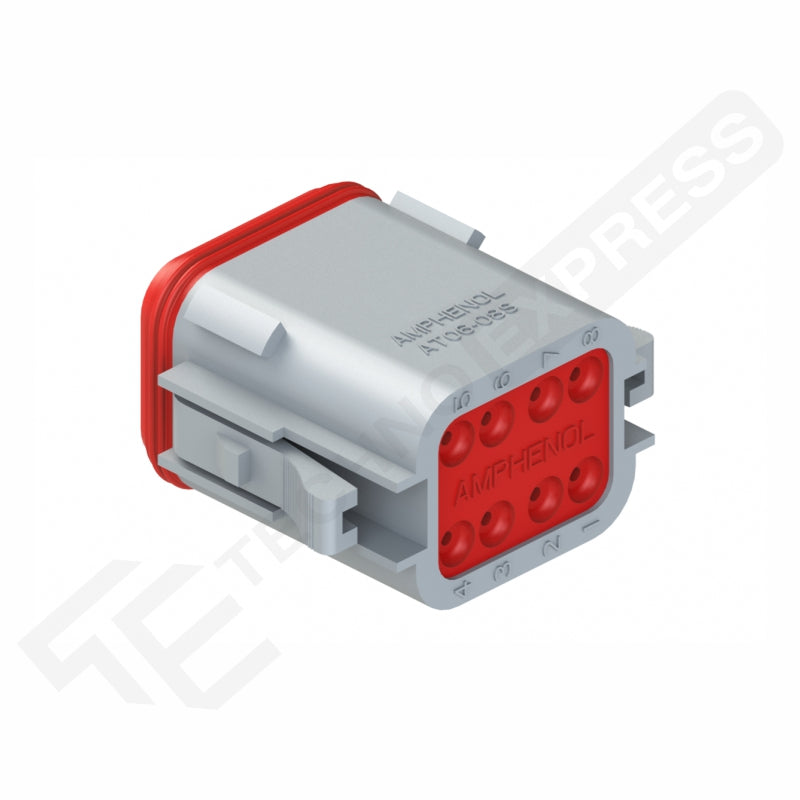

Amphenol AT06-8SA female DT 8-way plug, three-quarter front view showing red contact cavities, latch and seal.
1 / 2
Amphenol AT06-8SA 8-way female DT plug connector with red sealing gasket
Amphenol AT06-8SA female DT 8-way plug, three-quarter front view showing red contact cavities, latch and seal.
    Amphenol AT06-8SA 8-way female DT plug connector with red sealing gasket
    Amphenol AT06-8SA female DT 8-way plug, three-quarter front view showing red contact cavities, latch and seal.
Amphenol AT06-8SA 8-way female DT plug connector with red sealing gasket
Amphenol AT06-8SA female DT 8-way plug, three-quarter front view showing red contact cavities, latch and seal.
1 / 2

AT06-8SA 8-Way Plug, Female

$3.50
$3.50
$4.19
In Stock
Shipping calculated at checkout.
AT06-8SA / AT06-8SA 8-Way Plug, Female

SKU: 225D-AT06-8SA

Availability
In Stock Orders by 1PM EST ship today!
Shipping
Free ShippingOn Qualified Orders Over $150
Support
Talk to a Project Manager(407) 543-8691
10-Day Returns*Hassle-free returns
Secure PaymentsSafe & encrypted checkout
Tech SupportHonest Expert Advice
You May Also Need
Product Information

Everything You Need to Know

Select a section to view product details, specifications, shipping information and support.

Description Overview, benefits and key product details. View full product details

The connection we recommend when failure is not an option offshore. AT06-8SA Plug

  • 13 Amps or Less

  • 10 Part AT Connector (8 Pins, Lock & Plug)

  • 14-20 AWG (2.0-0.5mm²)

  • Contacts Included: No

 Built for harsh marine, automotive, heavy equipment, and other demanding environments, they provide reliable sealed connections that help protect against moisture, vibration, and corrosion.


SPECIFICATIONS:

  • No. of Positions: 8
  • Mating Part(s)*: 225D-AT04-8PA Receptacle
  • Amperage: 13A (FOR HIGHER AMP RATE USE DTP CONNECTORS)
  • Wire Range: 14-20 AWG (2.0-0.5mm²)
  • Same part as Deutsch DT06-8SA
  • Contacts Included: No
  • Contact Type (Pin/Socket): Socket
  • Gender: Female
  • Housing Material: Thermoplastic
  • Voltage Rating: 250V
  • Shape: Rectangular
  • Color: Grey
  • IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
  • Operating Temperature: -55°C to +125°C
  • Seal Material: Silicone Elastomer
  • Seal Diameter: 2.24mm (.088") - 3.68mm (.145")
  • End Cap/Rear Seal Dimensions: .088" - .145"
  • Mating Cycle Durability: >100
  • RoHS Compliant: Yes
  • Wedge Part#: AW8S
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
  • PRODUCT DRAWING
Shipping

We ship orders via UPS, as well as other reliable carriers when
necessary. Orders are typically processed within 1–3 business days unless otherwise
stated.

For more information, check our shipping policy.

Returns

We want you to be completely satisfied with your purchase. Most unused, unopened, non-custom, and non-special-order products may be returned within 10 calendar days of delivery for a refund or store credit, less original shipping costs and any applicable return fees.

For more information, check our Refund & Return Policy

What's comes in the Box?

1 x AT06-8SA 8-Way Plug, Female
