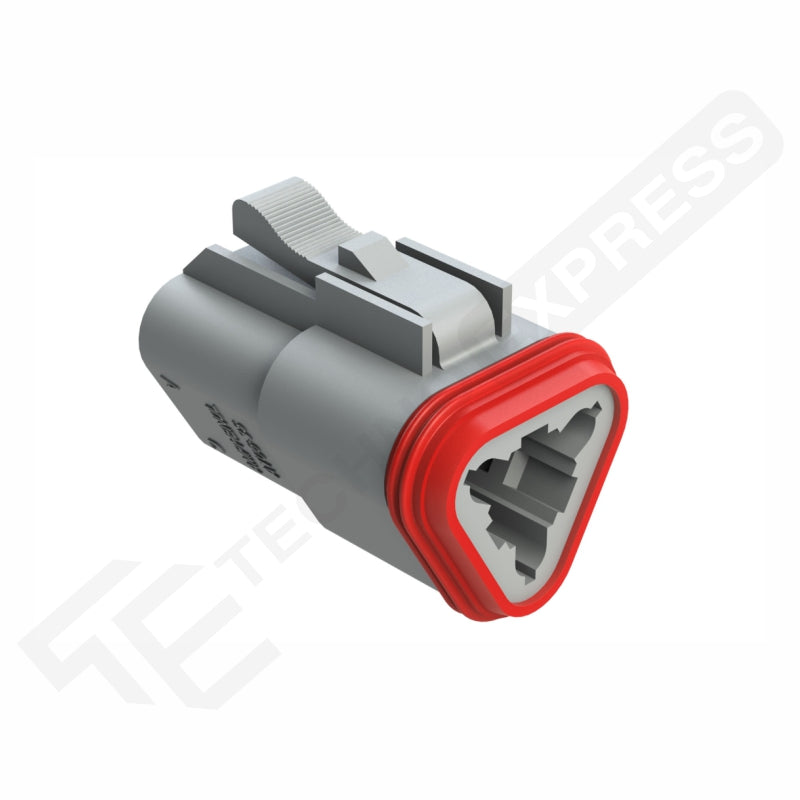

Amphenol AT06-3S 3-way female DT connector with red triangular sealing gasket

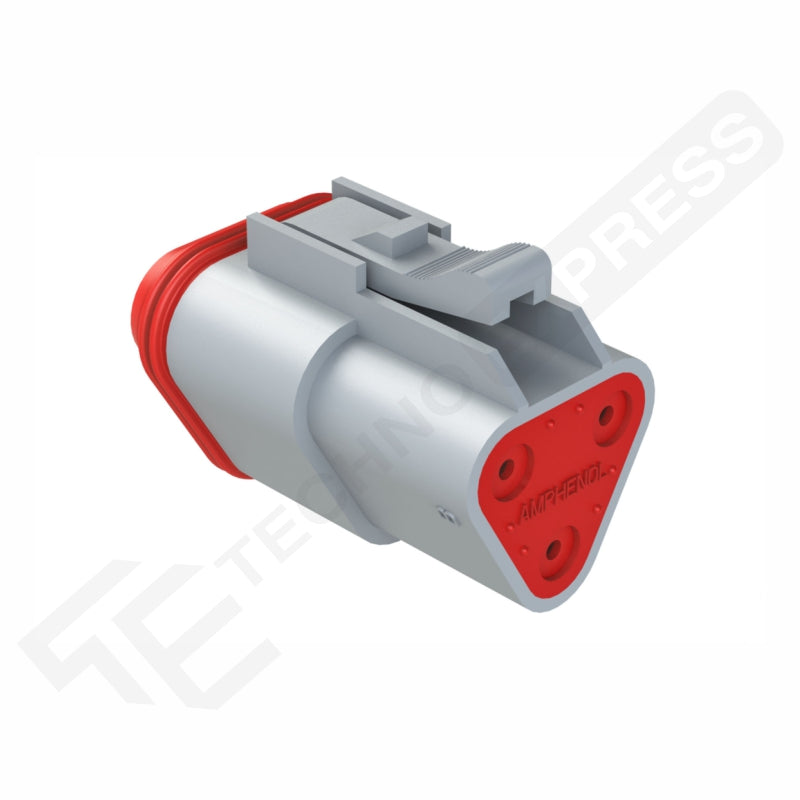

Amphenol DT 3-way female plug, rear-side angle showing latch, red gasket and three circular sockets
1 / 2
Amphenol AT06-3S 3-way female DT connector with red triangular sealing gasket
Amphenol DT 3-way female plug, rear-side angle showing latch, red gasket and three circular sockets
    Amphenol AT06-3S 3-way female DT connector with red triangular sealing gasket
    Amphenol DT 3-way female plug, rear-side angle showing latch, red gasket and three circular sockets
Amphenol AT06-3S 3-way female DT connector with red triangular sealing gasket
Amphenol DT 3-way female plug, rear-side angle showing latch, red gasket and three circular sockets
1 / 2

AT06-3S 3-Way Plug, Female

$2.10
$2.10
$2.99
AT06-3S / DT06-3S3-Way Plug, Female

SKU: 225D-AT06-3S

Availability
In Stock Orders by 1PM EST ship today!
Shipping calculated at checkout.
Shipping
Free ShippingOn Qualified Orders Over $150
Support
Talk to a Project Manager(407) 543-8691
60-Day Returns30 days on electronics
Secure PaymentsSafe & encrypted checkout
Tech SupportHonest Expert Advice
Description Overview, benefits and key product details. View full product details

The connection we recommend when failure is not an option offshore. AT06-3S Plug

  • 13 Amps or Less

  • 5 Part AT Connector (3 Pins, lock & Plug)

  • 14-20 AWG (2.0-0.5mm²)

  • Contacts Included: No

 Built for harsh marine, automotive, heavy equipment, and other demanding environments, they provide reliable sealed connections that help protect against moisture, vibration, and corrosion.


SPECIFICATIONS:

  • No. of Positions: 3
  • Mating Part(s)*: 225D-AT04-3P Receptacle
  • Amperage: 13A (FOR HIGHER AMP RATE USE DTP CONNECTORS)
  • Wire Range: 14-20 AWG (2.0-0.5mm²)
  • Same part as Deutsch DT06-3S
  • Contacts Included: No
  • Contact Type (Pin/Socket): Socket
  • Gender: Female
  • Housing Material: Thermoplastic
  • Voltage Rating: 250V
  • Shape: Rectangular
  • Color: Grey
  • IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
  • Operating Temperature: -55°C to +125°C
  • Seal Material: Silicone Elastomer
  • Seal Diameter: 2.24mm (.088") - 3.68mm (.145")
  • End Cap/Rear Seal Dimensions: .088" - .145"
  • Mating Cycle Durability: >100
  • RoHS Compliant: Yes
  • Wedge Part#: AW3S
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
  • PRODUCT DRAWING
Shipping

We ship orders via UPS, as well as other reliable carriers when
necessary. In Stock Orders by 1PM EST ship today!

For more information, check our shipping policy.

Returns

We want you to be completely satisfied with your purchase. Unused, uninstalled products in their original packaging may be returned within 60 calendar days of delivery for a refund or exchange (30 days for marine electronics). Customer is responsible for return shipping.

All products are covered by a 2-year warranty (marine electronics: 1 year, then the manufacturer's warranty).

For more information, check our Refund & Return Policy

What's comes in the Box?

1 x AT06-3S 3-Way Plug, Female
