Forward and Reverse Relay Module

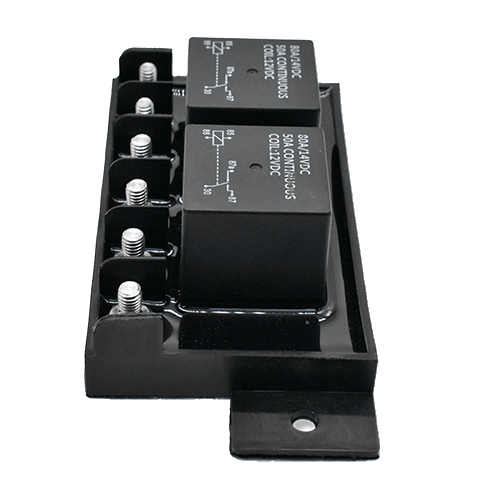

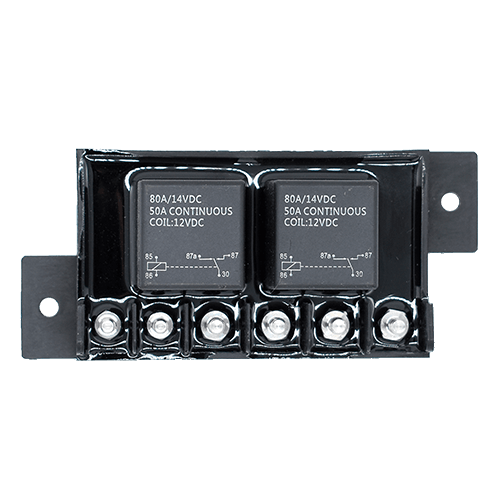

Bluewater Forward and Reverse Relay Module

This marine grade Forward and Reverse Relay Module automatically changes the direction of the motor when triggered and uses dynamic braking to stop the motor when the switch returns to the OFF position.

This module also provides dynamic braking, stopping the motor immediately when the control switch is returned to the off position. This improves control precision and reduces unnecessary wear on mechanical components.

Specifications:

• Low Profile: 88” x 2.20” x 1.37”
• Waterproof: Sealed, Potted, IP67 rated
• Made For Saltwater: Tin-plated brass studs and hardware for corrosion resistance
• Runs 50A at 12VDC for Intermittent Loads
• Runs 30A at 12 VDC for Continuous Loads

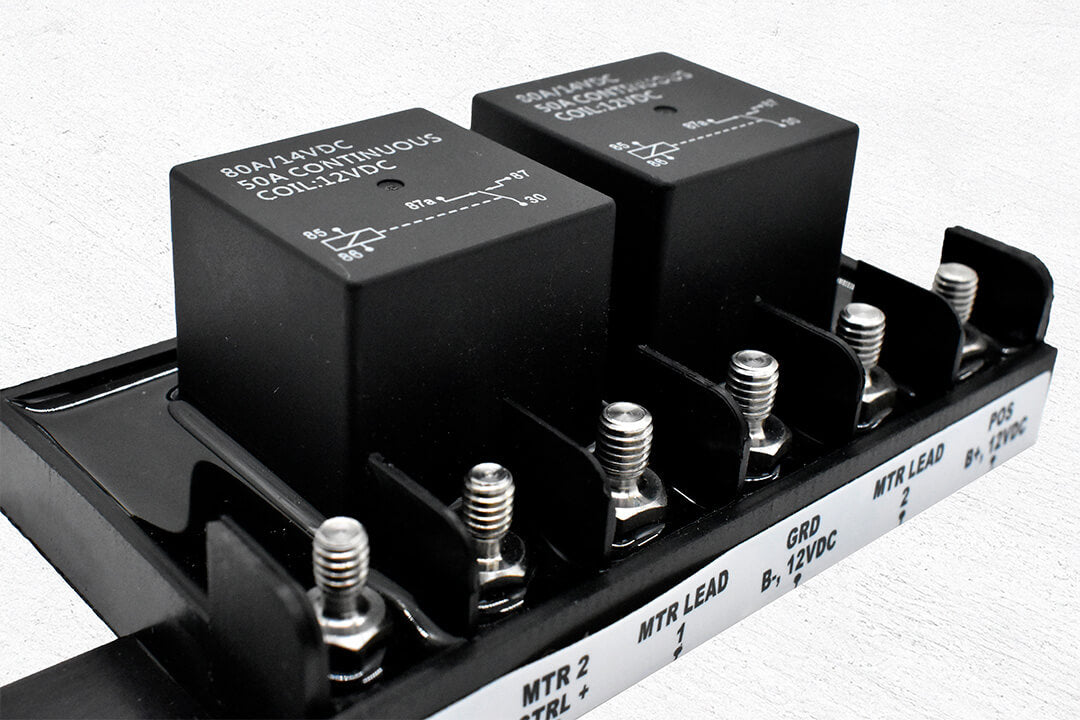

• Stud Size: 10-32 (x4), 8-32 (x2)

Common Applications:

• Trim tabs and hatch lifts
• Hoists and winches
• Actuators and lift systems
• Tarp systems and ventilation fans
• Marine, RV, and industrial motor control
