Bluewater 6 & 12 Position Fuse Block
- Regular price
- $49.99
- Sale price
- $49.99
- Regular price
-
SKU: 225D-3200-3003-006
Couldn't load pickup availability
Everything You Need to Know
Select a section to view product details, specifications, shipping information and support.
Description Overview, benefits and key product details. View full product details

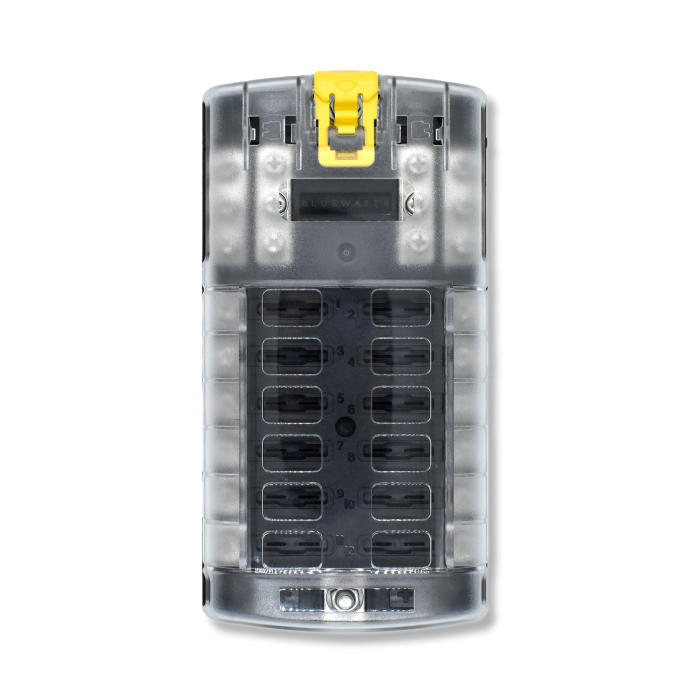

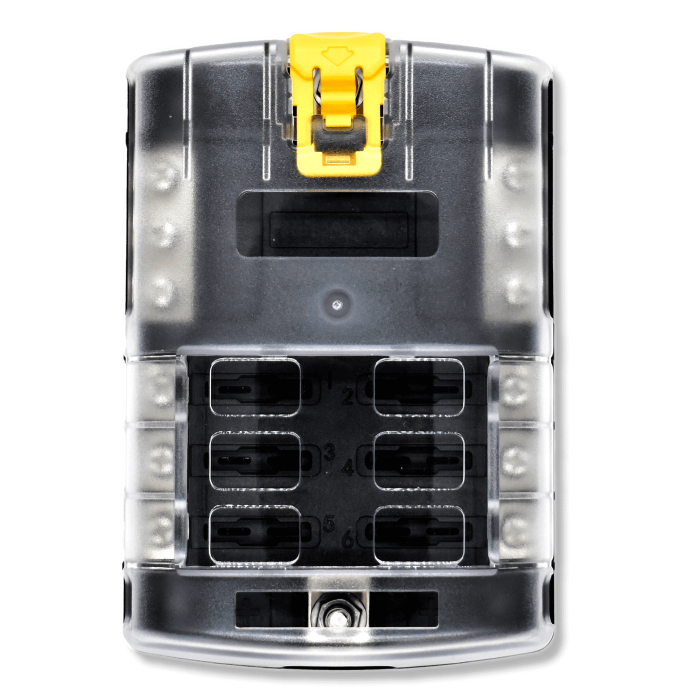

This 6 and 12 position marine fuse block offers a clean, organized solution for managing low-voltage electrical circuits in boats, RVs and off-grid systems. Designed to centralize and protect up to 12 independent circuits, it provides dependable circuit separation for complex power layouts.
Rated for 48V DC systems and up to 100A of input current, the block uses M5 threaded studs for the main input and M4 threaded studs for outputs, supporting up to 25A per circuit. It’s compatible with 88 Series breakers.
Built with stainless steel hardware, nickel-plated copper conductors, and a tough polycarbonate body, this marine fuse block is made to withstand demanding environments. Mounting is straightforward with 0.1750” holes, spaced at 3.709” H x 2.331” W for the 6-position model and 5.285” H x 2.325” W for the 12-position version.
Whether you’re building out a new power system or cleaning up an existing one, this fuse block delivers professional-grade performance and a tidy, serviceable layout.
Specifications:
- Max Voltage: 48V DC
- Input Current: 100A
- Breaker Type: 88 Series/BW 38 Series
- Input Terminal Rating: M5 Threaded Studs (100A max)
- Output Terminal Rating: M4 Threaded Studs (25A max)
- Material: Stainless Steel/Nickel-plated Copper/Polycarbonate
Installation:
-
M5 main connecting studs
-
Mounting Holes: 0.1750”
-
Distance Between Mounting Holes:
6 Position: 3.709” H / 2.331” W
12 Position: 5.285” H / 2.325” W
Shipping
We ship orders via UPS, as well as other reliable carriers when
necessary. Orders are typically processed within 1–3 business days unless otherwise
stated.
For more information, check our shipping policy.
Returns
We want you to be completely satisfied with your purchase. Most unused, unopened, non-custom, and non-special-order products may be returned within 10 calendar days of delivery for a refund or store credit, less original shipping costs and any applicable return fees.
For more information, check our Refund & Return Policy
What's comes in the Box?
6/12 Position Breaker Block with Clear Cover (Breakers sold by separate)
