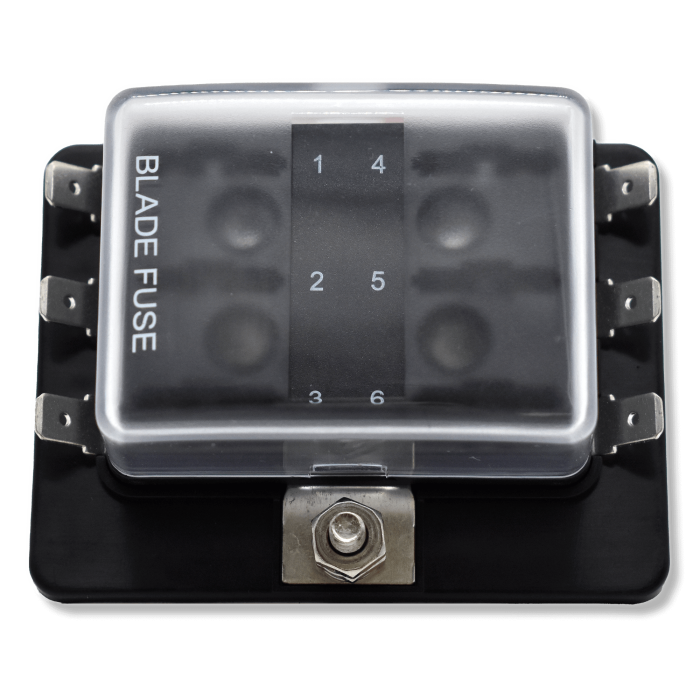

Bluewater 6 Position Beaker Block w-Cover [3200-2001-006]
Top view of fuse block with clear hinged cover, numbered slots, mounting stud and side blade terminals
1 / 2
Bluewater 6 Position Beaker Block w-Cover [3200-2001-006]
Top view of fuse block with clear hinged cover, numbered slots, mounting stud and side blade terminals
    Bluewater 6 Position Beaker Block w-Cover [3200-2001-006]
    Top view of fuse block with clear hinged cover, numbered slots, mounting stud and side blade terminals
Bluewater 6 Position Beaker Block w-Cover [3200-2001-006]
Top view of fuse block with clear hinged cover, numbered slots, mounting stud and side blade terminals
1 / 2

Bluewater 6 & 10 Position Fuse Block

$26.99
$26.99
6 & 10 Position Fuse Block
Trip Rating:

SKU: 225D-3200-100-006

Availability
In Stock Orders by 1PM EST ship today!
Shipping calculated at checkout.
Shipping
Free ShippingOn Qualified Orders Over $150
Support
Talk to a Project Manager(407) 543-8691
60-Day Returns30 days on electronics
Secure PaymentsSafe & encrypted checkout
Tech SupportHonest Expert Advice
Description Overview, benefits and key product details. View full product details

This 6 and 10 position fuse block is designed to accommodate standard fuses, providing clean and reliable protection for up to 30 amps per circuit. Ideal for marine and mobile installations, it helps centralize low-voltage circuits in a compact, organized panel.

The fuse block supports a maximum voltage of 48V DC and an input current of up to 100 amps. It features .250 tabs rated for 30A each, allowing quick and secure connections for individual circuits. Constructed with stainless steel, nickel-plated copper, and durable polycarbonate materials, it is built to withstand demanding environments.

Mounting holes measure 0.1695 inches and the spacing between holes varies depending on the model: the 6-position block measures 0.65 inches high by 1.125 inches wide, while the 10-position block measures 1.925 inches high by 1.125 inches wide.

This fuse block offers an efficient, neat solution for wiring and protecting multiple circuits in your system.

Specifications:

  • Max Voltage: 48V DC
  • Input Current: 100A
  • Breaker Type: 88 Series/BW 38 Series
  • Input Terminal Rating: M5 Threaded Studs (100A max)
  • Output Terminal Rating: M4 Threaded Studs (25A max)
  • Material: Stainless Steel/Nickel-plated Copper/Polycarbonate

Installation:

  • M5 main connecting studs

  • Mounting Holes: 0.1695”

  • Distance Between Mounting Holes:

    6 Position: 0.65” H / 1.125” W

    10 Position: 1.925” H / 1.125” W

Shipping

We ship orders via UPS, as well as other reliable carriers when
necessary. In Stock Orders by 1PM EST ship today!

For more information, check our shipping policy.

Returns

We want you to be completely satisfied with your purchase. Unused, uninstalled products in their original packaging may be returned within 60 calendar days of delivery for a refund or exchange (30 days for marine electronics). Customer is responsible for return shipping.

All products are covered by a 2-year warranty (marine electronics: 1 year, then the manufacturer's warranty).

For more information, check our Refund & Return Policy

What's comes in the Box?

6/10 Position Breaker Block with Clear Cover (Breakers sold by separate)
