Custom Boat Switch Panels and How to Order One
On this page
Marine Switch Panel Guide
A switch panel should match the way your boat is actually wired and used. This guide explains when a standard Panel Builder layout is enough, when a fully custom panel makes more sense, and the types of switch functions you can plan into the helm.
There are two practical ways to get a new switch panel from Techno Express. A standard panel configuration works well when the opening is already known and the project fits a proven rectangular layout. A fully custom switch panel becomes the better route when the dash shape, mounting, electronics or wiring need to be designed around the boat.
The key is to decide what the panel needs to control before choosing the physical layout. Lighting, pumps, livewell systems, electronics, navigation equipment and auxiliary circuits all compete for limited helm space.
Panel Builder or Fully Custom Switch Panel?
Use a standard panel layout when the switch bank is a straightforward rectangle, the available space is already known and the project does not require the entire helm to be redesigned. Move to a fully custom panel when the panel has to follow an irregular console, integrate displays or gauges, use a different mounting strategy, or coordinate more complex wiring behind the dash.
How the Two Approaches Differ
Compare the two routes by the part of the project that matters most: fit, design flexibility, switch style, mounting and wiring.
Best for
Quick replacements and new builds using standard panel sizes.
Irregular dashes, full helm rebuilds, custom layouts and integrated electronics.
Design
You choose the panel size, switch functions and available configuration.
The layout is designed around the dash, equipment, switch functions and mounting requirements.
Switch style
Contura V rocker or compatible standard configurations.
Rocker switches, push buttons, protection and accessories can be planned together.
Mounting
Standard geometry with the hardware specified for that panel.
Mounting can be planned around the project, including visible or concealed fasteners.
Wiring
Assembly and jumper options depend on the selected panel.
More complete pre-wiring and documentation can be specified as part of the custom project.
What Can You Put on a Boat Switch Panel?
The full switch library is much larger than a blog needs to reproduce. These 20 representative functions show the types of controls available without turning the article into a product catalog. They are grouped by how boat owners typically think about the helm.
Navigation & Safety
-
NAVIGATION LIGHTSC1-001
-
ANCHOR LIGHTSC1-002
-
HORNC1-025
-
VHF RADIOC1-043
Pumps & Livewell
-
BILGEC1-003
-
BILGE AFTC1-004
-
WASH DOWNC1-019
-
LIVEWELLC1-069
Lighting
-
SPREADER LIGHTSC1-012
-
COURTESY LIGHTSC1-020
-
UNDERWATER LIGHTSC1-023
-
COCKPIT LIGHTSC1-065
Electronics & Helm
-
ELECTRONICSC1-024
-
RADARC1-036
-
SONARC1-048
-
CHARTPLOTTERC1-052
Boat Systems
-
FRESH WATERC1-017
-
MACERATORC1-040
-
BATTERYC1-054
-
BATTERY PARALLELC1-055
These are examples only. Additional switch functions and labels are available depending on the panel and switch configuration. The individual function cards above are intentionally not linked; the purchase options are grouped together lower on this page.

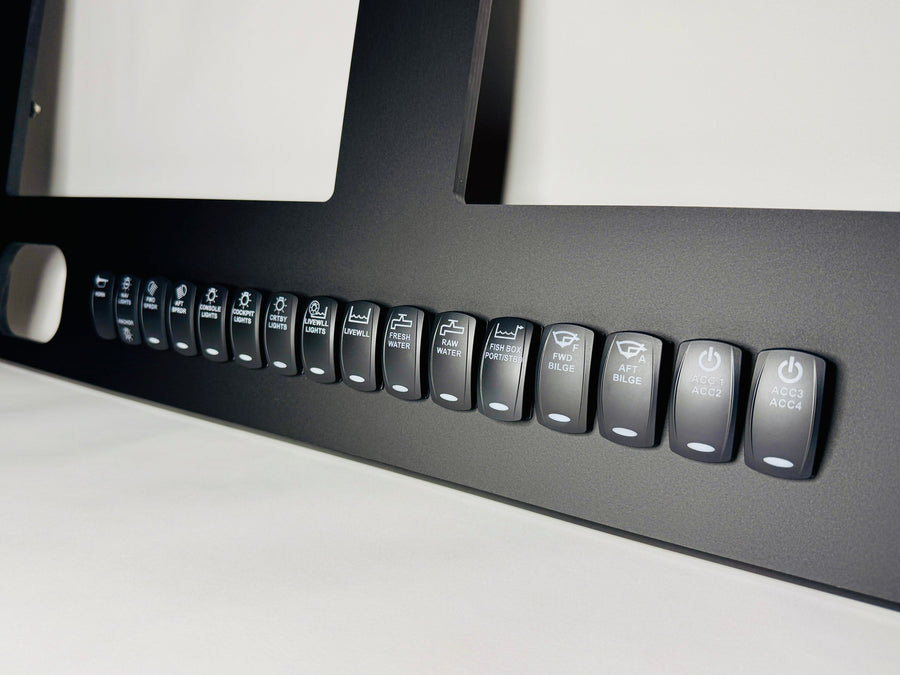

When a Fully Custom Switch Panel Makes More Sense
A custom panel becomes the better route when the panel itself has to adapt to the boat instead of the boat adapting to a standard rectangle.
- Irregular dash shape. The existing opening does not match a standard rectangular panel.
- Full helm redesign. Switches need to be coordinated with gauges, displays or accessories.
- Different mounting requirements. The project calls for another thickness, finish or mounting approach.
- More complex wiring. The electrical strategy needs to be planned together with the face layout.
- Production or repeat builds. Component placement and repeatability matter across multiple boats.
Rocker Switch Layout
Genuine Carling Contura-style rocker switches are a familiar, serviceable choice for marine control panels. They work especially well when clear labeling and straightforward replacement matter.
Push-Button Layout
Push-button configurations create a more integrated helm appearance and can be planned with compatible protection, accessories and backlit labeling.
Panel Thickness and Finish
Panel thickness should be selected around the span, equipment weight, mounting method and final appearance rather than aesthetics alone. Finish choice also matters at the helm: matte surfaces reduce glare and fingerprints, while high-gloss surfaces create a more polished visual treatment.
Mounting Options
Mounting should be decided early because it affects both the face of the panel and the required thickness. Depending on the project, common approaches include pan-head stainless fasteners, countersunk fasteners and concealed studs.
Switches and Circuit Protection
Switch selection and circuit protection need to be planned together. Front-access breakers can simplify service when access behind the helm is limited, while remote protection can keep the front face cleaner when there is adequate service access behind the dash.
What a Pre-Wired Panel Changes
A professionally pre-wired panel reduces the amount of assembly that has to happen at the boat. Instead of treating the front panel and the electrical system as two separate projects, the switch positions, labels, protection and internal connections can be planned as one system.
Important: “Pre-wired” does not make every boat connection universal. The panel still has to be connected to the boat's power, grounds and individual loads correctly, with conductor size and circuit protection matched to the equipment being controlled.
How to Order the Right Panel
Start by deciding whether your project fits one of the standard panel sizes or needs a custom drawing. That decision prevents you from over-engineering a simple replacement—or forcing a complex helm into a panel that was never meant to fit it.
- Document the existing dash. Take clear photos and record the opening, mounting points and available depth behind the panel.
- List every function and device. Include lights, pumps, livewells, electronics, audio, accessories and any new circuits you plan to add.
- Choose the switch style. Decide whether the project calls for rocker switches, push buttons or a more integrated custom layout.
- Plan protection and wiring access. Breakers, fuse blocks, connectors and service access should be decided before the face layout is finalized.
- Choose the panel size. If a standard 3-, 4-, 5- or 6-switch layout fits, you can start with one of the ready-to-build Contura V panels below.
- Verify before production. Confirm dimensions, switch labels, equipment locations and mounting details before the panel is cut or installed.
Standard Panel Builder
Rocker Switch Layout
Push-Button Layout
Pre-Wired Panel
Ready to configure
Start with the Number of Switches You Need
These four Contura V panel sizes are a practical starting point for compact switch banks. Open the panel you need, choose the switch functions, and finish the configuration on the product page.
Prices shown are starting prices and may change based on switch functions, finish, wiring options or future product updates.
Frequently Asked Questions
How do I know whether to use a standard panel or order a custom panel?
Use a standard panel when the opening and switch count fit an existing size. Choose a fully custom route when the panel must follow an irregular dash, integrate several types of equipment, use a different mounting strategy or solve a more complex helm layout.
Can I choose different switch functions?
Yes. Functions can cover navigation lights, pumps, livewell systems, electronics, lighting, water systems, battery controls and other accessory circuits. The exact library depends on the selected panel and switch configuration.
Are rocker switches or push buttons better?
They solve the same basic control problem with different packaging and aesthetics. Rocker switches are familiar and serviceable. Push buttons can create a cleaner, more integrated helm. The right choice depends on layout, circuit design, serviceability and appearance.
Do I still need circuit protection if I have a switch?
Switching and overcurrent protection are separate design requirements unless the specific switching device includes suitable protection. Each circuit should be designed with protection appropriate for the conductor and load.
What if I need more than six switches?
Larger panel sizes are available. The four products above are intentionally limited to compact 3-, 4-, 5- and 6-switch configurations so this guide stays focused instead of reproducing the complete builder catalog.
Should I choose the panel before deciding the switch functions?
List the functions first, then confirm how many switch positions the project actually needs. This reduces the chance of choosing a panel that is too small or adding unnecessary positions simply because space is available.
