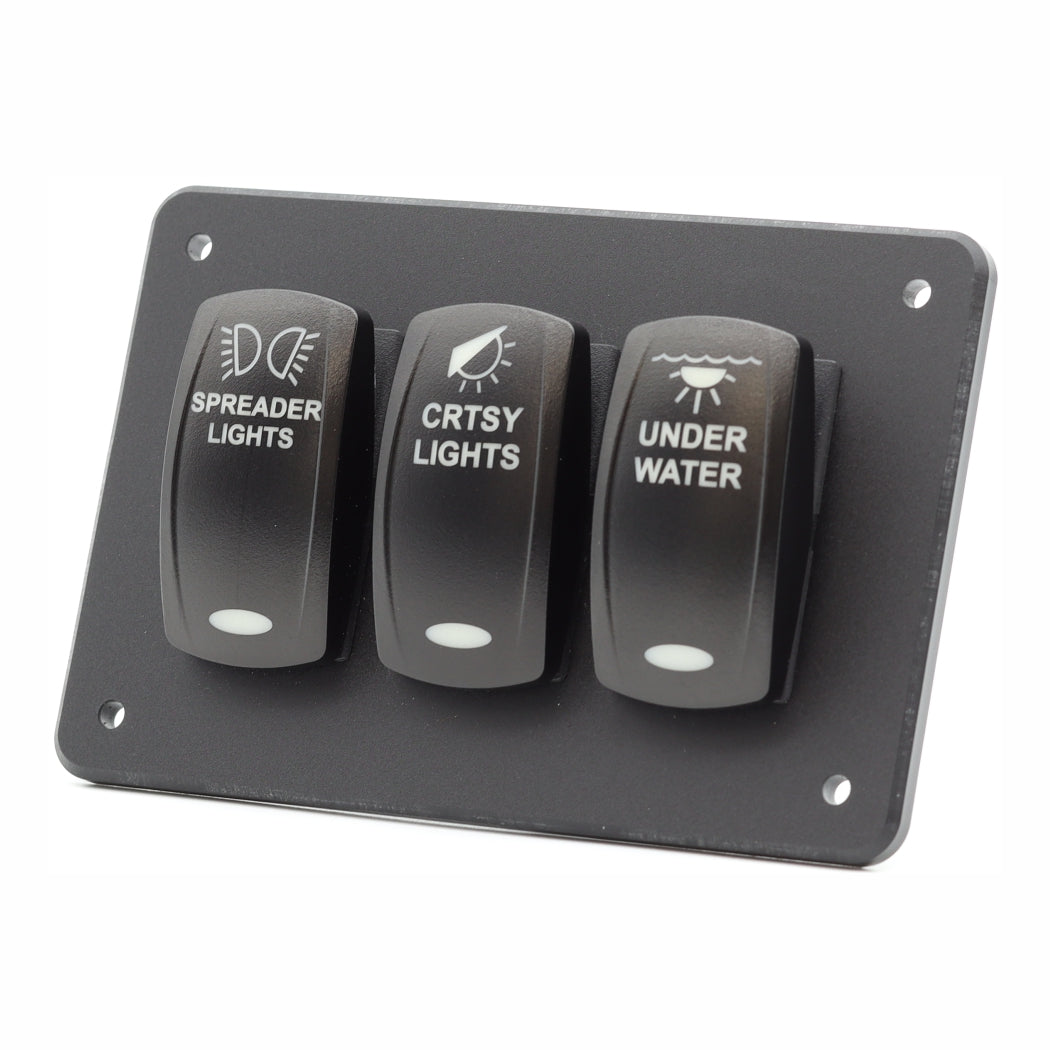

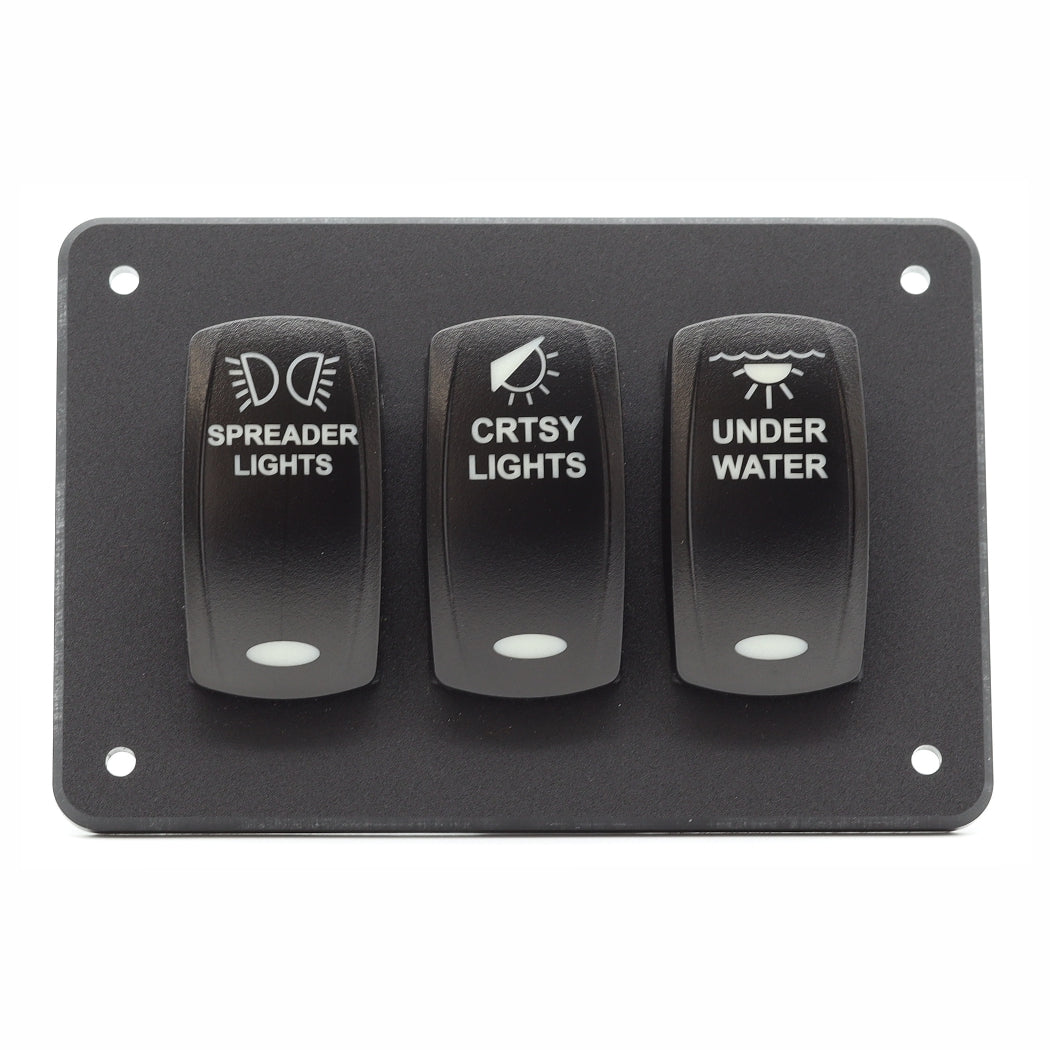

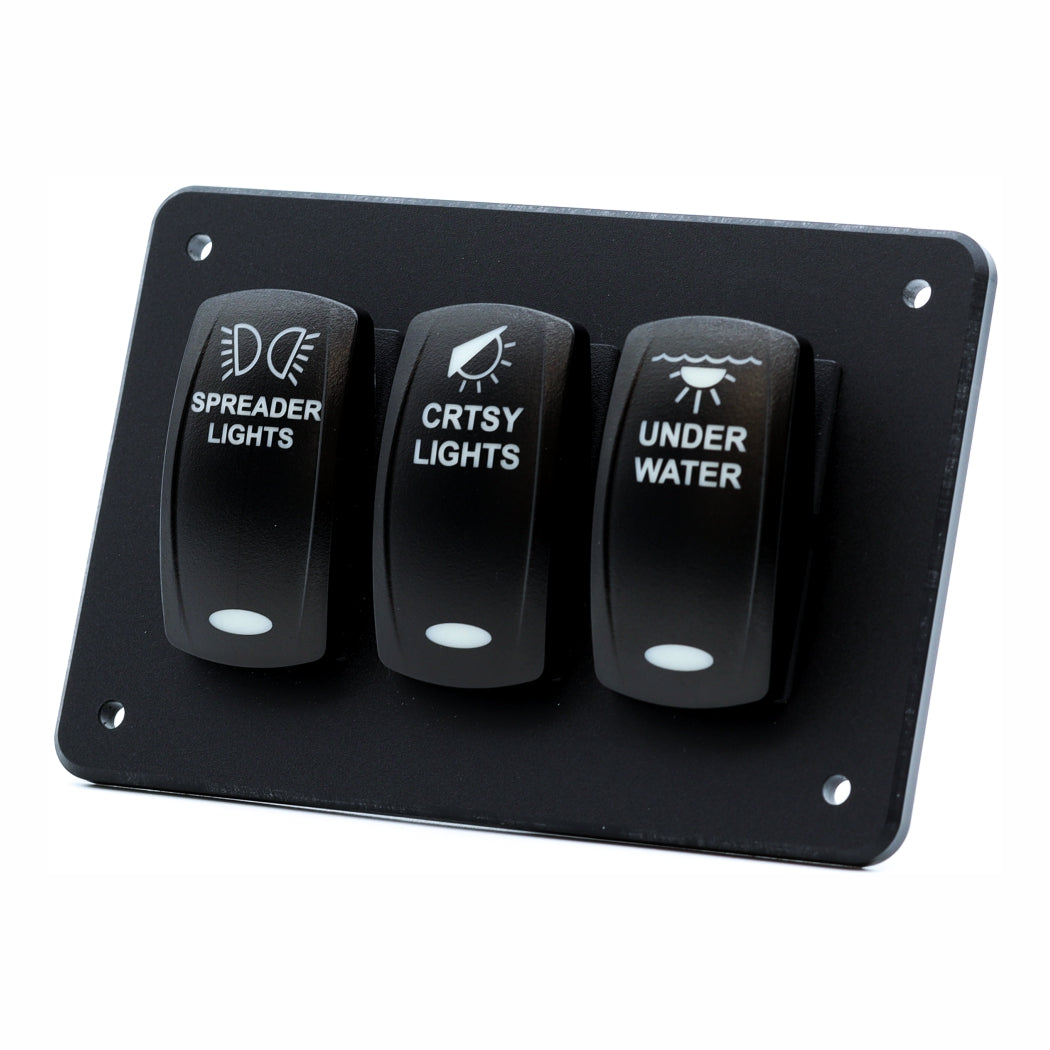

3 Switch Backlit Ready Contura V Panel

Price From 76.00
In Stock
The perfect quick and reliable solution for replacing your switch panel. High Gloss or Matte black panels, genuine Carling switches, and machine-crimped wire jumpers—all in just a couple of clicks.

SKU: 225S-PBCV-03

Shipping calculated at checkout.
Shipping
Ships Same DayOrders by 1 PM EST
Support
Marine specialist support(407) 543-8691
2-Year WarrantyOn every panel
Secure PaymentsSafe & encrypted checkout
Expert SupportHere to help
Description Overview, benefits and key product details. View full product details

Design your custom marine switch panel online using our interactive panel builder. Choose your switch functions directly from the switch carousel and create a panel configured for your boat.

Specifications

Attribute Value
Material 3/16" marine-grade cast acrylic
Finish Black High Gloss or Black Matte (depending on selection)
Switch Qty 3
Size 4.71" × 3.17" (L x H)
Edges Precision routed; not polished
Switches Genuine illuminated Carling Contura V switches
Actuators Genuine Carling Contura V laser-etched, backlight-ready actuators (not UV printed)
Wiring Options Optional illumination and ground jumpers (panel ships with switches and jumpers installed)
Assembly Ships fully assembled with switches, actuators & wire jumpers (optional) installed. Switch output leads are not included.
Hardware Pan-head mounting screws included

Laser-Etched Actuators, Built to Last

The actuator graphics are laser etched through the top coating instead of UV printed. This creates a longer-lasting finish that will not fade over time, while allowing the switch illumination to shine clearly through the text and symbols.

Shipping & ReturnsDelivery, free-shipping threshold and return support.

Ships from Central Florida via UPS Ground with tracking. Panel Builder orders by 1 PM EST ship the same business day; later orders ship the next business day. Shipping is calculated at checkout. Panel Builder panels are built to order and are not returnable unless they were not built to the configuration you ordered or arrive damaged or defective.

INTERACTIVE PANEL BUILDER

Building your panel has never been easier. Start Here!

Browse switches in the carousel > Double click or drag onto the panel > Add to cart. Browse switches in the carousel > Tap to add > Add to cart.

Contura V 3-switch blank switch panel
Download Drawing
Build Your Custom Marine Switch Panel

Design your switch panel exactly the way you want it. Whether you're upgrading your boat, replacing an outdated panel, or starting a new project, our Interactive Switch Panel Builder makes it easy to create a switch panel that fits your needs.

Every panel is built using genuine Carling Contura switches and high-resolution laser-etched actuators for a clean, professional finish that stands up to years of use in the marine environment.

What really sets us apart is the people behind every order. Each switch panel is hand-assembled, wired, tested, and inspected by our experienced technicians, ensuring it meets our quality standards before it leaves our shop. We build every panel with the same attention to detail we'd expect for our own boats.

Thanks to our efficient workflow, most custom switch panels are built and shipped within 1-2 business days, most panels are ready to ship, so you won't be waiting weeks to get your project back on track.

Whether you're upgrading a single boat or outfitting an entire production line, our Interactive Switch Panel Builder makes it easy to create custom switch panels for any project.

You design it. We build it.

The actuator graphics are laser etched through the top coating instead of UV printed. This creates a longer-lasting finish that will not fade over time while allowing the switch illumination to shine clearly through the text and symbols.

Panel Specifications

Panel Material:
3/16" marine-grade cast acrylic

Finish:
High Gloss or Matte (Depending on your selection)

Panel Color:
Black

Overall Dimensions:
4.71" × 3.17" (Length x Height)

Switch Configuration:
Compatible with genuine illuminated Carling Contura V switches. The switch body type may vary depending on the selected switch function.

Switch Actuators:
Genuine Carling Contura V laser-etched actuators, ready for backlighting. The graphics are not UV printed. Instead, the actuator’s top coating is precisely laser etched, allowing the internal switch illumination to shine through the engraved symbols and text.

Frequently Asked Questions

Will this custom switch panel fit my boat?

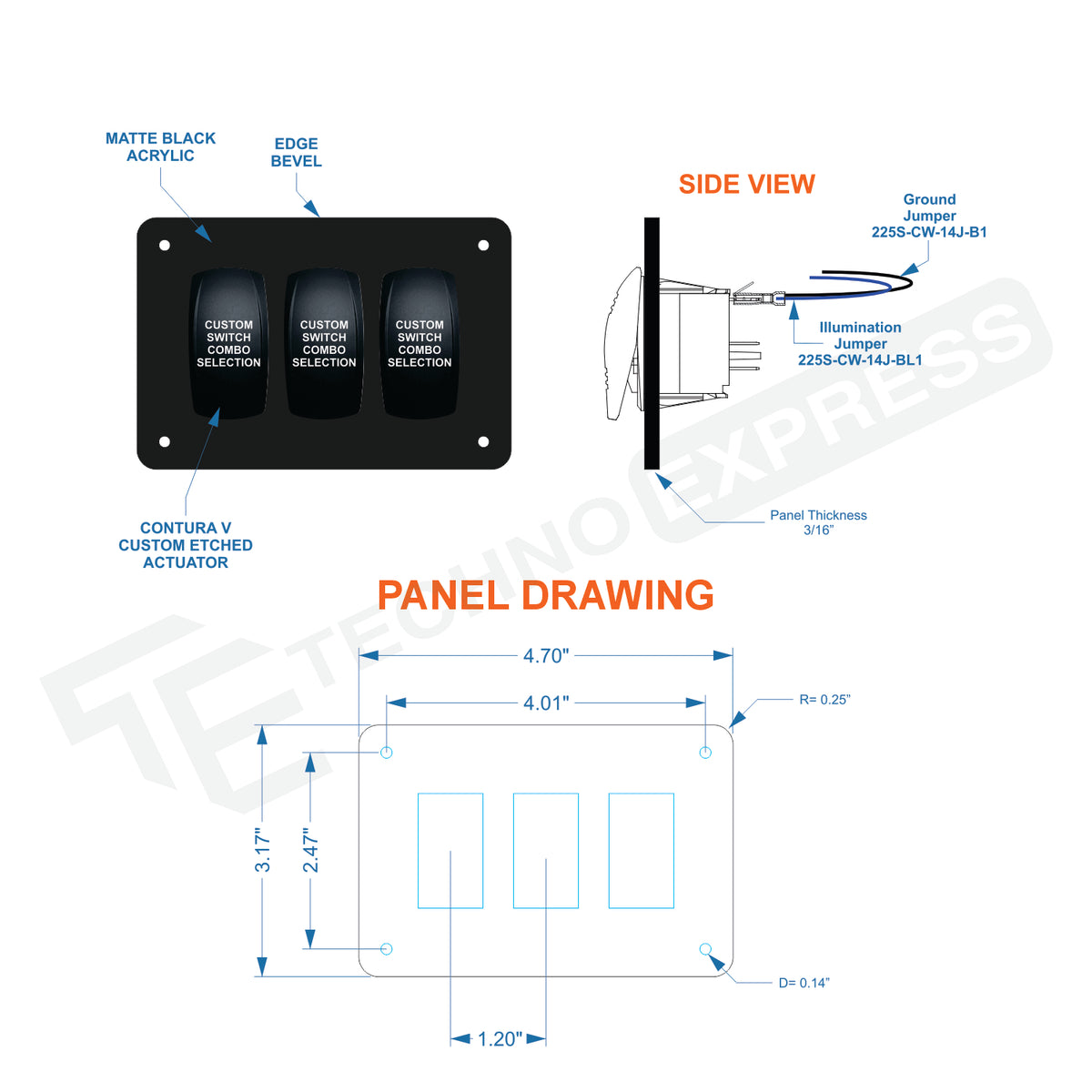

This panel measures 4.71" × 3.17" (Length x Height). Before ordering, compare these dimensions and the mounting-hole locations with your existing boat dashboard opening. Pan-head mounting screws are included. Please refer to the Panel Drawing

Does the panel arrive assembled and wired?

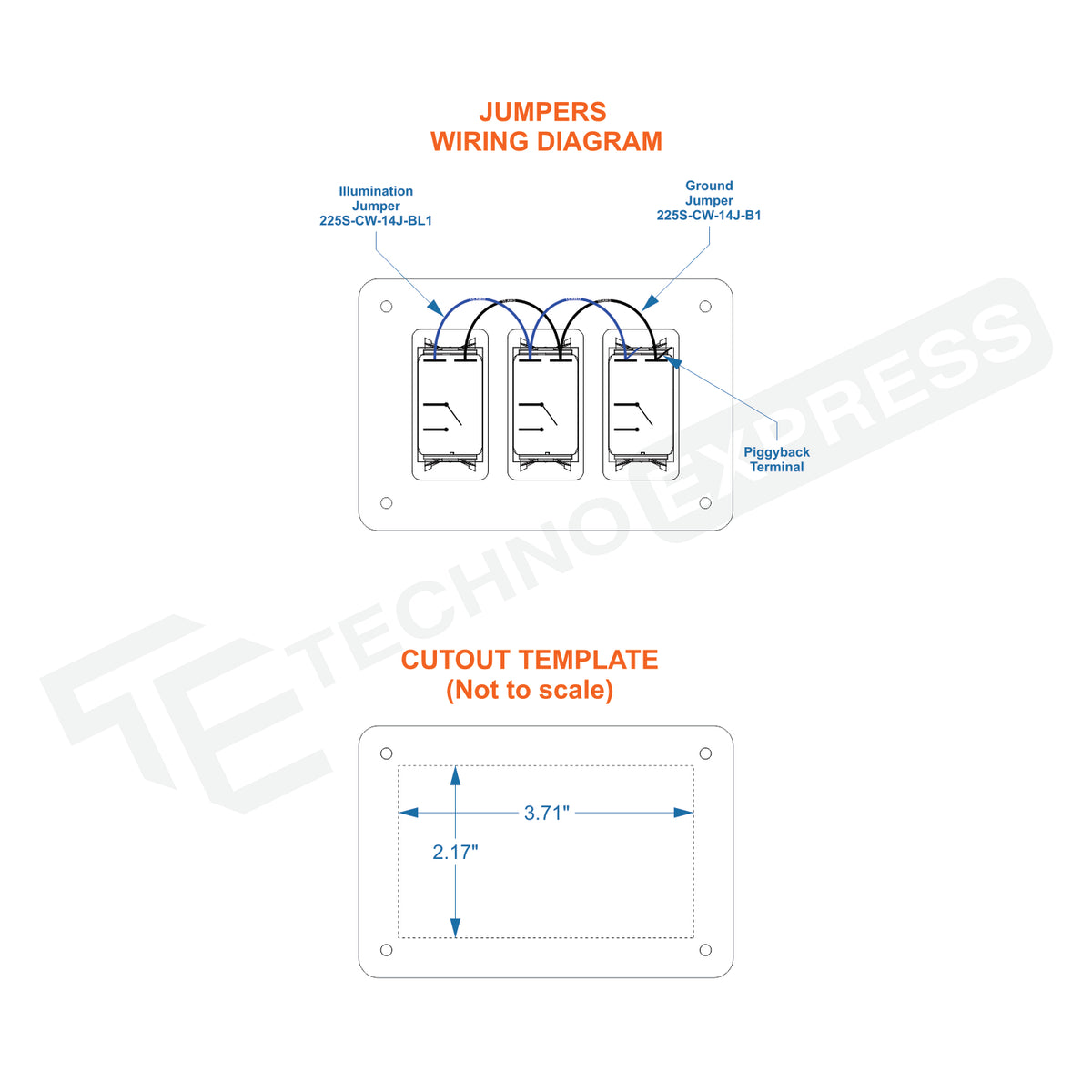

Yes. Your custom marine switch panel ships fully assembled with your selected Carling Contura V switches and actuators installed. Optional illumination and ground jumpers can be added through the panel builder. Switch output leads connecting the panel to your boat’s equipment are not included.

Will the switch actuator labels fade over time?

The genuine Carling Contura V actuators are laser etched, not UV printed. The laser removes the actuator’s top coating so the switch illumination can shine through the symbols and text. This produces a durable, backlight-ready legend that will not fade or wear away like a surface-printed label.

Product Information

Shipping

IN STOCK

Order by 1 PM EST — ships the same business day.

What's in the Box

1 x Blank Switch Panel

3 x Selected Switch Combos

4 x Pan-head #6 x 1" Stainless Steel Screws

Selected Wire jumpers (OPTIONAL)

Returns

Uninstalled, unaltered panels can be returned within 5 days of delivery for a full refund of the panel price. Customer is responsible for return shipping.
