Class B Compact v2 Drive Unit
The Class B Drive Unit works with the Reactor 40 Mechanical/Retrofit/Solenoid Corepack to control your sailboat’s steering system. This device is designed for use with sailboats with up to 48,400 lbs of displacement.
Specifications:
- Dimensions (WxHxD, centered): 31.9 x 4.6" x 8.9" (810 x 120 x 225 mm)
- Drive unit type: Integrated hydraulic linear
- Stroke length: 10" (254 mm)
- Maximum thrust: 1,610 lbs (730 kg)
- Supply voltage: 10V to 30 V (regulated to 12V by the ECU)
- Average clutch current at 12V: 1 Amp
- Average motor current at 12V: 2-4 Amps
- Operating temperature: -15° C to 50° C
Specifications:
- Steering Type: Hydraulic
- Box Dimensions: 6"H x 11"W x 32"L WT: 23.7 lbs
- UPC: 753759335816
read more
Class B Compact v2 Drive Unit
The Class B Drive Unit works with the Reactor 40 Mechanical/Retrofit/Solenoid Corepack to control your sailboat’s steering system. This device is designed for use with sailboats with up to 48,400 lbs of displacement.
Specifications:
- Dimensions (WxHxD, centered): 31.9 x 4.6" x 8.9" (810 x 120 x 225 mm)
- Drive unit type: Integrated hydraulic linear
- Stroke length: 10" (254 mm)
- Maximum thrust: 1,610 lbs (730 kg)
- Supply voltage: 10V to 30 V (regulated to 12V by the ECU)
- Average clutch current at 12V: 1 Amp
- Average motor current at 12V: 2-4 Amps
- Operating temperature: -15° C to 50° C
Specifications:
- Steering Type: Hydraulic
- Box Dimensions: 6"H x 11"W x 32"L WT: 23.7 lbs
- UPC: 753759335816

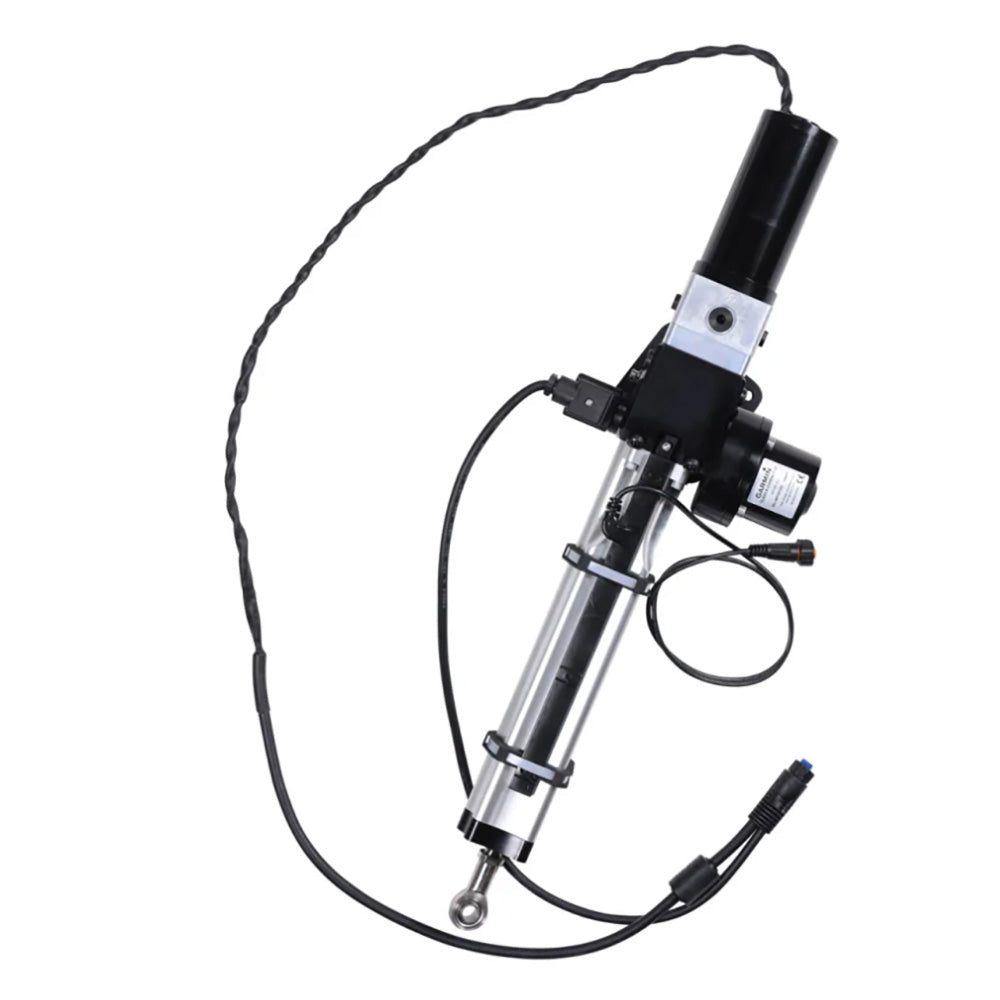

Garmin Class B Compact v2 Drive Unit [010-12029-01]
- Regular price
- $2,699.99
- Sale price
- $2,699.99
- Regular price
-
$0.00
Shipping calculated at checkout.
SKU: 225D-103387
