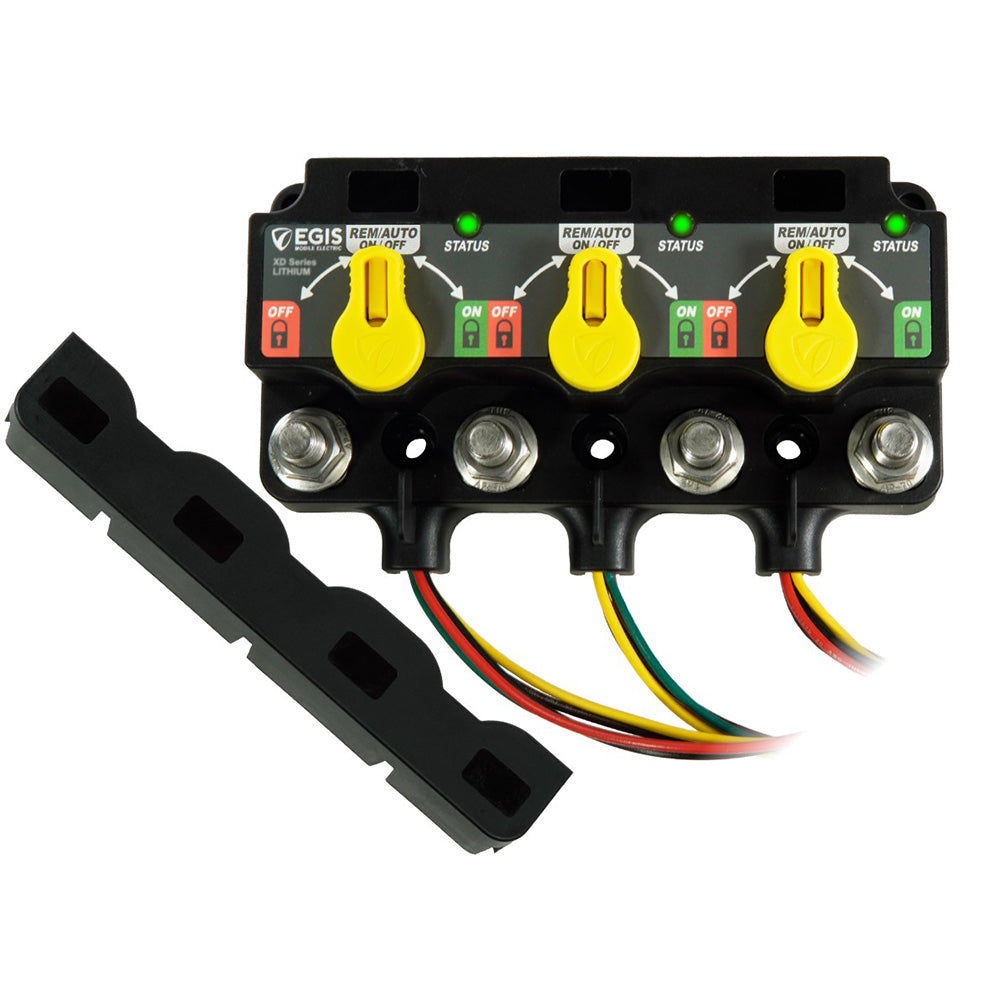

Egis XD Triple Flex L (Relay) - ACR - (Relay) w/Knobs - Tinned Wires [8530-1535]

XD Triple Flex L (Relay) - (ACR) - (Relay) with Knobs - Tinned Wires

Designed for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems, Where Required Charge / Discharge Voltage Settings Require Higher Available Settings

500 Amp Continuous Capability Per Relay / Extremely Compact Footprint

Available with or without Intuitive Front Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for Servicing

Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage Disconnect

Remote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or Allow Automatic Operation Based on Voltage Sensing

Local and Remote LED Indicators Per Relay

Mechanical-Only Battery Switch Option for One or Multiple Relay Positions

Features:

• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
• Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.
• 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
• Plug & Play Compatible with Legacy Competitor Products:   Single, dual, and triple relay options available with DTM/ATM connectors, pin for pin compatible with ML Series Bi-stable Relays.
• 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality
• 4 Year Industry-Leading Warranty

Specifications:

• Type: Electric
• Box Dimensions: 3"H x 6"W x 8"L WT: 2.67 lbs
• UPC: 850053879432
