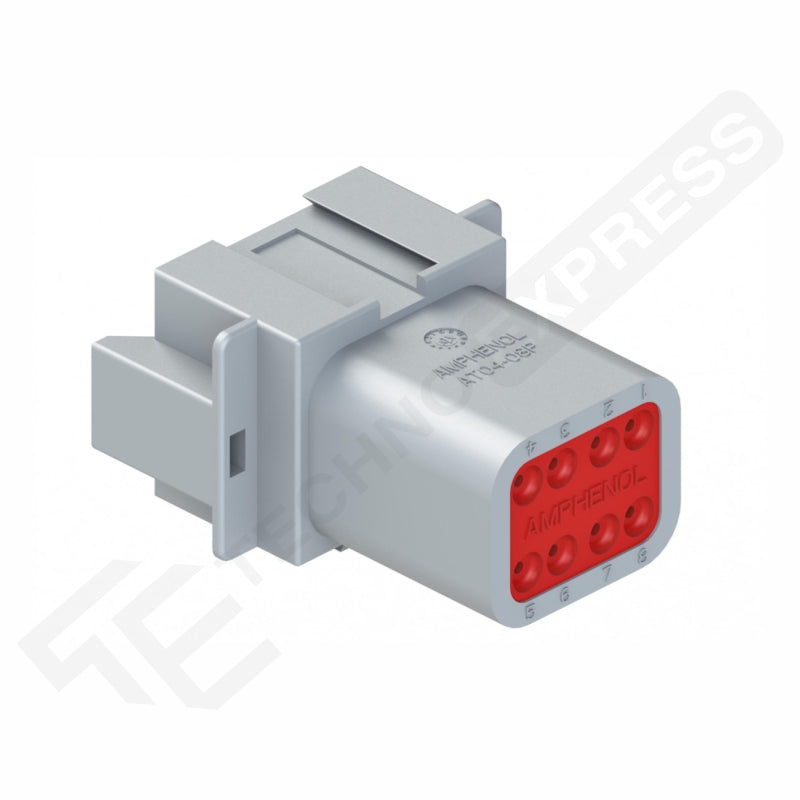

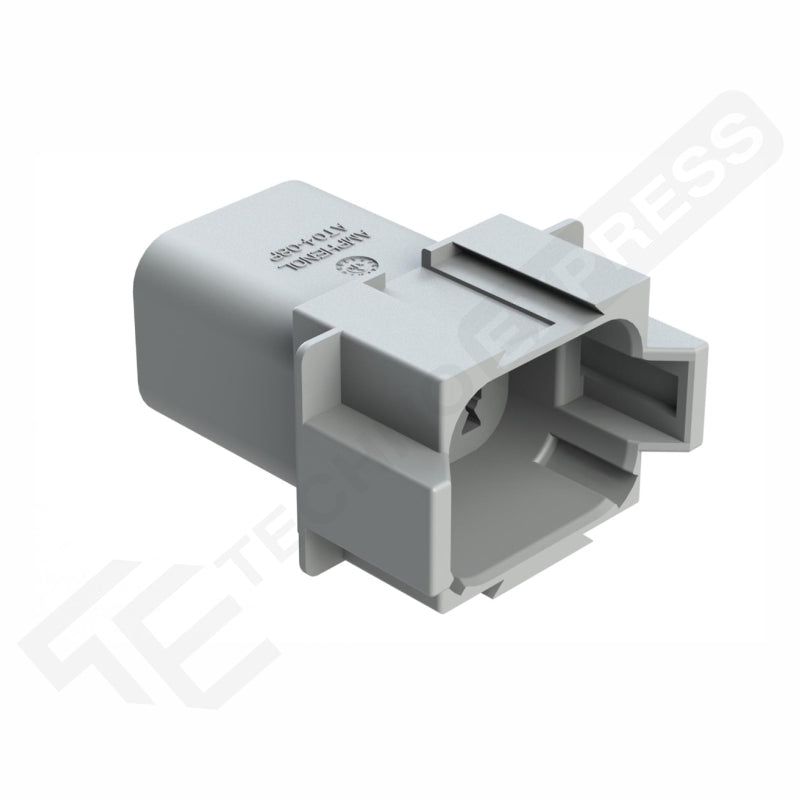

The connection we recommend when failure is not an option offshore. AT04-8PA Receptacle

  • 13 Amps or Less

  • 10 Part AT Connector (8 Pins, Lock & Receptacle)

  • 14-20 AWG (2.0-0.5mm²)

  • Compatible Pin: 225D-BW-0460-215-16141

  • Contacts Included: No

 Built for harsh marine, automotive, heavy equipment, and other demanding environments, they provide reliable sealed connections that help protect against moisture, vibration, and corrosion.


SPECIFICATIONS:

  • No. of Positions: 8
  • Mating Part(s)*: 225D-AT06-8SA Plug
  • Amperage: 13A (FOR HIGHER AMP RATE USE DTP CONNECTORS)
  • Wire Range: 14-20 AWG (2.0-0.5mm²)
  • Same part as Deutsch DT04-8PA
  • Contacts Included: No
  • Contact Type (Pin/Socket): Socket
  • Gender: Male
  • Housing Material: Thermoplastic
  • Voltage Rating: 250V
  • Shape: Rectangular
  • Color: Grey
  • IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
  • Operating Temperature: -55°C to +125°C
  • Seal Material: Silicone Elastomer
  • Seal Diameter: 2.24mm (.088") - 3.68mm (.145")
  • End Cap/Rear Seal Dimensions: .088" - .145"
  • Mating Cycle Durability: >100
  • RoHS Compliant: Yes
  • Wedge Part#: AW8P
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
  • PRODUCT DRAWING
read more

The connection we recommend when failure is not an option offshore. AT04-8PA Receptacle

  • 13 Amps or Less

  • 10 Part AT Connector (8 Pins, Lock & Receptacle)

  • 14-20 AWG (2.0-0.5mm²)

  • Compatible Pin: 225D-BW-0460-215-16141

  • Contacts Included: No

 Built for harsh marine, automotive, heavy equipment, and other demanding environments, they provide reliable sealed connections that help protect against moisture, vibration, and corrosion.


SPECIFICATIONS:

  • No. of Positions: 8
  • Mating Part(s)*: 225D-AT06-8SA Plug
  • Amperage: 13A (FOR HIGHER AMP RATE USE DTP CONNECTORS)
  • Wire Range: 14-20 AWG (2.0-0.5mm²)
  • Same part as Deutsch DT04-8PA
  • Contacts Included: No
  • Contact Type (Pin/Socket): Socket
  • Gender: Male
  • Housing Material: Thermoplastic
  • Voltage Rating: 250V
  • Shape: Rectangular
  • Color: Grey
  • IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
  • Operating Temperature: -55°C to +125°C
  • Seal Material: Silicone Elastomer
  • Seal Diameter: 2.24mm (.088") - 3.68mm (.145")
  • End Cap/Rear Seal Dimensions: .088" - .145"
  • Mating Cycle Durability: >100
  • RoHS Compliant: Yes
  • Wedge Part#: AW8P
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
  • PRODUCT DRAWING
Questions about this product?
Contact Us (407) 543-8691

AT04-8PA 8-Way Receptacle, Male

$2.99
$2.99
$3.99
Shipping calculated at checkout.
AT04-8PA / DT04-8PA 8-Way Receptacle, Male
AT04-8PA / DT04-8PA 8-Way Receptacle, Male

225D-AT04-8PA
truck black icon
SHIPPING INFO
Ready to ship! Orders placed before 1 PM EST ship today.

Information

We ship orders via UPS, as well as other reliable carriers when necessary. Orders are typically processed within 1–3 business days unless otherwise stated.
black dollar sign with an arrow around it
EASY RETURNS
Money Back Guarantee
black dollar sign with an arrow around it
What's comes in the Box?
1 x AT04-8PA 8-Way Receptacle, Male
