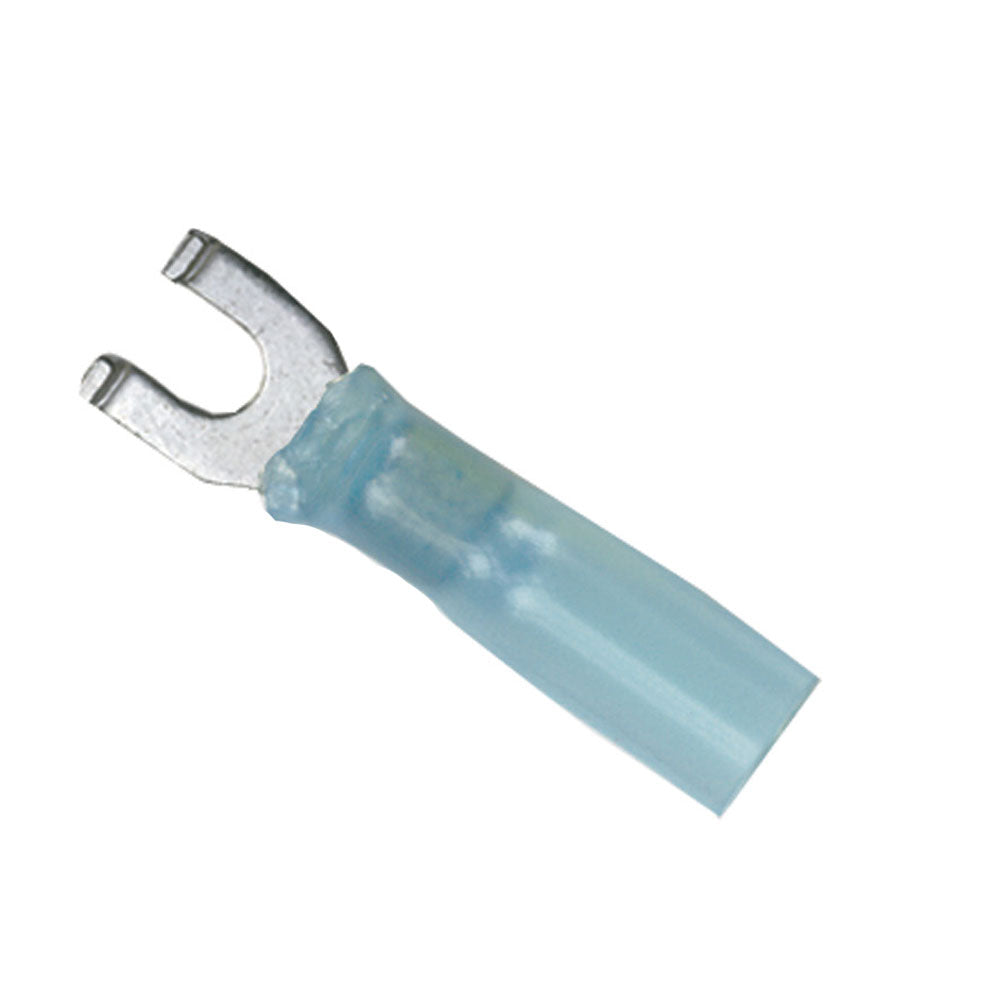

Ancor 1614 Gauge 8 Heat Shrink Spade Terminals 100Pack 314299
Ancor 1614 Gauge 8 Heat Shrink Spade Terminals 100Pack 314299
    Ancor 1614 Gauge 8 Heat Shrink Spade Terminals 100Pack 314299
Ancor 1614 Gauge 8 Heat Shrink Spade Terminals 100Pack 314299

Product Description

read more

16-14 Gauge - #8 Heat Shrink Spade Terminals - 100-Pack

Features:

  • Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
  • Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
  • Nylon insulator, preferred by experts.
  • UL Listed and CSA Recognized
  • Highest shrink ratio - shrinks to 1/3 original size.
  • Shrinks at 257 deg. F/125 deg. C.
  • Operating temperature range 40 deg. C to 110 deg. C.
  • Tinned for corrosion resistance.
  • Pure copper for maximum current flow.
  • Brazed seam for maximum strength.
  • Wire Range: 16-14
  • mm: 1-2
  • Screw Size: 4mm
  • Qty/Pkg: 100

    WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

    Specifications:

    • Gauge: 16-14 AWG
    • Type: Spade connectors
    • Package Qty: 100
    • Heat Shrink: Yes
    • Box Dimensions: 2"H x 3"W x 4"L WT: 0.3 lbs
    • UPC: 091887316353

    Quick Guide (pdf)
    Brochure (pdf)
    • read more

    16-14 Gauge - #8 Heat Shrink Spade Terminals - 100-Pack

    Features:

  • Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
  • Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
  • Nylon insulator, preferred by experts.
  • UL Listed and CSA Recognized
  • Highest shrink ratio - shrinks to 1/3 original size.
  • Shrinks at 257 deg. F/125 deg. C.
  • Operating temperature range 40 deg. C to 110 deg. C.
  • Tinned for corrosion resistance.
  • Pure copper for maximum current flow.
  • Brazed seam for maximum strength.
  • Wire Range: 16-14
  • mm: 1-2
  • Screw Size: 4mm
  • Qty/Pkg: 100

    WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

    Specifications:

    • Gauge: 16-14 AWG
    • Type: Spade connectors
    • Package Qty: 100
    • Heat Shrink: Yes
    • Box Dimensions: 2"H x 3"W x 4"L WT: 0.3 lbs
    • UPC: 091887316353

    Quick Guide (pdf)
    Brochure (pdf)
