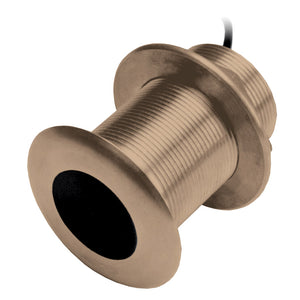

Airmar B75M
w/20° Tilt
600W

Flush-mounted bronze housing,tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block.
This broadband transducer is designed to allow both traditional and Spread Spectrum scanning when used with a compatible sonar like the GSD 26. It features a bronze, thru-hull mount design with 20 degree tilt and provides both depth and temperature data to your Garmin Marine Network


Max Depth - 800'
Suppoarted Deadrise/Transom Angles - 16-24° Deadrise

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Temperature: Yes
• Speed Included: No
• Pins: 8
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: Medium
• Cable Length (Feet): 39'
• Box Dimensions: 5"H x 8"W x 12"L WT: 6.15 lbs
• UPC: 753759972035
