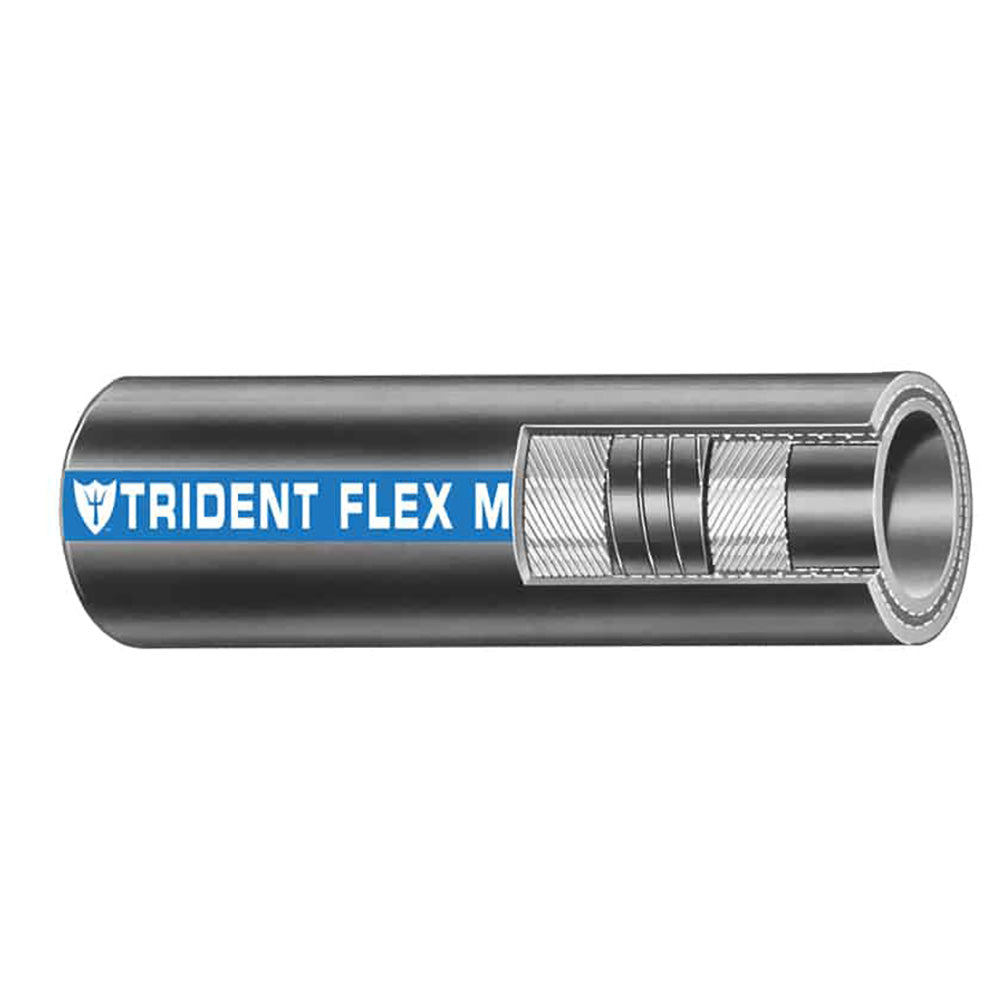

Trident Marine 1" x 50 Coil Flex Marine Wet Exhaust Water Hose - Black [100-1006]

1" x 50' Coil Flex Marine Wet Exhaust & Water Hose - Black

Trident Flex wet exhaust hose for longer bent connections. In smaller I.D.’s for engine intake, critical water, drain, scupper bilge & sanitation uses. Resists heat, ozone, exhaust, panting, and collapse. Black High Temp EDPM Rubber 250°F (121°C) Max.

Features:

• Extra heavy tube and cover with wire helix between 2 ply reinforcement provides excellent flexibility and bend radius
• Resists heat, ozone, exhaust, sani chemicals, panting and collapse
• Exceeds SAE J2006-R2, ABYC & NMMA P-1 exhaust standards, and Lloyd’s Registry Type Approved

Application:

• Trident Flex wet exhaust hose for longer bent connections
• In smaller I.D.’s for engine intake, critical water, drain, scupper bilge & sanitation uses

Construction:

• Tube & Cover: High temp EDPM rubber
• Color: Black with blue stripe
• Reinforcement: Multi-ply, high-tenacity polyester, steel helix
• Temperature Range: 250°F (121°C)
• Length: 50’ (15.24m)

Specifications:

• Inner Diameter: (inch) 1" / (mm) 25.4
• Outer Diameter: (inch) 1.57" / (mm) 25
• Working Pressure: (Psi) 80 / (bar) 5.5
• Bend Radius: (inch) 1.3" / (mm) 33
• Weight: (Lb./50ft.) 30 / (Kg/m) 13.5

*Burst Pressure is 4 x Working Pressure

Specifications:

• ID Diameter (inches): 1"
• Length (Feet): 50'
• Box Dimensions: 4"H x 22"W x 24"L WT: 24.7 lbs
• UPC: 704917004426
