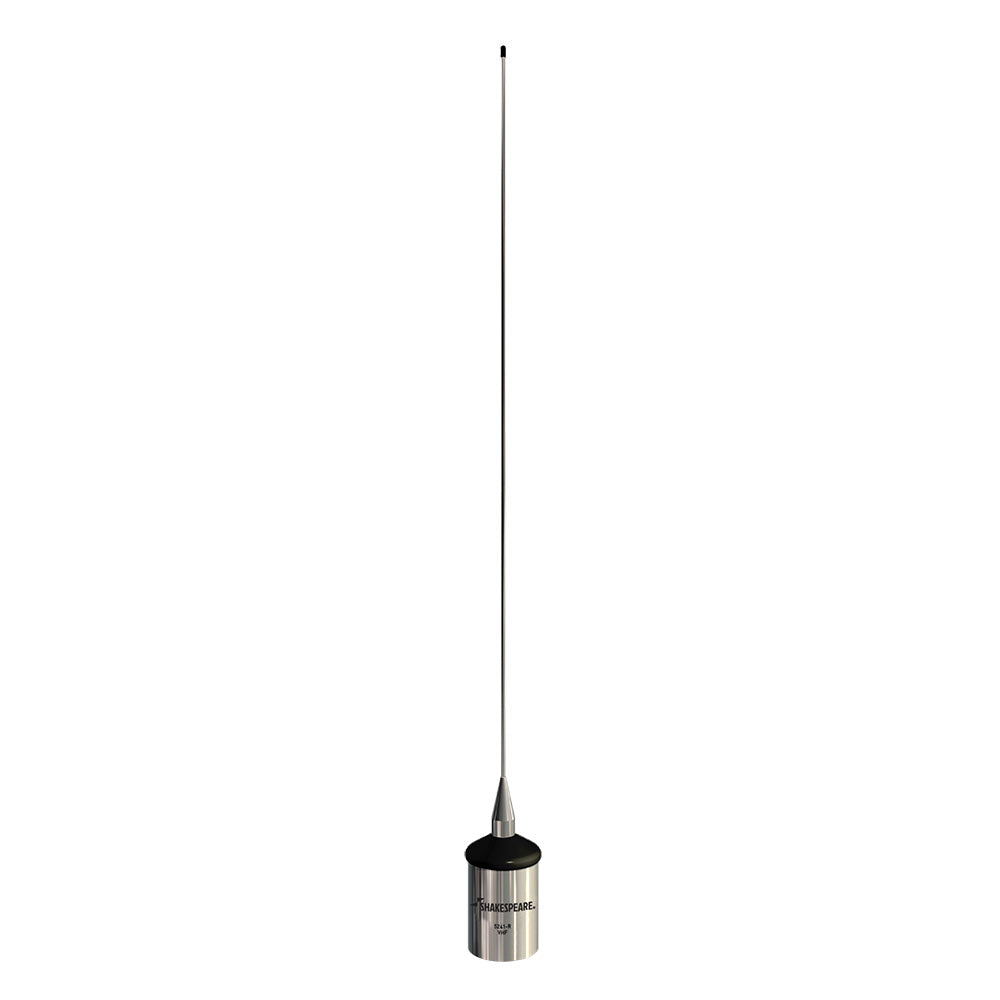

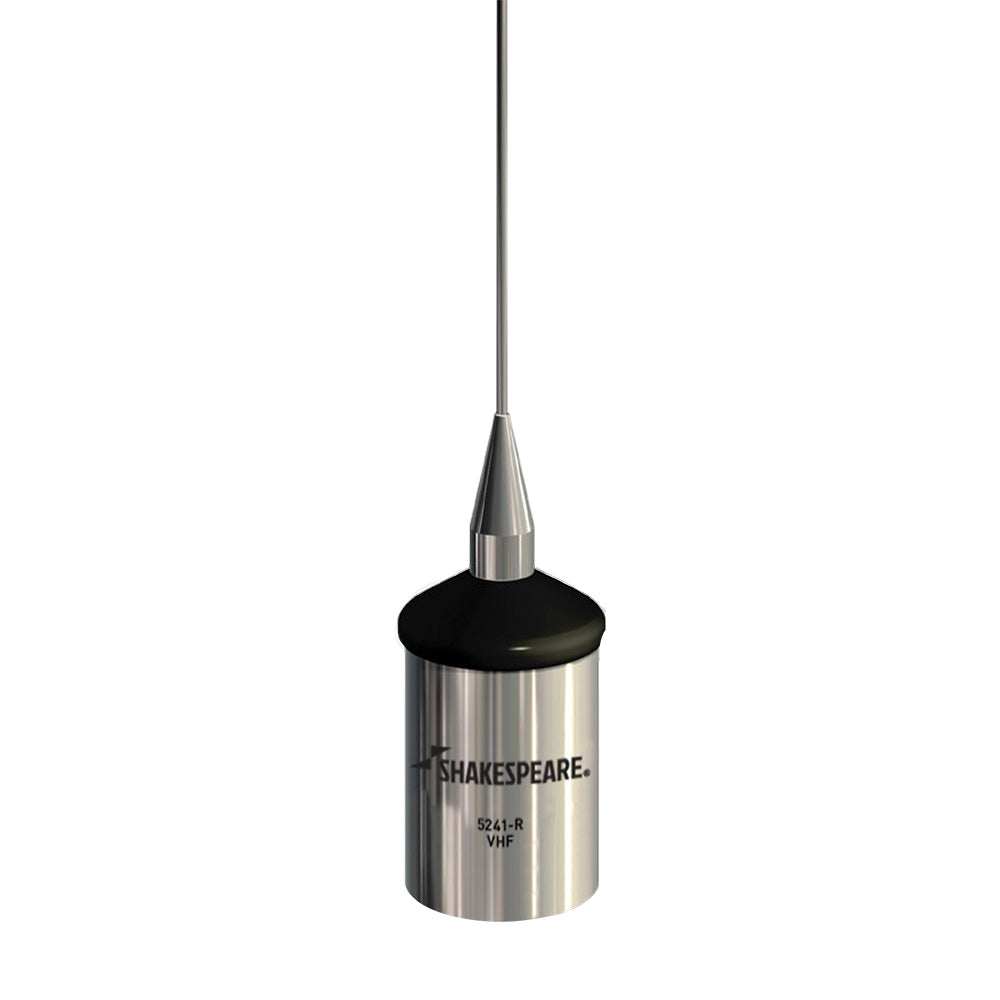

Shakespeare Style 5241-R VHF Marine
36" LENGTH 3dB
LOW PROFILE END-FED 1/2-WAVE WITH HEAVY-DUTY WHIP

The perfect choice for bass boats, center console fishing boats, or any vessel where compact size is most important. Comes with a heavy-duty stainless steel whip for extra stability at high speeds. Chrome plated brass canister minimizes de-tuning.

  • Sealed, tin-plated copper wire coil
  • Requires mount with center hole for passage of the supplied 15' RG-58 cable.
  • PL-259 connector included
  • Stainless steel whip (36")
  • Suggested mount: Shakespeare Styles 4187, 4188-S, or 4190 Ratchet Mounts
  • Shakespeare Limited Warranty: 2 years


Technical Specifications:


Frequency: VHF Marine Band
Bandwidth: 7 MHz
SWR: 1.5:1 at 156.8 MHz
Radiation pattern: Omni-directional
Gain: 3 dB
Max Input (Watts): 50 watts
DC Ground: YES
Height (feet): 3
Polarization: Vertical

Specifications:

  • Antenna Band: VHF
  • Color: Stainless
  • Construction: Stainless Steel
  • Length (Inches): 36"
  • Box Dimensions: 3"H x 3"W x 40"L WT: 2.5 lbs
  • UPC: 719441100452

Quick Guide (pdf)
