Scout 9" Stubby White VHF Antenna w/Quick Mount Includes 5M RG-58, Mount Integrated Connector KS-10 [PF AN NVHF00025]

9" Stubby White VHF Antenna with Quick Mount Includes 5M RG-58, Mount & Integrated Connector KS-10

Fine technical construction, great design, and convenient size all in one: this is the new KS-10, the short, removable VHF antenna that many boaters have been asking for. With its total length of only 22 cm (9”), the KS-10 is the shortest VHF antenna of the Scout range; moreover, the whip can be easily removed by hand to facilitate trailering, coverage, and storage. The anti-UV filter avoids the deterioration of the coloring and keeps the antenna bright white.

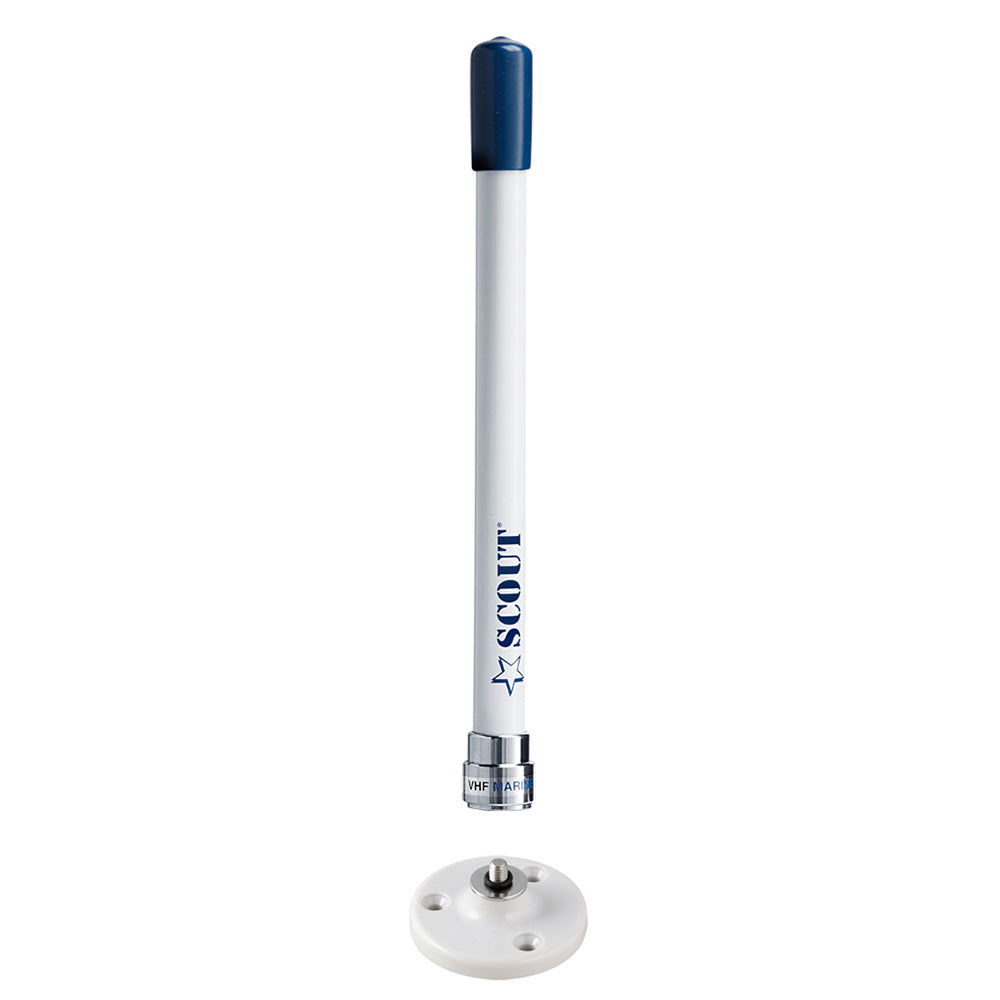

The mount of the KS-10 (6 cm diameter) has been designed to allow an easy and quick installation on any type of flat surface, and the inner rubber gasket prevents leakage.

The antenna is supplied together with a 5 m (16’) RG-58 coax cable and PL-259 male connector.

Features:

• 100% waterproof antenna
• The fiberglass whip is easy to remove
• Waterproof mount included
• Fiberglass whip with anti-UV filter
• 22 cm length
• 5 m (16′) RG-58 CU MIL coaxial cable

Specifications:

• Frequency: 156-162 MHz
• Impedance: 50 ohms
• V.S.W.R.: < 1,5:1
• Polarization: Vertical
• Gain: Unity Gain
• Max power input: 50W
• DC ground: Yes
• Whip material: Fiberglass
• Cable: 5 m (16′) RG-58 CU MIL
• Mounting: Waterproof mount included
• Length: 22 cm (9″)
• Weight: 0,10 kg
