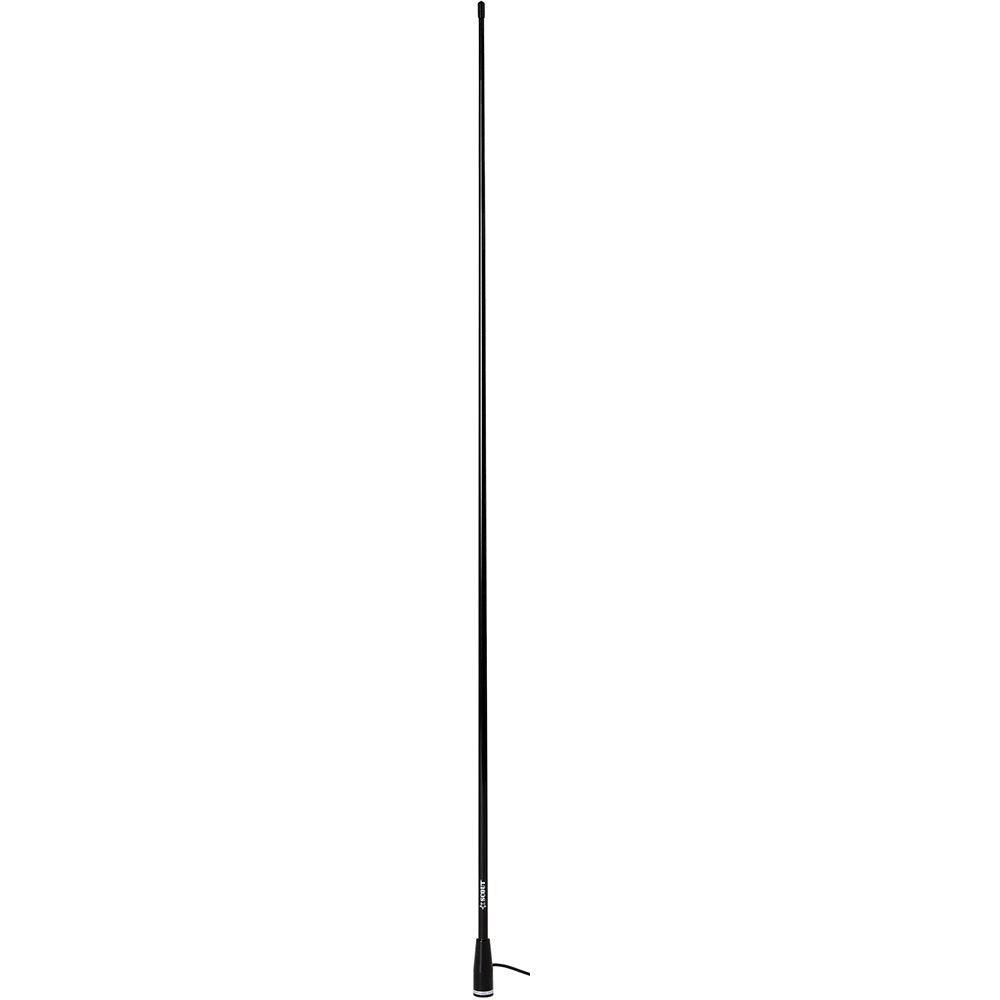

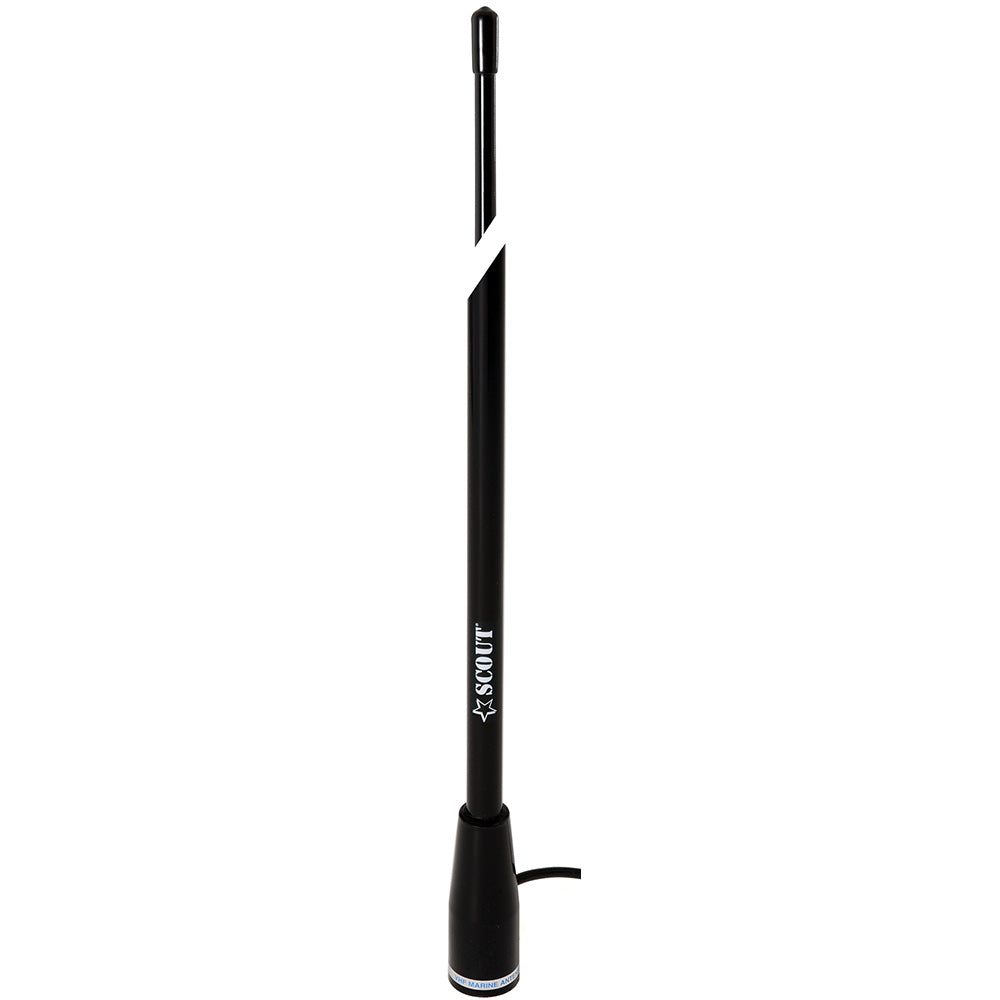

Scout 5' Black VHF Antenna 3dB Nylon Ferrule w/5M RG-58 Coax KS-22 [PF AN NVHF00004T]

5' Black VHF Antenna 3dB Nylon Ferrule with 5M RG-58 Coax KS-22

There’s no need to introduce this classic of marine communication. The antenna that has become a standard for users now meets the excellence of the patent 100% WATERPROOF.

It’s built with a 1,4 mm thick fiberglass whip that gets fully foam injected with the special Scout 100% waterproof technique, and it’s ice white colored with a high gloss anti-UV filter to prevent color deterioration.

The antenna is supplied with 5m RG-58 MIL cable and 1 PL-259 connector to complete the installation on board.

Features:

• Foam injected – 100% WATERPROOF – IP69
• Anti–UV high gloss finish
• 5 m coaxial cable RG 58 CU MIL

Specifications:

• Frequency: 156-162 MHz
• Impedance: 50 ohms
• Electrical length: 1/2 λ
• V.S.W.R.: < 1,5:1
• Polarization: Vertical
• Gain: 3 dB
• Max power input: 50 W
• DC ground: Yes
• Whip material: Fiberglass
• Coaxial cable: 5 m (16,4′) RG 58 CU MIL
• Mounting: 1″ x 14 thread
• Length: 1,5 m (5′)
• Weight: 0,39 kilo
