Raymarine B6020 20 Degree Tilted Element Transducer fDSM300 DSM300G DSM250 DSM30 E66085
    Raymarine B6020 20 Degree Tilted Element Transducer fDSM300 DSM300G DSM250 DSM30 E66085
Raymarine B6020 20 Degree Tilted Element Transducer fDSM300 DSM300G DSM250 DSM30 E66085

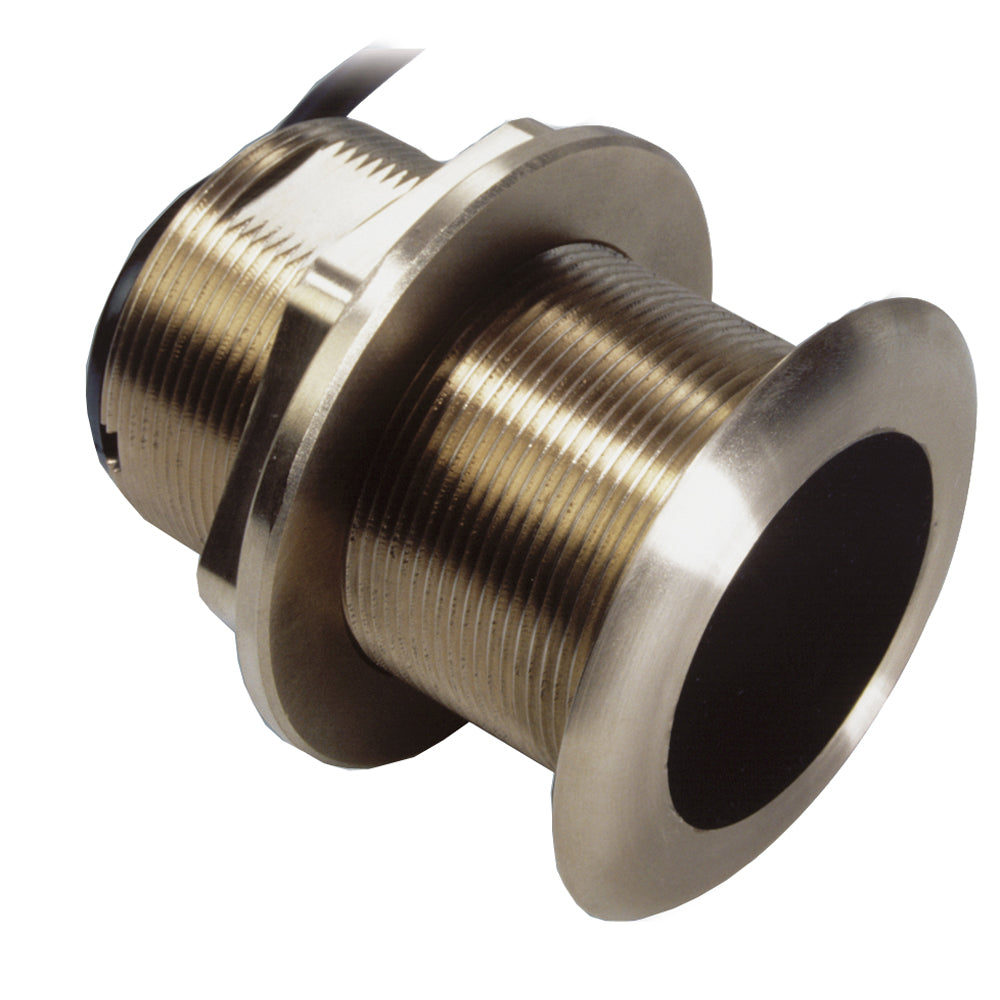

Raymarine B60-20, 20 Degree Tilted Element Transducer f/DSM300 / DSM300G / DSM250 / DSM30 [E66085]

$389.00
$389.00
$429.99

B60 Tilted Element™ 20°20° titled version is designed for 16° - 24° deadrise anglesFor use with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300The bronze B60-20°...

SKU: 225D-26250

Availability
Low Stock Orders by 1PM EST ship today!
Shipping calculated at checkout.
Shipping
Free ShippingOn Qualified Orders Over $150
Support
Talk to a Project Manager(407) 543-8691
60-Day Returns30 days on electronics
Secure PaymentsSafe & encrypted checkout
Tech SupportHonest Expert Advice
Description Overview, benefits and key product details. View full product details

B60 Tilted Element™ 20°

20° titled version is designed for 16° - 24° deadrise angles

For use with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300

The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.

Features:

  • Depth/Temp
  • 50/200 kHz
  • 600w RMS
  • Mid-performance
  • Bronze

Specifications:

  • Chirp: No
  • Cable Length (Feet): 33'
  • Temperature: Yes
  • Speed Included: No
  • Mounting Style: Thru-Hull
  • Imaging: Standard
  • Box Dimensions: 2"H x 8"W x 8"L WT: 4.29 lbs

Owner's Manual (pdf)
Brochure (pdf)
Shipping

We ship orders via UPS, as well as other reliable carriers when
necessary. In Stock Orders by 1PM EST ship today!

For more information, check our shipping policy.

Returns

We want you to be completely satisfied with your purchase. Unused, uninstalled products in their original packaging may be returned within 60 calendar days of delivery for a refund or exchange (30 days for marine electronics). Customer is responsible for return shipping.

All products are covered by a 2-year warranty (marine electronics: 1 year, then the manufacturer's warranty).

For more information, check our Refund & Return Policy

What's comes in the Box?
