Maretron Mid DoubleEnded Cordset 3 Meter Gray DMDG1DF030

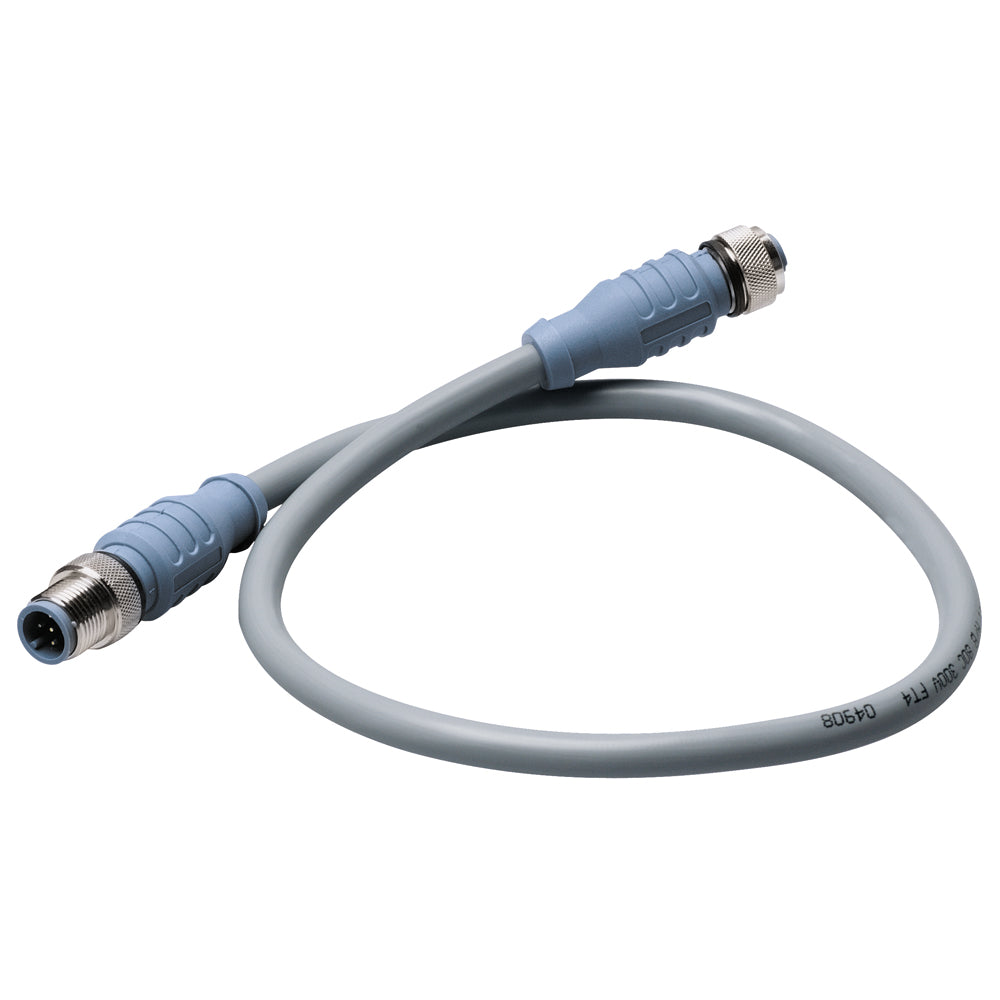

Maretron Mid Double-Ended Cordset - 3 Meter - Gray [DM-DG1-DF-03.0]

Regular price: $60.00
Sale price: $60.00
Regular price: ~~$0.00~~

In Stock

Maretron Mid Double-Ended Cordset - 3 M GrayMechanical: Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating:...

Product variants:

SKU: 225D-46991

Availability

In Stock Orders by 1PM EST ship today!

Shipping calculated at checkout.

Shipping

Free ShippingOn Qualified Orders Over $150

Support

Talk to a Project Manager(407) 543-8691

10-Day Returns*Hassle-free returns

Secure PaymentsSafe & encrypted checkout

Tech SupportHonest Expert Advice

Description Overview, benefits and key product details. View full product details

Maretron Mid Double-Ended Cordset - 3 M Gray

Mechanical:

Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
Contact Mat/Plating: Brass/Gold
Coupling Nut Mat/Plating: Brass/Nickel
Connector Outside Diameter: 0.59"

Electrical
Current Rating: 4.0 Amps
Voltage Rating: 250 V

Cable
Outer Jacket Mat/Color: PVC/Gray
Conductor Insulation Material: PE (data pair), PVC (power pair)
Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
Shielding (3 Levels): Alum/Polyester Foil (Overall), Foil (Power Pair), Foil (Data Pair)

ENVIRONMENTAL
Protection Class: IEC IP68, NEMA 1,3,4,6P
Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

APPROVALS
(Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
(Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
NMEA: NMEA 2000 Approved
IEC: IEC 61162-3

Specifications:

Connection Gender: Male-Female
Data Interface: NMEA 2000
Cable Length (Meters): 3m
NMEA 2000 Connectors: Backbone/Drop Cables
Box Dimensions: 1"H x 6"W x 8"L WT: 0.8 lbs
UPC: 873804001791
