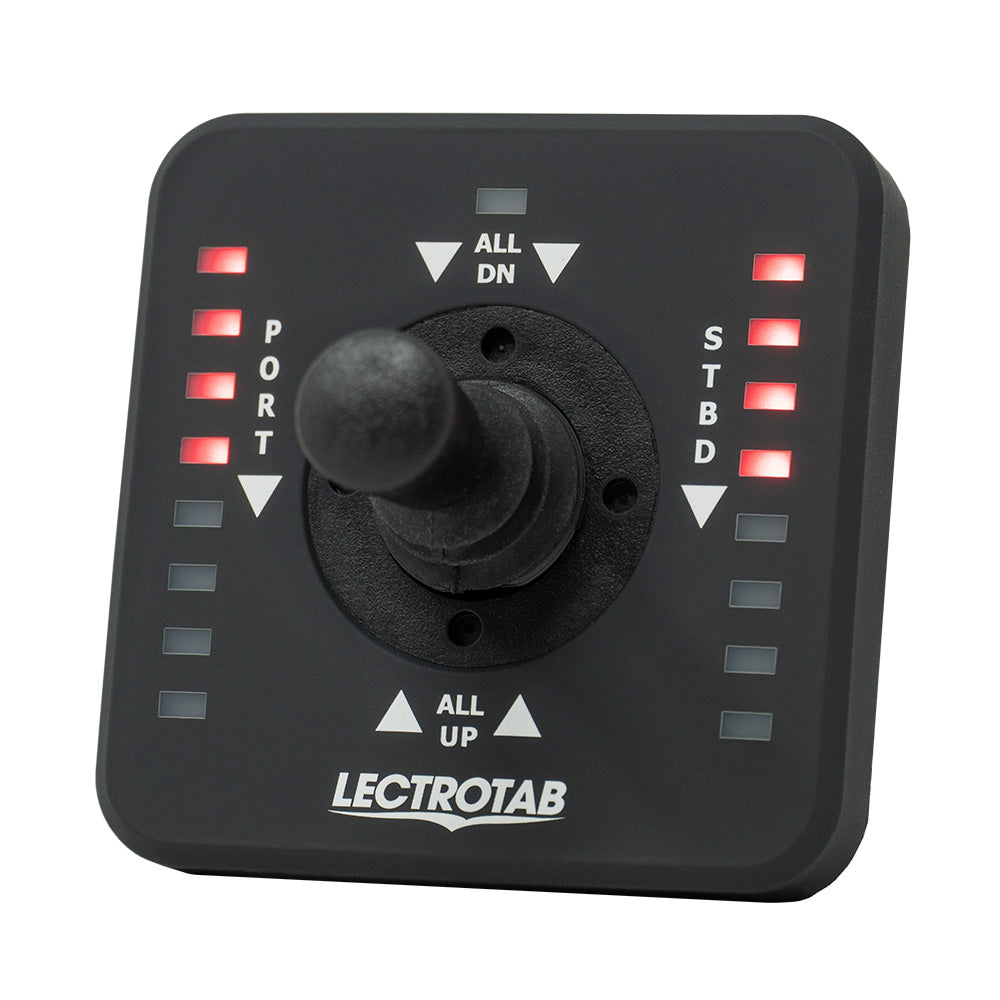

Lectrotab Joystick LED Trim Tab Control [JLC-11]

Joystick LED Trim Tab Control

Lectrotab’s Joystick LED control incorporates features requested by boat owners to provide user-friendly control for a more enjoyable boating experience.

Features:

• Single “Joystick” control
• NMEA 2000 compatible
• LED display of each trim tab position
• Microprocessor-based trim tab control with LED tab position indicators
• NMEA 2000 compatible with JLC-NMEA adapter
• Move both tabs up or down simultaneously with a single motion
• Dual station ready – just add a second JLC-11 and JR-* cable (sold separately)
• Automatic return to last tab position if the ignition key is turned off and back on again
• Completely sealed, completely waterproof, and will not deteriorate in sunlight
• Automatic tab retraction and calibration with key or accessory switch off
• Easy upgrade from any of our Lectrotab controls
• No external power module required
• LED tab position indicators dim automatically in darkness and brighten in sunlight
• Single or Dual Actuator per tab
• Operates on 12 or 24 VDC systems

Specifications:

• Display Color: Black
• Number of Stations/Actuators: Single or Dual Station/1 or 2 Actuator/tab
• Overall Width: 3.0"/77mm
• Overall Height/Thickness: 3.0" (77mm)/2.0" (50mm)
• Mounting Hole Cutout (Diameter): 2.625"/66.7mm
• DC Voltage: 12/24
• Fuse Size Power Input (1 Actuator Per Tab): 12 VDC-15 or 20 AMPs 24 VDC = 10 AMPs
• Fuse Size Aux. (Must Connect): 1 to 2 AMPs
