Garmin GPS 24xd GPS Antenna w/Heading Sensor f/NMEA 2000 Network - Black [010-02316-20]
- Regular price
- $364.99
- Sale price
- $364.99
GPS 24xd GPS Antenna with Heading Sensor for NMEA 2000 Network - BlackThe GPS 24xd position receiver and antenna give...
SKU: 225D-101845
Couldn't load pickup availability
Description Overview, benefits and key product details. View full product details
GPS 24xd GPS Antenna with Heading Sensor for NMEA 2000 Network - Black
The GPS 24xd position receiver and antenna give users precise location with multi-band GNSS and heading accuracy even at slow speeds.
Features:
- Navigate to more locations with expanded GNSS support
- Get high-sensitivity tracking with a fast GPS update rate
- Accurately pinpoint, regardless of speed
- It’s water-resistant (IPX7) to withstand the elements
- Install it easily with multiple mounting options
- The antenna is compatible with NMEA 2000® devices

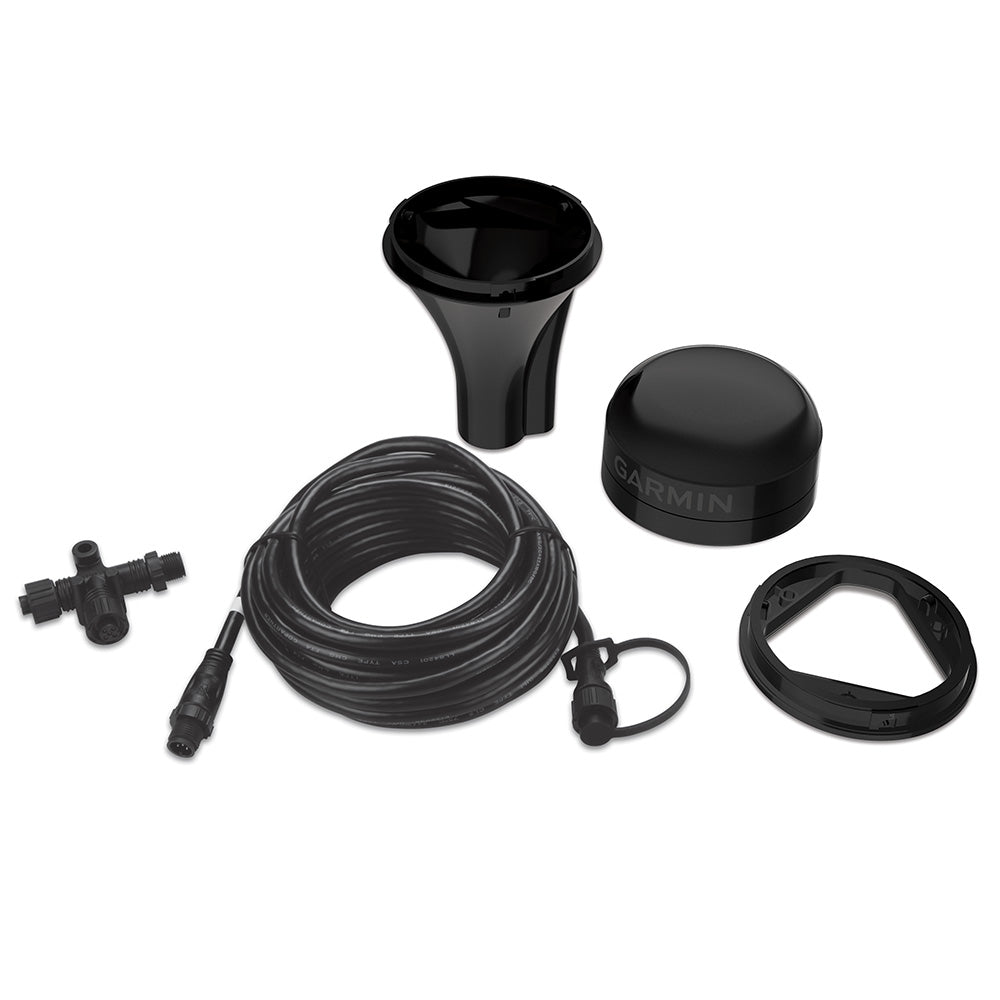

In the Box:
- GPS 24xd NMEA 2000®
- Pole mount
- Surface mount
- NMEA 2000 backbone/drop cable (6 meters)
- NMEA 2000 T-connector
- Documentation
Specifications:
- Color: Black
- Dimensions (D x H): 3 19/32" x 1 15/16" (91.6 mm x 49.5 mm)
- Weight: 7.1 oz (201 g), white; 6.2 oz (176 g), black
- Cable Length: 19 ft 8" (6 m)
- Temperature Range: -22° to 176° F (-30° to 80° C), white; -22° to 149° F (-30° to 65° C), black
- Case Material: Fully gasketed, high-impact plastic alloy; waterproof to IPX7
- Compass-Safe Distance: 5.9" (150 mm)
- Power Source Input: 9-32 Vdc
- Input Current: 150 mA at 12 Vdc
- NMEA 2000 Load Equivalency Number (LEN): 3 (150 mA)
- Position Accuracy, Typical Marine Use: < 1-meter CEP, < 3 meters, 95%
Specifications:
- Type: Antennas
- Box Dimensions: 7"H x 7"W x 7"L WT: 2.01 lbs
- UPC: 753759331214
