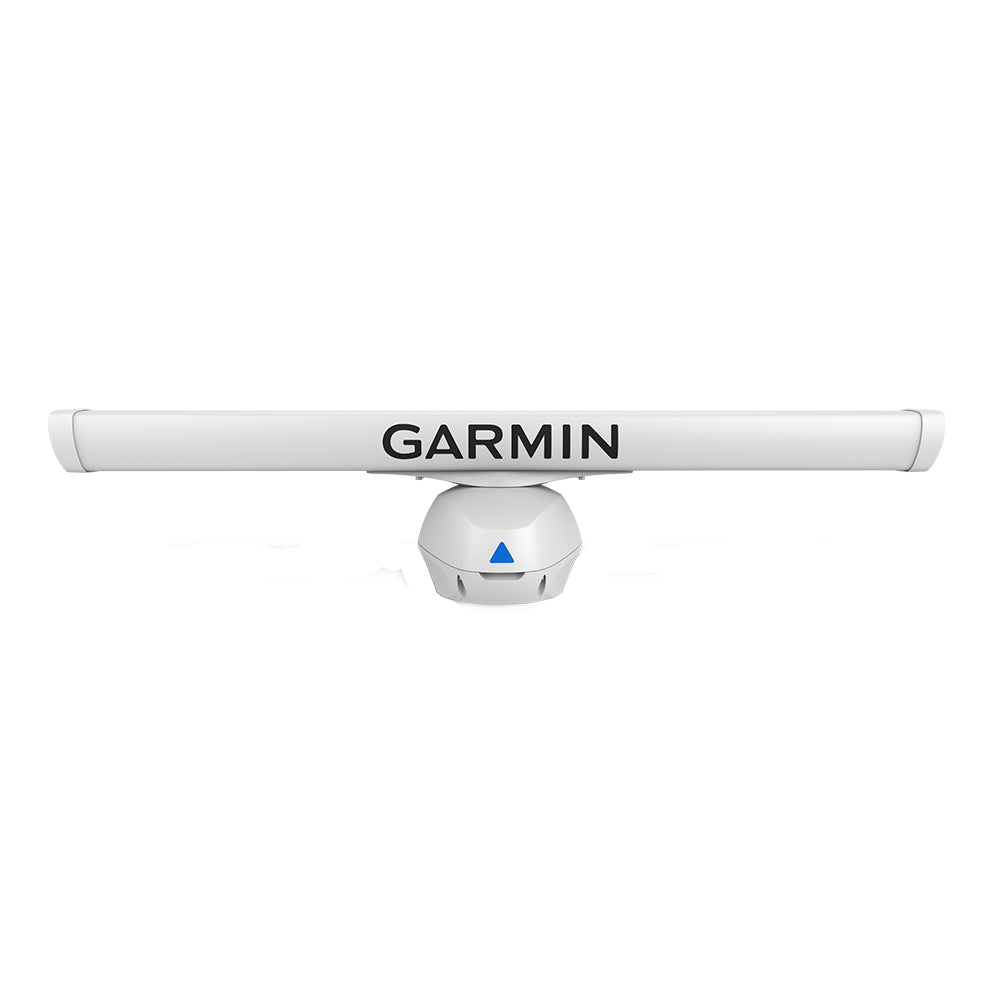

Garmin GMR Fantom 256 Radar w/6 Open Array Antenna [K10-00012-22]

Garmin GMR Fantom™ 256 Radar

THE POWER TO SEE MORE

GMR Fantom™ 256 is the most powerful 6’ consumer solid-state radar.

The GMR Fantom™ 256, our most powerful 6’ solid-state radars, feature 250 W of power. They use MotionScope™ technology to detect and highlight moving targets in different colors, which helps you avoid potential collisions, find flocks of birds and track weather. New MARPA Automatic Acquisition allows for triggering and tracking with no user prompting on all returns, boundary zones, guard zones or MotionScope. Scan-to-scan averaging, a new feature, helps aid in reduction of sea clutter and interference. Its Pulse Compression technology provides high-resolution imaging and maximizes energy to help you detect and identify targets. Auto Bird Gain helps you identify flocks of birds on the water. The GMR Fantom 256 radar have a detection range of 20’ to 96 nautical miles.

Features:

• We’ve got the power. 250 watts of it to be exact.
• Know the long and short of it with a detection range of 20’ to 96 nautical miles.
• MotionScope™ highlights everything that moves so there are no surprises.
• The more the merrier with MARPA. Keep track of up to 30 moving targets.
• Clear the clutter with scan-to-scan averaging.

MotionScope™ Technology

Detect and highlight moving targets in different colors to help avoid collisions, find flocks of birds and track weather from 20’ to 96 nautical miles.

Automatic Acquisition

New mini-automatic radar plotting aid (MARPA) automatic acquisition allows for triggering and tracking of up to 30 targets with no user prompting on all returns, boundary zones, guard zones or MotionScope™.

Clear The Way

Scan-to-scan averaging aids in reduction of sea clutter and interference, so you have a clear view of what’s out there.

Auto Bird Gain

Where there are birds on the water’s surface, there are fish below it. Auto Bird Gain helps you locate flocks of birds at the water’s surface.

Pulse Compression

This feature provides high-resolution imaging while maximizing energy to enhance target detection and identification.

Echo Trails

True Echo Trails feature displays a fading trail to help you quickly and easily identify moving targets while accounting for the movement of your own boat.

Radar Overlay

Overlay radar on your chart screen as single display or split screen with independent range settings.

Dynamic Sea Filter

Dynamic Sea Filter automatically adjusts gain to calm, medium and rough sea conditions.

Guard Zone

Set the safety zone and receive an alarm when an object enters the zone.

In The Box

• GMR Fantom 256 antenna and pedestal
• Mounting hardware kit and template
• Right angle power cable (15 meters)
• Right-angle BlueNet™ network cable (15 meters)
• BlueNet™ Network to RJ45 Adapter Cable
• Voltage converter
• Documentation

Specifications:

• Range - Max (Miles): 96nm
• Power - Output: 250w
• Array Size (Inches): 72"
• Box Dimensions: 8"H x 12"W x 80"L WT: 83.15 lbs
