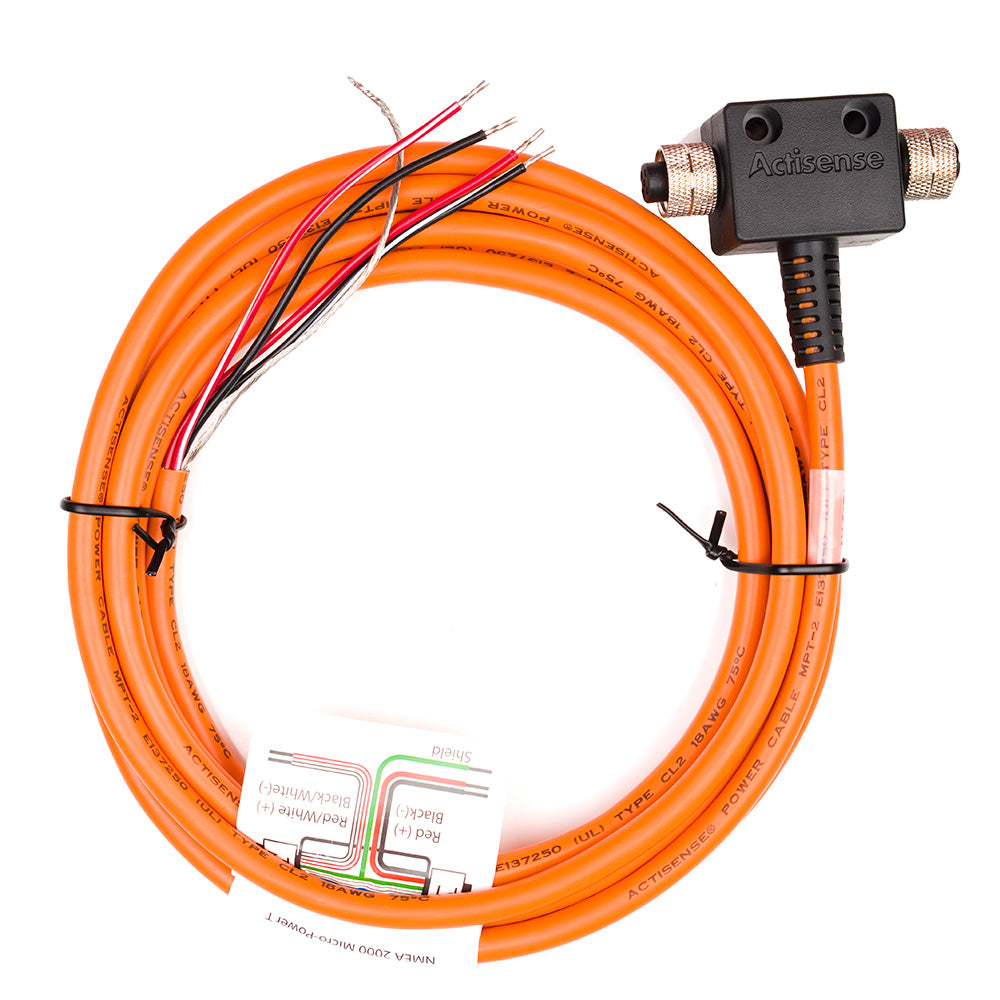

Actisense NMEA2000 Micro T-Piece w/Female Connectors 3M UL Certified Cable [A2K-MPT-2]

Regular price
$60.00
Sale price
$60.00
Regular price
$75.00

NMEA2000 Micro T-Piece with Female Connectors & 3M UL Certified CableThe A2K-MPT-2 is a simple, safe, and efficient method of...

SKU: 225D-111804

Availability
In Stock Orders by 1PM EST ship today!
Shipping calculated at checkout.
Shipping
Free ShippingOn Qualified Orders Over $150
Support
Talk to a Project Manager(407) 543-8691
60-Day Returns30 days on electronics
Secure PaymentsSafe & encrypted checkout
Tech SupportHonest Expert Advice
Description Overview, benefits and key product details. View full product details

NMEA2000 Micro T-Piece with Female Connectors & 3M UL Certified Cable

The A2K-MPT-2 is a simple, safe, and efficient method of powering an NMEA 2000 network.

Now with improved strain relief!

The Micro Power T can easily provide power to the NMEA 2000 bus with micro-fit connectors to enable ‘plug and play’ connectivity.

The Actisense-designed connectors are quality-engineered and shaped to allow easy and secure connections, using our specialist interconnect and NMEA knowledge. With its two female connectors, this power T is also fully Devicenet compatible.

The Actisense specified cable is UL certified, and the three-meter cable length ensures that the A2K-MPT-2 offers complete flexibility when installing.

Technical Specifications:

Electrical

  • Rated Current - 4A (each feed)
  • Rated Voltage - 60VDC

Mechanical

  • Female Contact - Phosphor bronze, gold plated
  • Contact Carrier - PA66 (30% Glass Filled), Black
  • Contact Polarization - Standard M12 -“A”- polarization
  • Mating Thread - M12
  • Screw Cap - Brass, nickel plated
  • O-Ring Seal - Rubber, black
  • Housing - PVC, black
  • Cable Jacket Material - 0.8mm Nom. PVC, orange
  • Cable Outer Diameter - 6.7mm ±0.254mm
  • Cable Length - 3M
  • Wire Length - 100mm (7mm stripped)
  • Wire Jacket - PVC
  • Wires - 18 AWG (stripped and tinned)
  • Drain - 18 AWG (34-strand tinned copper)
  • Shield - Al-mylar
  • Weight - 290g

Approvals and Certifications

  • Protection - IP67 (when mated)
  • Operating Temperature - -20°C to +70°C
  • Storage Temperature - -40°C to +85°C
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Connection Gender: Female-Female
  • Data Interface: NMEA 2000
  • Cable Length (Meters): 3m
  • NMEA 2000 Connectors: Tee Connectors
  • Box Dimensions: 1.00"H x 6.00"W x 7.00"L WT: 0.65 lbs
  • UPC: 5060998710140

Owner's Manual (pdf)
Brochure (pdf)
