Horizontal Right Text Rocker Switch Combo / Backlit Ready - Chartplotter

100% Genuine Carling Switch Body with custom Laser Etched switch cover. Our high resolution etched switch actuators are designed to keep every switch label clear, readable, and professional-Looking in any lighting condition. During the day, the precision etching makes each label easy to identify, and at night, the backlit illumination shines through the actuator to create a clean, sharp appearance while improving visibility. The result is a custom marine switch panel that not only looks stunning but also delivers the readability, function, and premium finish boat owners and marine professionals expect.

Switch Specs

• Switch Function: ON-OFF
• Voltage Rating: 12 volts DC
• Max Current Rating: 20 Amps
• Terminals: 4 (2 for illumination, 2 for the switch function)
• Circuit: SPST
• Illumination: Incandescent - rated 10,000  hours, Neon - rated 25,000 hours, LED - rated 100,000 hours.
• Terminals: 250 Series Quick Connect
• Life: Up to 100,000 cycles, circuit and load dependent
• Sealing: IP66/68, for above-panel components of actual switch only.
• Mounting Hole Dimensions: 1.45" x 0.83" (Industry Standard) This switch will fit in the same hole as any other industry standard rocker switch.

Switch Features

• Ultra High Resolution custom etched actuator (not printed)
• Interchangeable switch actuator for more flexibility
• Easy to read in any lighting condition

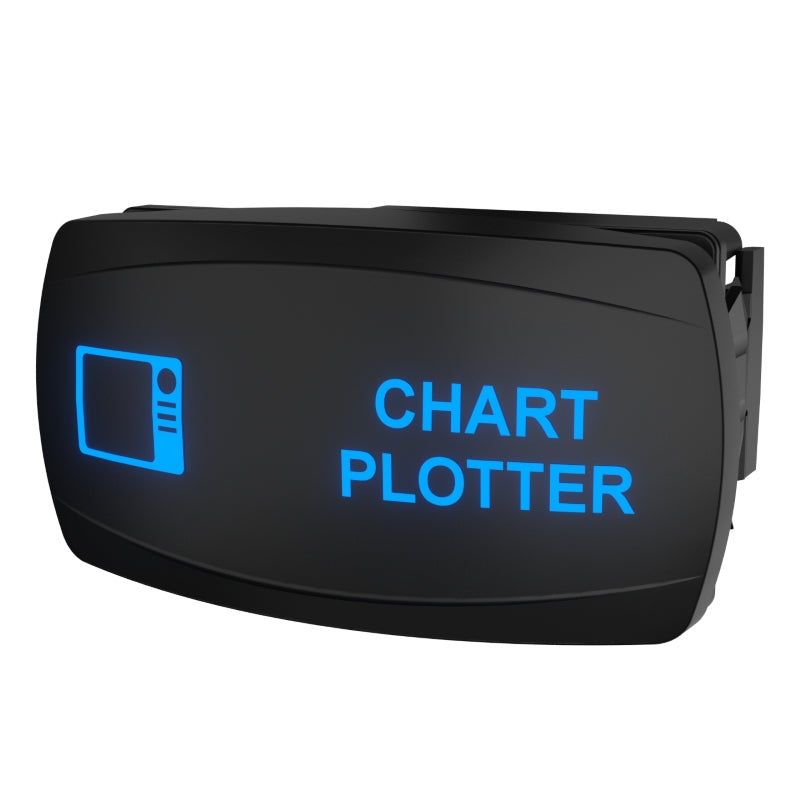

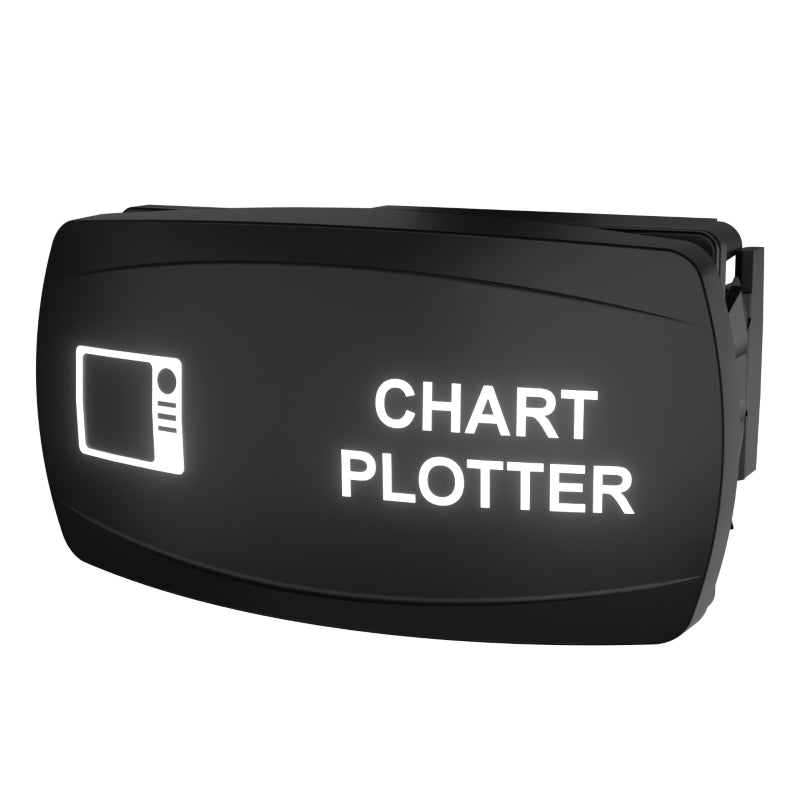

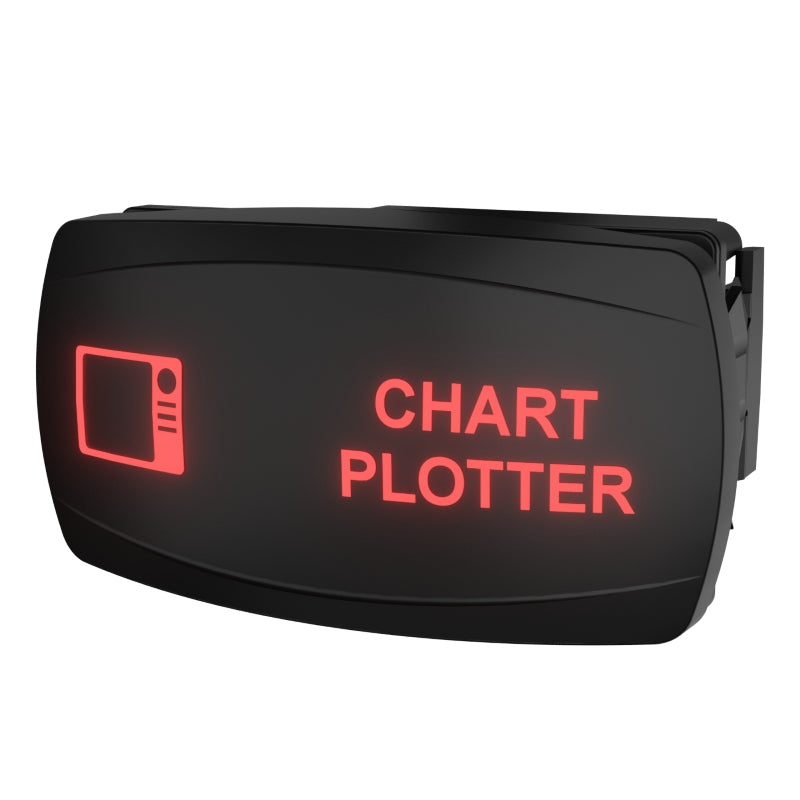

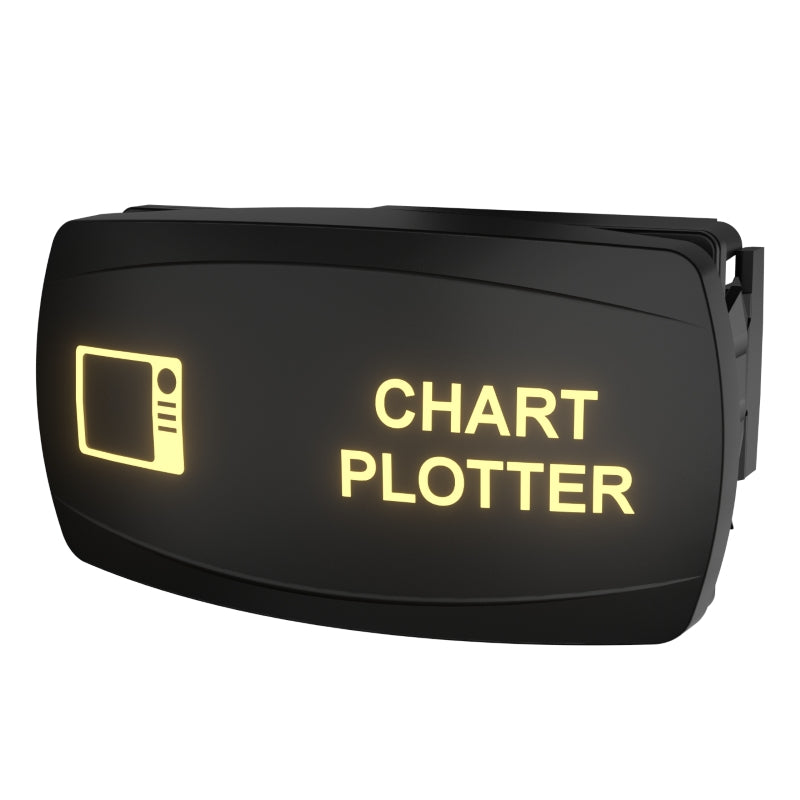

• Available in multiple color options: Cool White, Blue, Red and Warm White

Switch Wiring Information

1. Lamp trigger: Terminal 8
2. Switch ground: Terminal 7
3. Switch 12V input: Terminal 2
4. Switch 12V Output: Terminal 3

 If you want to learn more about wiring configurations for different applications, click HERE
