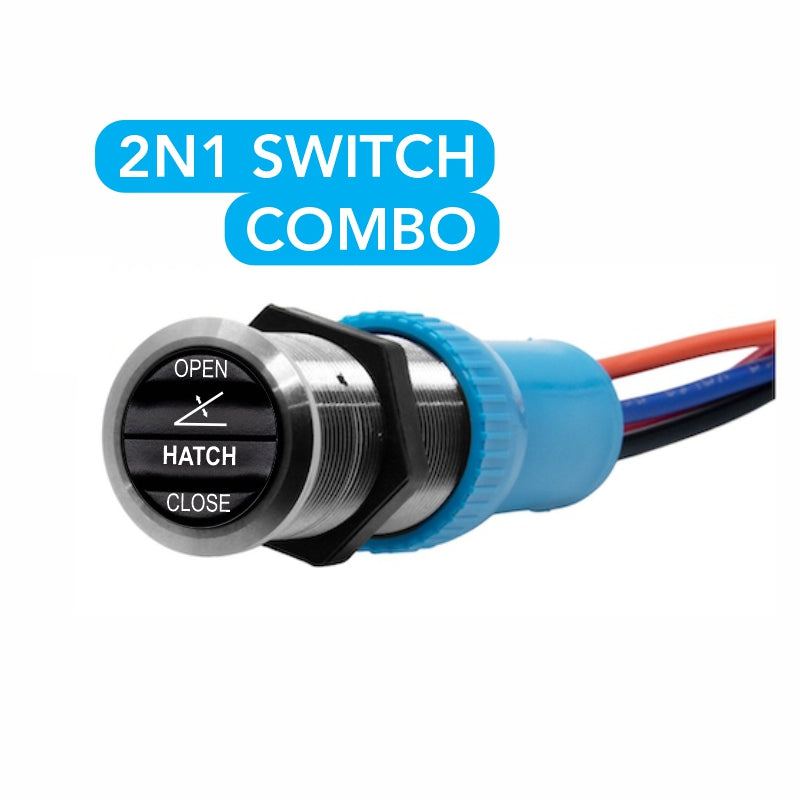

Bluewater 2N1 Full Switch Combo: Hatch Open/Close

Reduce Cost and Space in your switch panel

The 2N1 Switch is your all-in-one Marine Switch Solution, designed to handle high-demand systems with precision, durability, and flexible control.

Product Specifications

• Switch Body P/N: 9059-7002
• Outputs: 2 Loads (ON)-OFF-(ON)

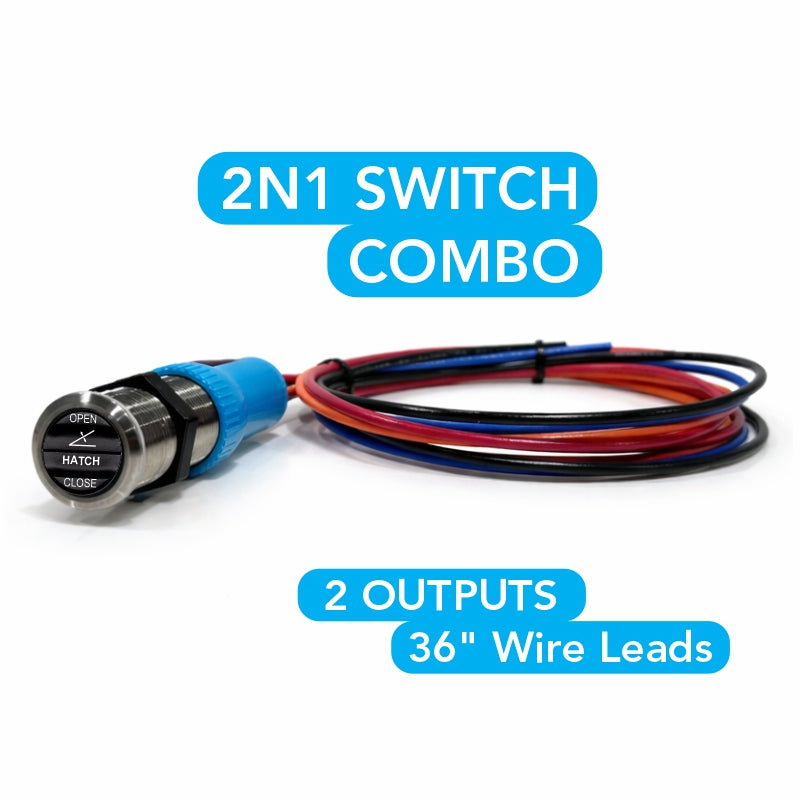

• Switch Plug: 5 Wires / 36" Length

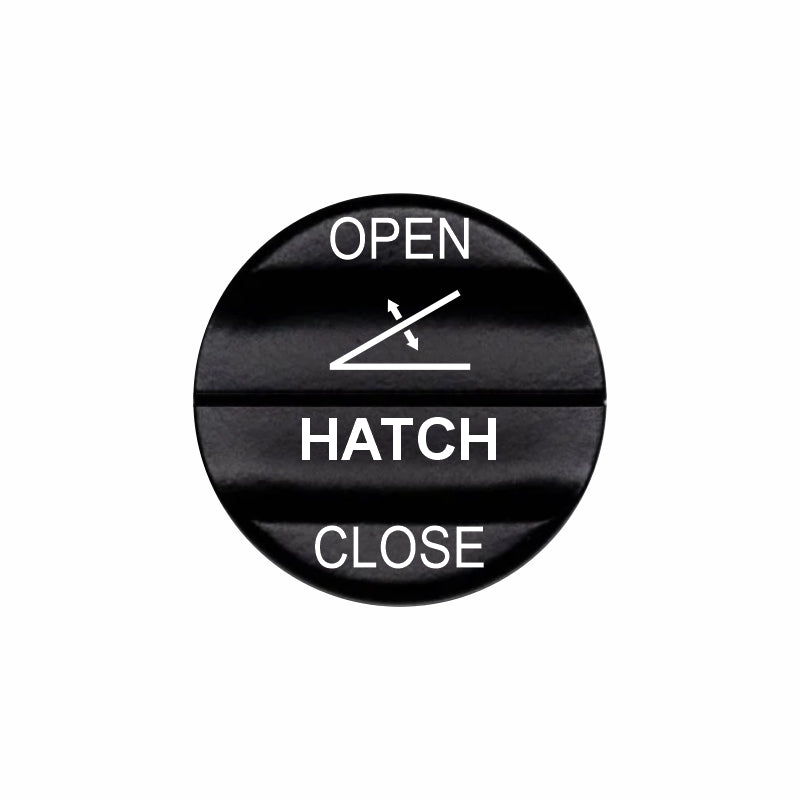

• Actuator Type: 2N1 Compatible P/N: 225M-BW2N1C-_ _ _
• Supports: 10 amps per channel or 20 amps total

Electrical Specifications

• Illumination: Blue (Backlit), Green (A function), Red (B function)
• Voltage Rating: 9VDC – 24VDC
• Current Rating: 20A at 12VDC, 80A surge for 200 ms
• Reverse Polarity Protection: 24VDC
• Initial Contact Resistance: ≤ 10 mΩ
• Overload Protection: ≥120A with flashing white LED indication
• Overload Behavior: Outputs do not function during overload
• Reset Method: Switch is reset by pressing the button

Durability & Performance

• Mechanical Life: 50,000 cycles
• Electrical Life Contact: 10,000 cycles
• Insulation Resistance: 50 MΩ maximum
• Resistance: 1000 MΩ minimum
• Dielectric Strength: 2,000 VAC
• Operating / Storage Temperature: -20°C to +55°C
• Travel: 1.50 mm
• Moisture Protection: IP69K
• Contact Material: Silver alloy
• Actuation Force: 4 N
• Panel Thickness: 1–6 mm
• Mounting Nut Torque: 5–14 Nm

Construction Material

• Body Material: Stainless Steel SS316
• Lens Material: PC material rated to 105°C
• Switch Plug & Dongle: Nylon 6 rated to 105°C
